Application:
Automated stick packaging cartoning line is suitable for powder with good fluidity in food, health care, and pharmaceutical industries such as milk powder, protein powder, medicinal powder, probiotic powder, instant coffee solid beverages, fruit enzyme powder, white sugar, granules, Chinese medicine fine granules, etc.
Packaging Line Composition:

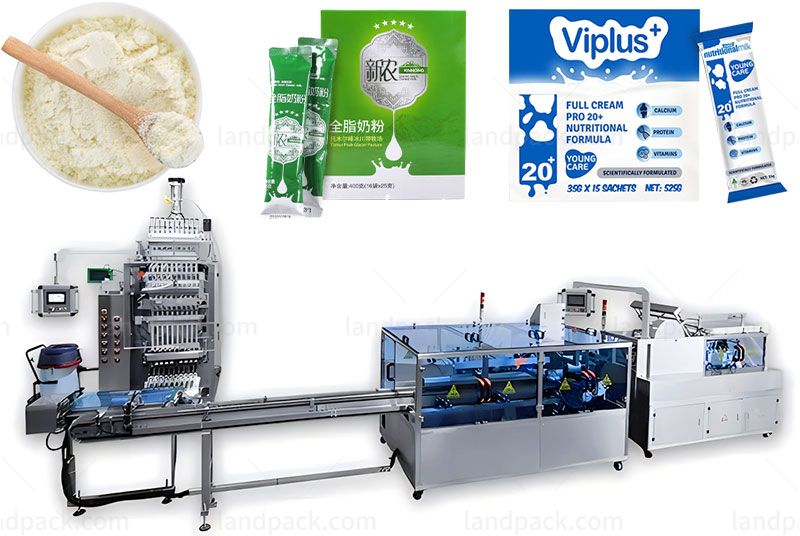

This packaging and boxing system consists of LD-560BK Multi-lane powder and fine granule stick pack packaging machine, a sorting bag equipment and LD200ZH boxing machine. It can realize stick packed packaging into a box.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Automated Multifunctionality: This machine seamlessly performs tasks such as measuring, bag making, sealing, cutting, counting, and product conveyance.
2. Concealed Heat and Moving Parts: The heat-generating components and moving parts are discreetly housed within a protective cover, ensuring safety and efficient operation.
3. Stainless Steel Contact Surfaces: The parts of the machine that come into contact with the product are made of stainless steel. This design complies with the stringent requirements for pharmaceutical and food production.
4. Easy Mobility with Casters: Equipped with casters, the equipment can be effortlessly moved and positioned as needed.
5. Automatic Alarm System: The machine features an automatic alarm system, enhancing safety and preventing material wastage.
6. Efficient Film Usage: By minimizing film waste, this equipment optimizes material usage during the packaging process.
| MULTI-LANE STICK PACK POWDER PACKAGING MACHINE | |
Model | LD560BK |
Lane number | 3-10 Lanes |
Filling Method | 1. Long auger; 2. Short auger; 3. Short auger with cup |
Capacity | Max.40 cycles/min |
Sachet size | L: 50-180mm; W: 20-90mm |
Film width & Thickness | Max.560mm, 0.07-0.10mm |
Sealing type | Back sealing/ Stick bag |
Cutting type | 1.Straight cutting; 2.Zig zag cutting; 3.Round cutting; 4.Die-cut |
Air & Power | 0.8Mpa, 0.8m³/min, 5.5kw |
Dimension & weight | 1685*1300*2005mm; 550kg |
| BOXING MACHINE | |
Model | LD200ZH |
Paper type | 250-400g/²(Boxes need come with pre-fold over) |
Capacity | 30-60 boxes/min |
Box type | Gusseted tongue type; Glue spray type |
Count way | Fixed number type; Numerable type; Manipulator counting |
Boxing way | Orderly type; Unorderly type |
Air & Power | 0.5-0.8Mpa, 0.3m³/min, 220V, 50/60HZ, 2.0KW |
Workflow | Box open - Bag packing - Check weigher - Counting - Boxing- Fold ears - Fold page - Gusseted tongue/Glue spray - Finish |
After receiving your inquiry,We will send you the quotation as soon as possible.
