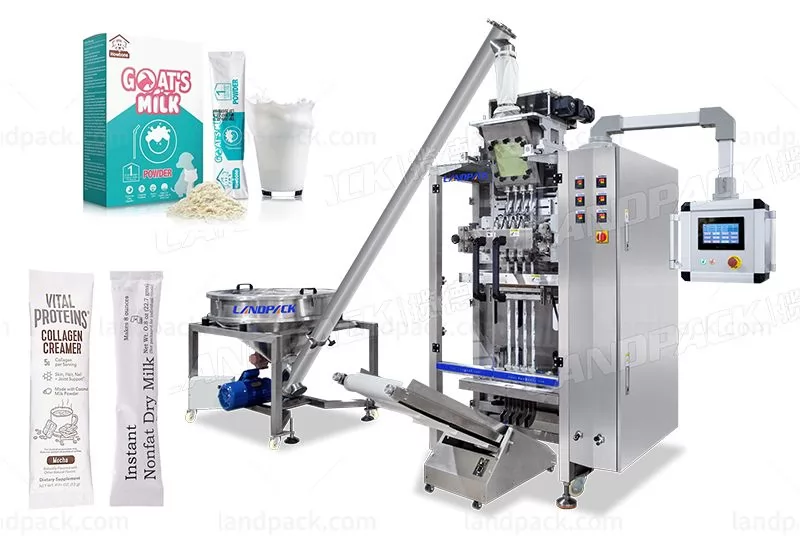

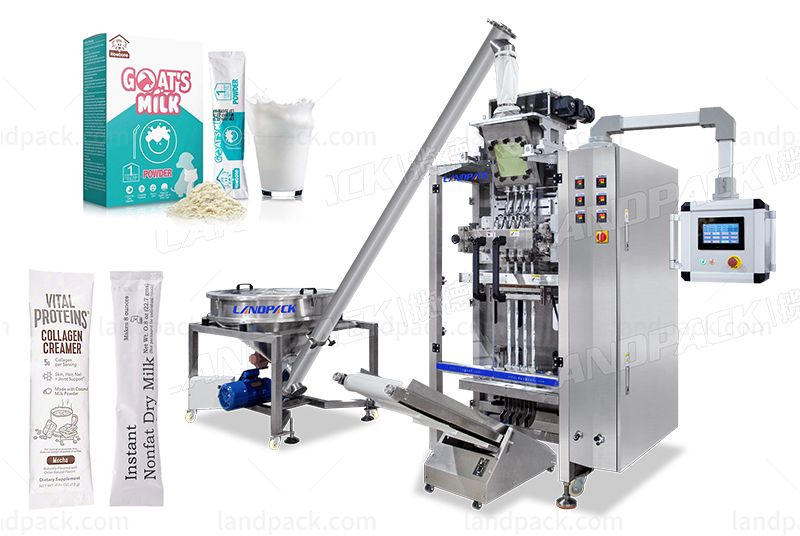

Application:

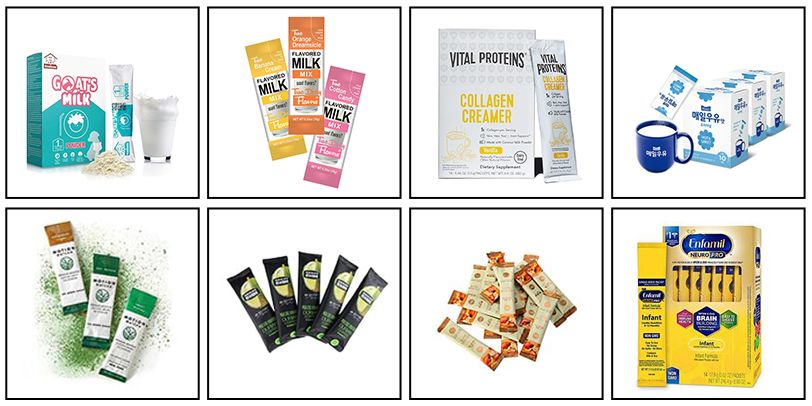

This machine is suitable for various kinds of materials like sugar, coffee granule, coffee powder, milk powder, spice powder, flour, fruits powder, seasoning, chemical medical powder, and liquid, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:
1. PLC control with stable reliable biaxial high accuracy output and color touch screen, bag-making, measuring, filling, printing,cutting , finished in one operation.
2. Separate circuit boxes for pneumatic control and power control. Noise is low, and the circuit is more stable.
3. Film-pulling with servo motor double belt: less pulling resistance, bag is formed in good shape with better appearance, belt is resistant to be worn-out.

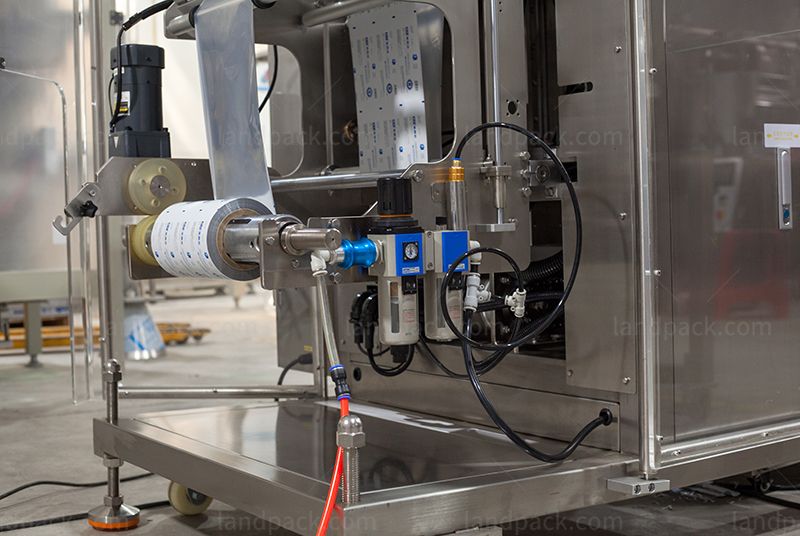

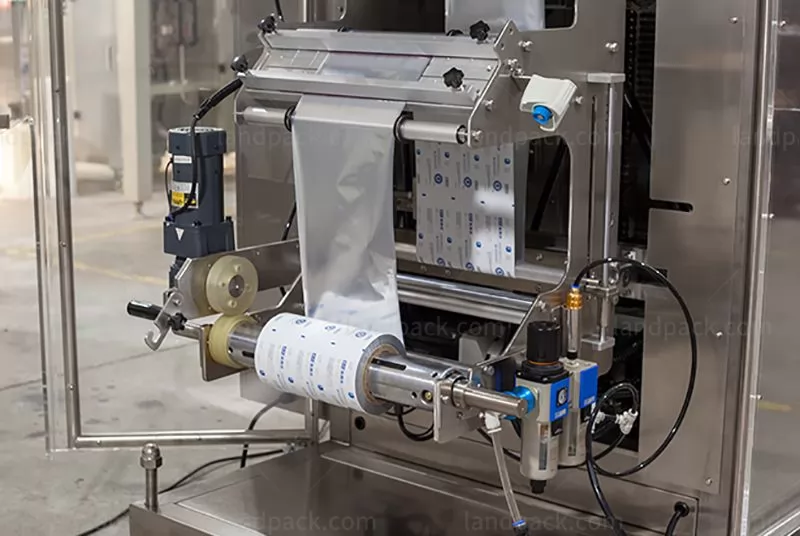

4. External film releasing mechanism: simpler and easier installation of packing film.
5. Adjustment of bag deviation just needed to be controlled by the touch screen. Operation is very simple .
6. Close down type mechanism , defending powder into inside of machine.
Type | LD-420-4L |
Bag length | 30-160mm(L) |
bag width | 10-60mm(W) |
max width of roll film | 460mm |
packing speed | 20-50bag/min/lane |
air consumption | 0.65mpa |
gas consumption | 0.2m3/min |
powder voltage | 380V/220VAC 50HZ |
powder | 2.0KW |
demension | 1100MM(L)*990MM(W)*2100MM(H) |
weight | 560KG |
After receiving your inquiry,We will send you the quotation as soon as possible.
