Application:
It is suitable for packaging materials requiring high measurement accuracy or careful handling, such as milk powder, sugar powder, coffee powder, wheat flour, detergent powder, coconut powder, and spice powder, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:

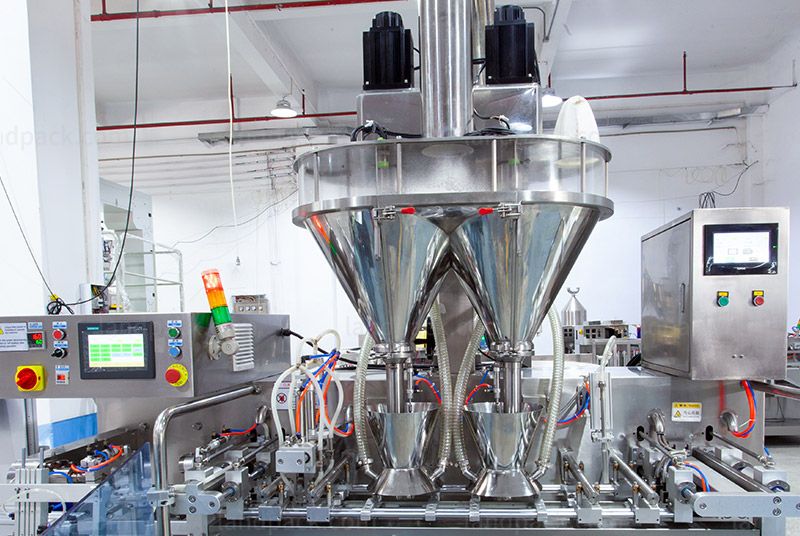

1. Double Auger Filler: Features double filling capability, ensuring faster and more stable filling operations for enhanced production efficiency.
2. Suction Device: Keeps the factory and machine clean by efficiently removing dust and debris during the filling process.

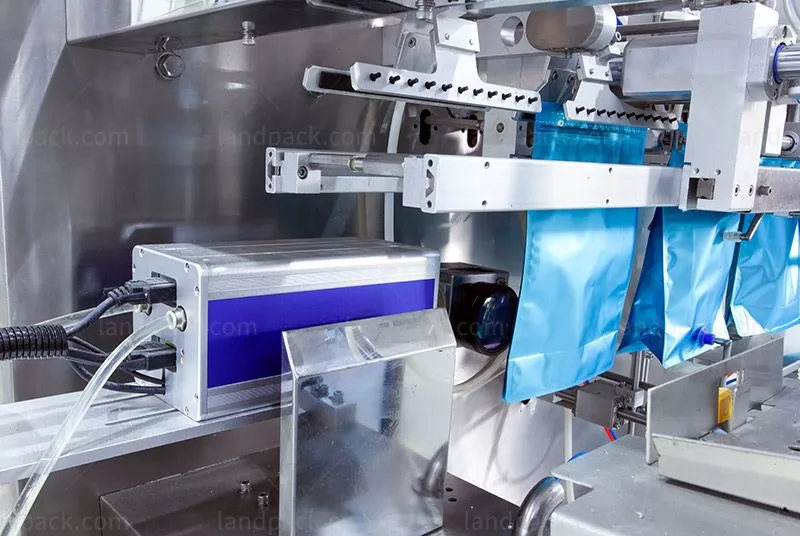

3. Laser Coding: Reduces material loss, offering an environmentally friendly solution with minimal waste.
Workflow:
1. Auger Screw Conveyor Feeding The Material
2. Bag Giving
3. Laser Coding
4. Open The Doypack
5. Filling Into
6. Filling Nitrogen
7. Sealing
8. Output The Finished Products To Finished Product Turntable
9. Finished Product Turntable Tidy Up The Finished Products
Model | LD-SP160 | LDSP-160Y | LDSP-210 | LDSP-260 |
Bag Type | 3-side, 4-side sealing bag, doypack, box Pouch, zipper pouch, stand Up pouch, stand up pouch with hole, kraft paper bag, side gusset bag, etc. | |||
| Bag Size(L*W)mm | 110-230*80-160 | 70-100*110-230 | 100-210*110-320 | 100-260*110-320 |
| Filling Range | 10g-100g | 10g-100g | 10g-1kg | 10g-3kg |
| Packing Speed | 20-45 bags/min | 20-50 bags/min | 20-50 bags/min | 20-50 bags/min |
| Machine Weight | 800KG | 800KG | 900KG | 1000KG |
| Total Power | 2 KW | 2 KW | 2 KW | 2 KW |
| Work Flow | 1. Giving bag, 2. Pick up the bag(coding), 3. Open the bag up and down, 4. Filling, 5. Heating sealing, 6. Output of product | |||
| Dimensions | 1750*1285*1360mm(L*W*H) | 2140*1366*1360mm(L*W*H) | ||
| Collocation | Screw metering, screw elevator | |||
After receiving your inquiry,We will send you the quotation as soon as possible.
