Application:

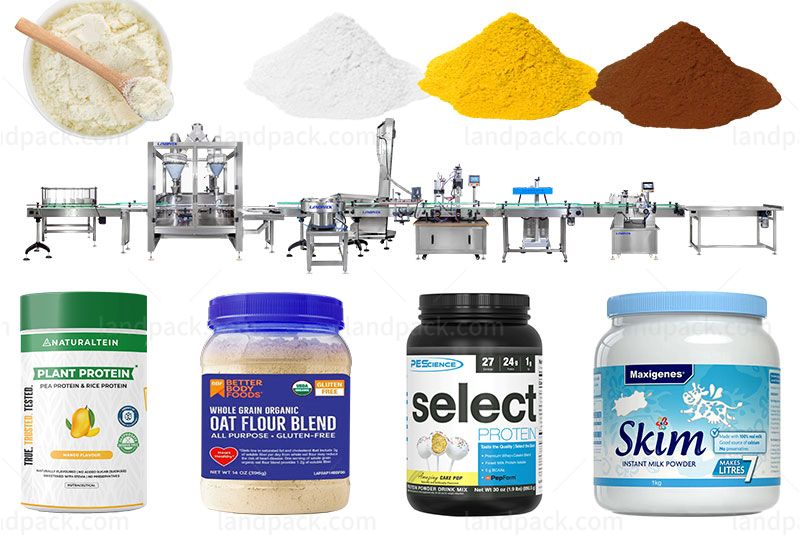

It's widely used in bottle filling, capping, and labeling in various industries, including pharmaceuticals, foodstuffs, cosmetics, and chemicals. Examples include milk powder, protein powder, coffee powder, medicine powder, chemical powder, meal replacement powder, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:
1. Machine frame full SS304, safe and health for foods
2. Fully automatic filling line, saving labor costs and keeping the health and safety of the machine.
3. Two heads auger screw measuring and weighting system, secondary, with high accuracy.
4. Suitable for different bottle sizes, adjustable and stable working
5. Clear coding, beautiful labeling, and closing
6. Easy to operate and convenient to maintain
Workflow:
1. Large volume auger screw feeding conveyor lifting materials

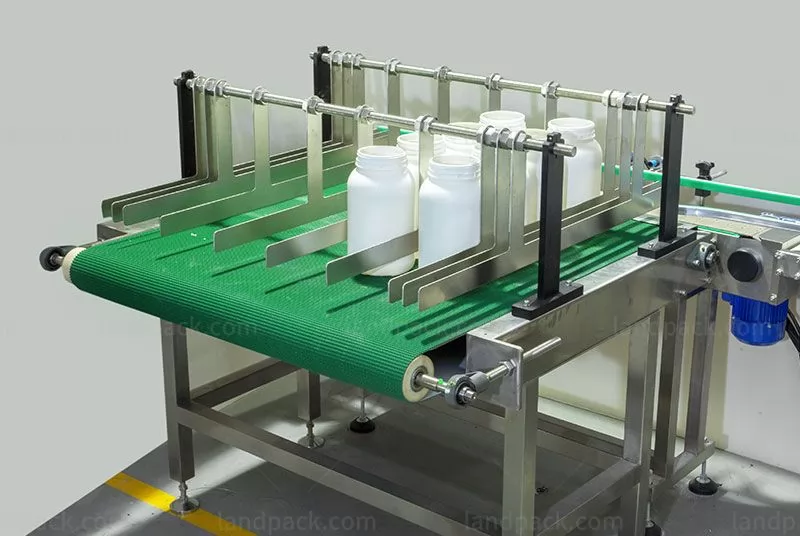

2. Empty bottle feeding belt

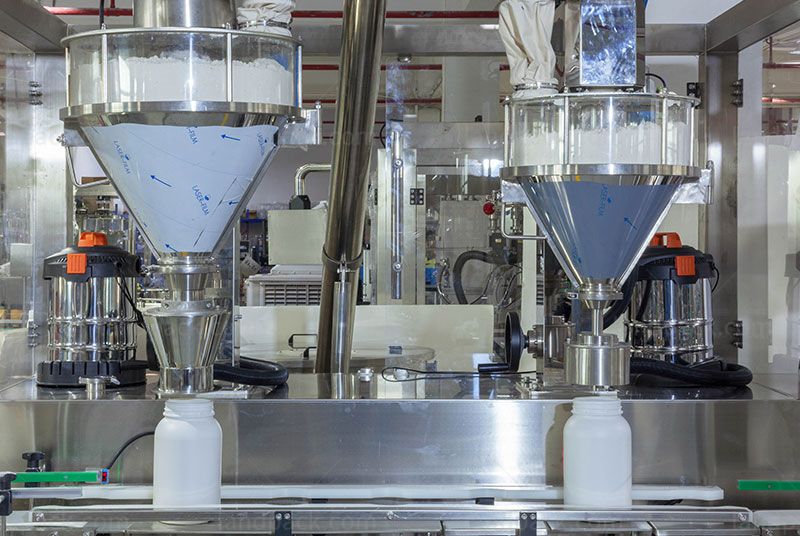

3. Auger screw measuring and filling
4. Screw secondary weighting and filling

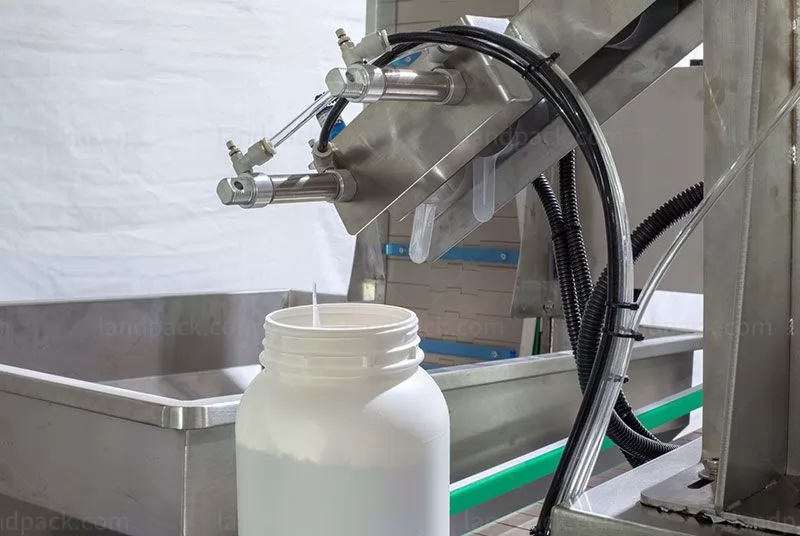

5. Automatic feeding spoon in bottle
6. Automatic feeding and placing caps
7. Servo capping machine
8. Aluminum foil sealing
9. Coding dates on label and sticking label
Bottle Conveyor Feeding Device | |||
Power Supply | 220V/110V, 50-60Hz, 200W | ||
Turntable Diameter | 1000mm（Could be customized） | ||
Suitable Bottle Diameter | 20-450mm | ||
Suitable Bottle Height | 30-450mm | ||
Working Speed | 40-60bottles/min (Could be customized) | ||
Package Size | 1230*1010*1260mm (Could be customized) | ||
Gross Weight | 256kg | ||
Automatic powder weighing filling machine | |||
Mode | LFP-01 (Single Head Powder Filling) | LFP-01 (Single Head Powder Filling) | LFPD-50-30 (Double Head Powder Filling) |
Filling Weight | 10-5000g (Replace screw specifications) | 10-5000g (Replace screw specifications) | 100-2000g |
Bottle diameter | Φ30-Φ140mm (Could be customized) | Φ30-Φ140mm (Could be customized) | Φ60-Φ135m |
Bottle Height | 50mm-200mm (Could be customized) | 50mm-200mm (Could be customized) | 601-260mm |
Capacity | 10-20 bottles/min | 20-40 bottles/min | 10-25 bottles/min |
Measure accuracy | ≤500g, ≤±1%; ≥500g, ≤±0.5% | ≤500g, ≤±1%; ≥500g, ≤±0.5% | 100-1000g, ≤±2g; ≥1000g, ≤±5g |
Power | 2.5KW | 5KW | 4.5KW |
Capping Machine | |||
Model | LDBZ-C (Single heads servo capping) | LDBZ-2C (Double head servo capping) | LDBZ-3C (Three heads servo capping) |
Capacity | 30 bottles/min | 40 bottles/min | 50 bottles/min |
Bottle diameter | Φ25mm-Φ100mm (Could be customized) | ||
Bottle sealing height | 40mm-200mm (Could be customized) | ||
Power | 2KW | 2.5KW | 3KW |
Voltage | 220V, 50HZ | ||
Air pressure | 0.4-0.6Mpa | 0.5-0.7Mpa | 0.7-0.9Mpa |
Weight | 300kg | 350kg | 400kg |
Automatic Aluminum Foil Sealing Machine | |||
Model | LD-ZS(Double Heads Aluminum Foil Sealing) | LF-LB-2000(Single Heads Aluminum Foil Sealing) | |
Applicable bottle diameter | Φ10-200mm (Could be customized) | ||
Applicable bottle height | H:40-300mm（Could be customized） | ||
Speed | 0-30bottle/min | 0-10bottle/min | |
Bottle material | Glass, ceramics, plastics, metals | ||
Voltage | 220V,50HZ | ||
Power | 1500W | 1200W | |
Dimension | 1500*800*1750mm | 1200*600*1550mm | |
Automatic Labeling Machine | |||
Model | LFT-LG-100(Low speed labeling) | LFT-GS-100(High speed labeling) | |
Label length | 20mm～300mm | ||
Label width/height | 20mm～200mm(can be customized) | ||
Bottle width | 30-150mm(can be customized) | ||
Roll Label outer diameter | 300mm | ||
Roll Label inner diameter | 76mm | ||
Accuracy | ±1mm | ||
Label speed | 40-100pcs/min | 60-120pcs/min | |
Conveyor speed | 5～25m/min | 15～20m/min | |
Suitable label type | Adhesive sticker label(transparent label need customized) | ||
Working air pressure | 0.4-0.6Mpa | ||
Voltage | 220V can be customized 4KW | ||
Weight | 350KG | 450KG | |
Overall dimension | 3000mm×1450mm×1950mm | 3050mm×1550mm×1950mm | |
After receiving your inquiry,We will send you the quotation as soon as possible.
