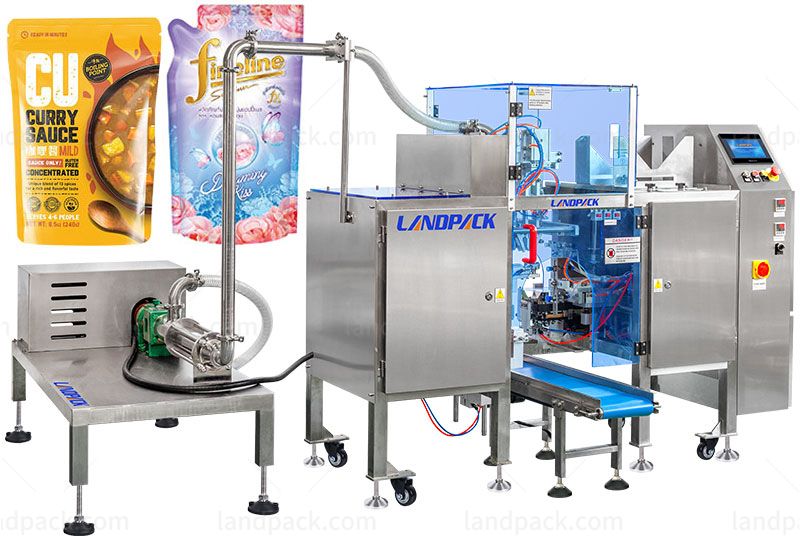

Economic Liquid Premade Stand Up Pouch Doypack Filling Sealing Machine

  • Application
  • Description
  • Parameter
  • Video

Application:

A. Powder Packing Solution

Servo Screw Auger Filler is specialized for powder filling such as nutrients powder, seasoning powder, flour, medicinal powder, etc.

B. Liquid Packing Solution

Piston Pump Filler is specialized for liquid filling such as water, juice, laundry detergent, ketchup etc.

C. Solid Packing Solution

Combination multi-head weigher is specialized for solid filling such as candy, nuts, pasta, dried fruit and vegetable etc.

D. Granule Packing Solution

Linear weigher is specialized for granule filling such as chemical, beans, salt, seasonings etc.

Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packaging Exambers:Economic Liquid Premade Stand Up Pouch Doypack Filling Sealing Machine

1. Easy to operate

2. Automatic checking: no pouch or pouch open error, no fill, no seal, avoid wasting

3. Safety device: Machine stop at abnormal air pressure, heater disconnection alarm

4. Adjustable bag width

5. Glass safety door: It will stop working when you open the door, ensure the safety of operators

6. Low loss of packing materials, high quality of the sealing part, to improved the product specification

7. Different feeding hoppers: for solid, liquid, thick liquid ,powder and so on

8. Bag materials: Suits in extensive range

TypeEconomic Liquid Premade Stand Up Pouch Doypack Filling Sealing Machine
 LDB-200 LDB-300LDB-430
Bag MaterialMulti-layer Composite Premade Bag(e.g.: PET/PE)
Premade bag type3-sides sealing bag, stand-up bag)
Upgraded Bag Type(Need additional purchase
of functional device)
Gusset Bag, Zipper Bag, box bag
(Need additional purchase of functional device
Bag size70mm≤W≤150mm80mm≤W≤300mm80mm≤W≤300mm
70mm≤L≤150mm100mm≤L≤300mm100mm≤L≤430mm
Speed0~60bags/min 0~15bags/min
Sealing TypeStraight grain, pitch is 1mm (Optional reticulate)
Sealing Width 10mm(5--20mm) can be customized
Voltage220V, Single-phase,50/60HZ, 1.2KW
Air Pressure0.65Mpa
Air ConsumptionStandard machine, no additional function
Body Dimension1770*600*1230mm1770*600*1360mm
Packing Dimension1860*710*1550mm1860*710*1650mm
Export non-fumigation wooden case

After receiving your inquiry,We will send you the quotation as soon as possible.
