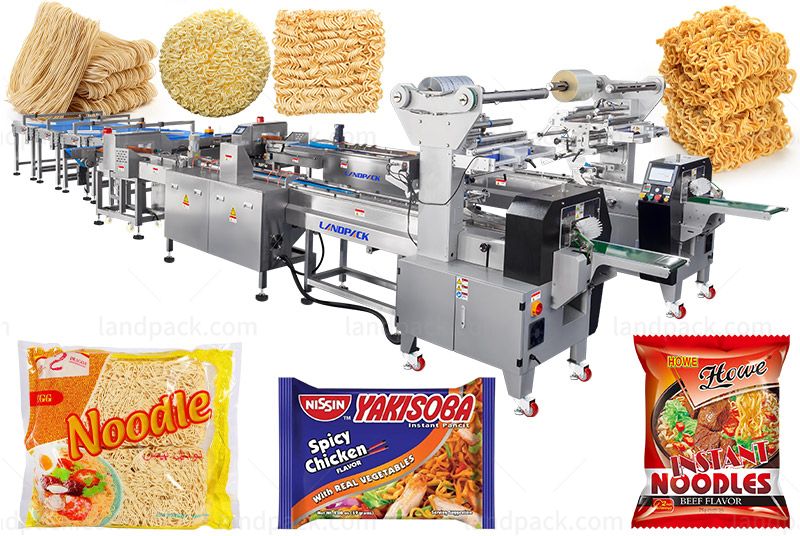

Automatic Instant Noodle Spaghetti Pillow Bag Horizontal 1+2 Feeding Packing Line

Application :
Applicable to high-speed packaging of a variety of noodles, such as instant noodles, vermicelli, ramen noodles, udon noodles, soba noodles, spaghetti, fettuccine, pad thai noodles, dan dan noodles, pho noodles, etc.

Kindly Reminder :
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers :

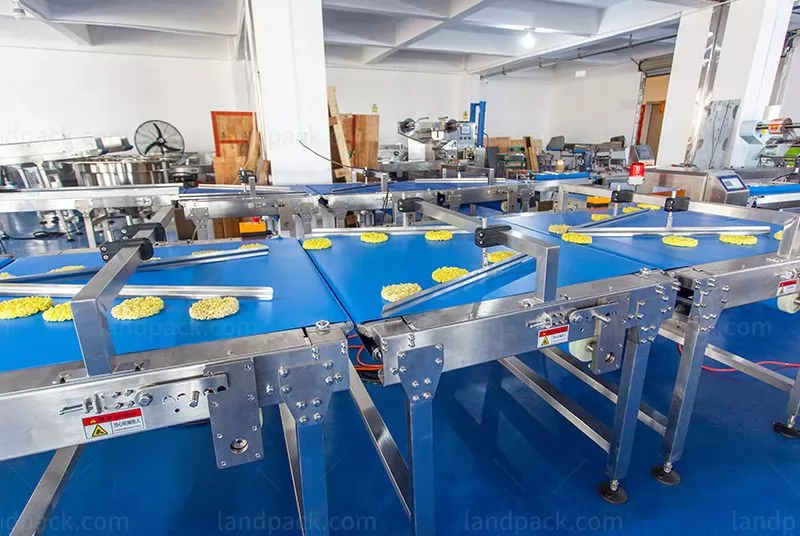

1. Connects directly with the production line to organize and sort instant noodles into two lanes using guiding plates on the main conveyor.

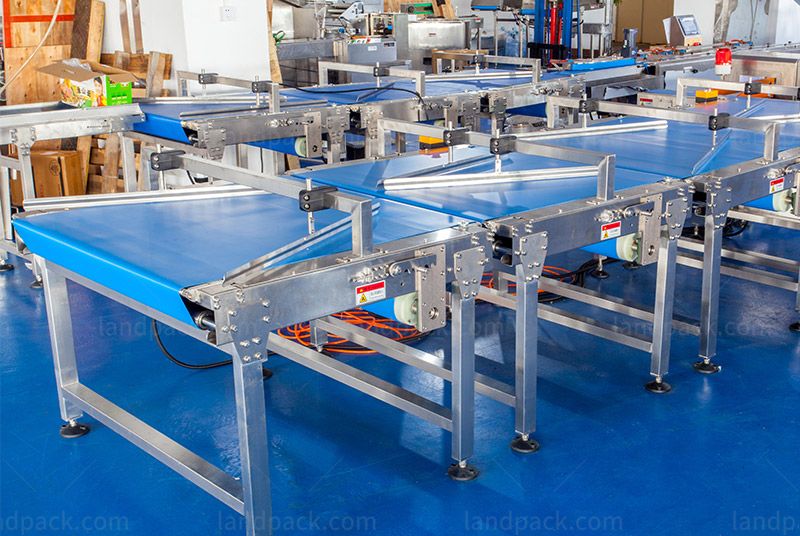

2. Instant noodles are smoothly directed to the corresponding packing machines via 2-way lifting belt conveyors.

3. Integrated metal detector ensures food safety by identifying any contaminants.

4. Independent servo detection system for automatic product tracking, replenishment, and anti-empty packaging to reduce film waste.

5. Three-servo control ensures stable and smooth operation of the high-speed flow wrapping machine.

6. Two-roll film system automatically switches rolls when one runs out, maintaining uninterrupted operation.

Workflow:
1. Connect with the production line
2. Automatic organize and sorting instant noodles
3. Guiding plates to organize instant noodles into two lanes
4. 2-ways conveyors introduce noodles into the corresponding packing machine
5. Detect mental and blowout

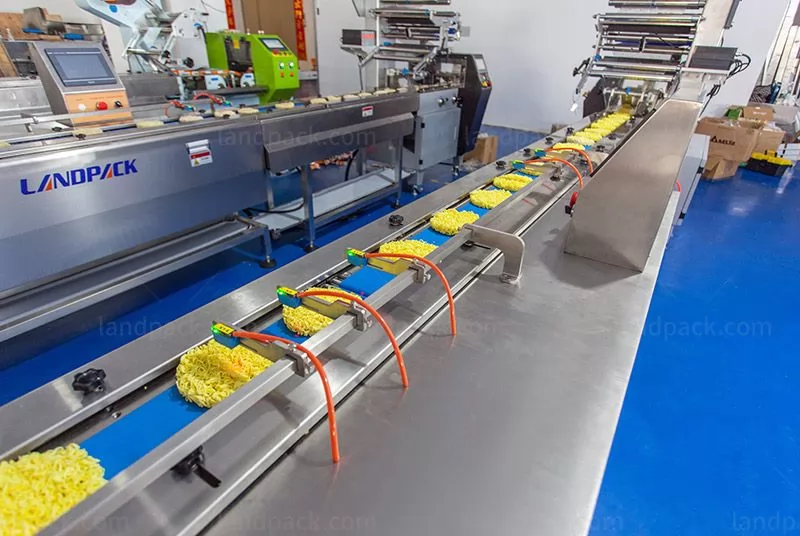

6. Sensor detects noodles
7. Single one feeding and forming bag
8. Printing dates, sealing , cutting and lifting to outlet
