Application :

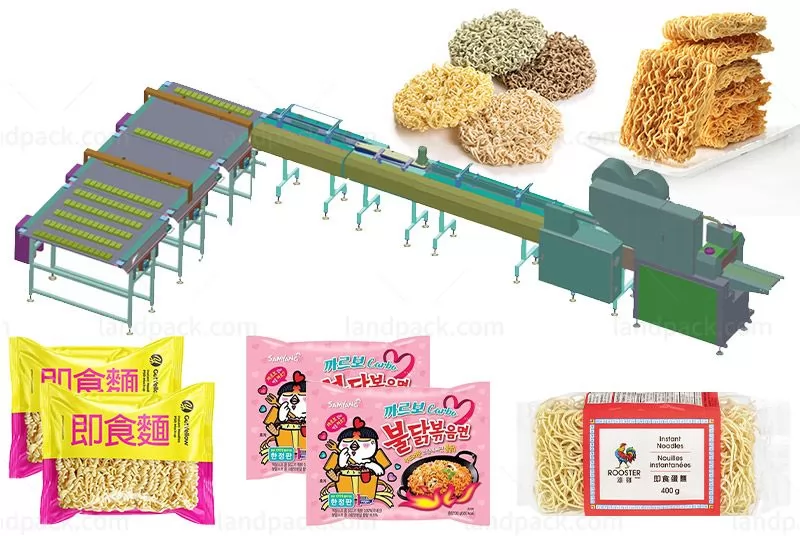

The machine is suitable for packing for the noodles, instant noodles, cookies, biscuit, chocolate , candy , cereal bar such small size and need high speed packing request. The packing line can base on the products size adopt four /three/ two/ one pair cutter to meet the speed request.
Kindly Reminder :
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers :
1. High-Speed Operation: Capable of packing 500-600 noodles per minute, significantly increasing production efficiency.
2. Seamless Integration: The feeding conveyor belt smoothly connects with the production line for continuous operation.
3. Hygienic Design: Easy-to-clean components ensure the highest safety and hygiene standards.

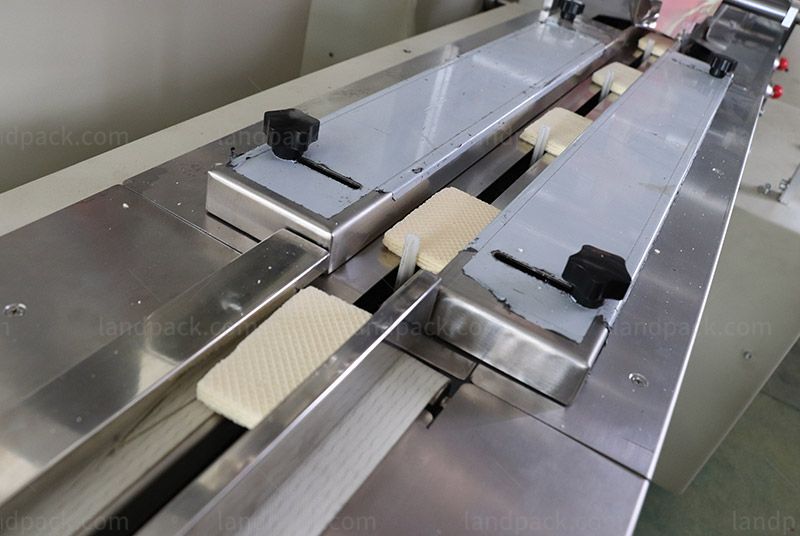

4. Automated Feeding: The stretch conveyor guides noodles into the multi-channel system automatically.

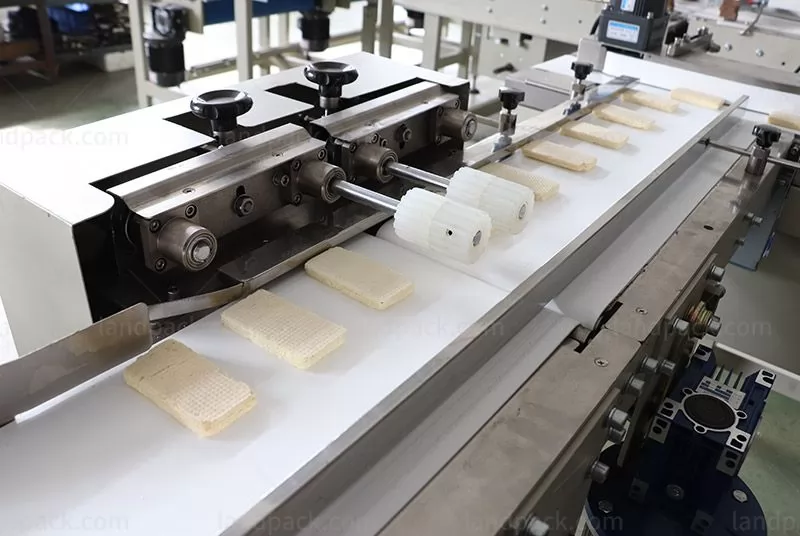

5. Precision Sorting: Equipped with 6 sorting belts and high-precision SICK sensors for accurate product positioning.
6. Efficient Labeling: High-speed ink coding system ensures precise product labeling.
7. Continuous Operation: Designed to minimize downtime, enabling seamless production.

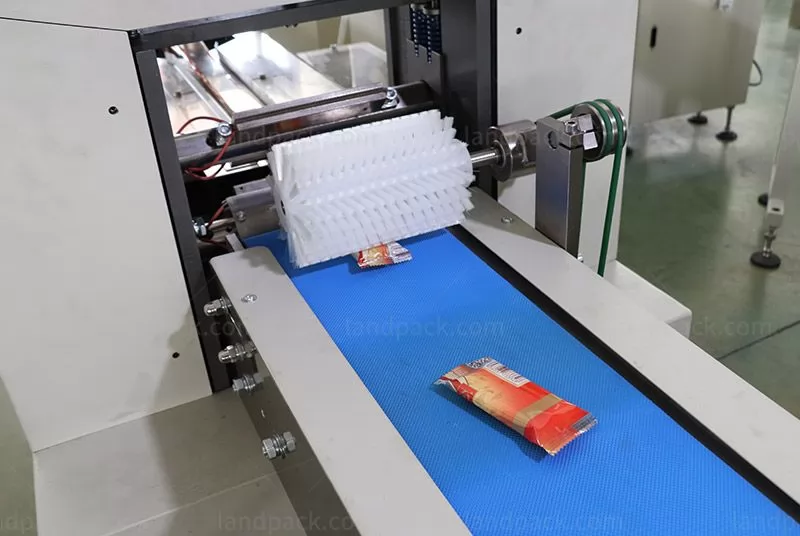

8. Reliable Packaging: Provides high-speed, stable packaging with advanced control features.
| Model | LP-350B |
| Film width | Max.350mm |
| Bag size | 60-190mm(L)*50-160mm(W) |
| Product height | Max 75mm |
| Packing speed | 200-300 bags/min (Depends on material length) |
| Machine size | 7980*3180*1540mm |
| Power voltage | single-phase, AC 220V/60Hz, 5.5kw |
| Material of fame | Machine frame SS201.Contact part: SS304 |
| Packing line | 1+2 / 1+3 |
| Drive | Three servo motor |
| Packaging material | BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/AL/PE, PET/PET, etc. |
| Application | Instant noodles, ramen noodles, chow mein noodles, vermicelli, rice noodles, etc. |
After receiving your inquiry,We will send you the quotation as soon as possible.
