Application:
Suitable for automatic bottling canning and filling of various granular products. such as nuts, peanuts, beans, candy, sunflower seeds, potato chips, popcorn, almonds, dry fruit, vegetable salad, frozen food, jelly, biscuits, chocolate, filbert, corn, pet food, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Double Rotary Filling Machine: Designed for high-speed filling operations, maximizing production efficiency.
2. Metal Detector Integration: Ensures compliance with food safety standards by detecting metal contaminants, making it more suitable for food-related applications.
3. Nitrogen Injection Device: Helps extend the shelf life of food products by reducing oxygen levels inside the packaging.

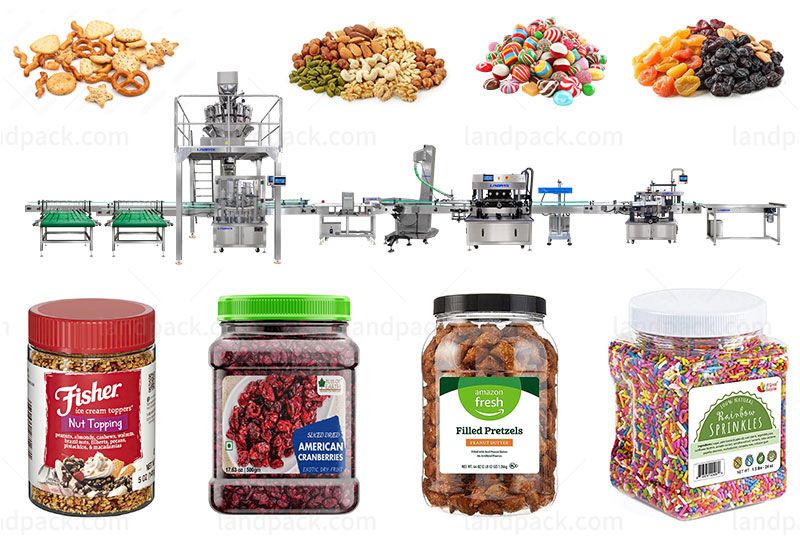

Workflow:
1. Bottle Feeder
2. Double Rotary Filling Machine
3. Metal Detector
4. Nitrogen Filling
5. High Speed Capping Machine
6. Aluminum foil sealing machine
7. Double-Side Labeling Machine
8. Collection
Automatic Bottle feeder | |||||
Machine Model | LD-LP800N | ||||
| Power Supply | 220V/110V, 50-60Hz, 200W | ||||
Turntable Diameter | 800mm | ||||
| Suitable Bottle Diameter | 40-130mm | ||||
| Suitable Bottle Height | 30-200mm | ||||
Working Speed | 40-60 bottles/min(depending on bottle size) | ||||
Package Size | 1230*1010*1260mm | ||||
Gross Weight | 141kg | ||||

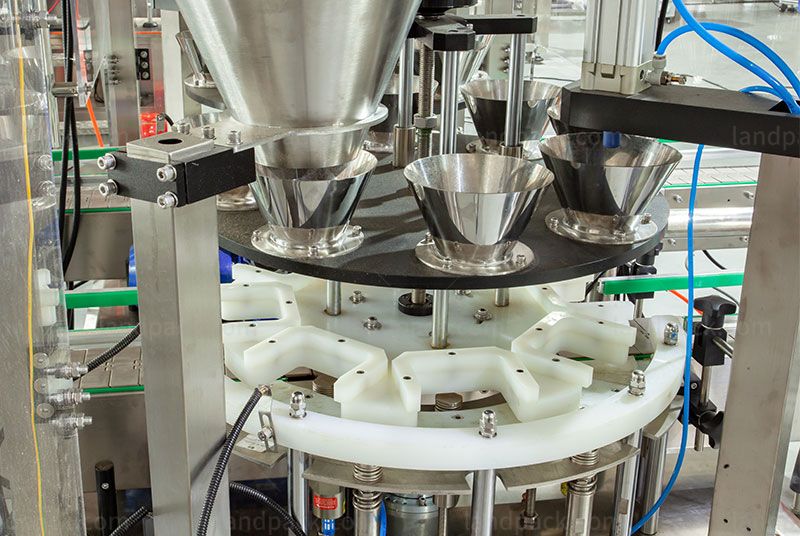

Multi- heads granules weighing double heads rotary filling machine | |||||
Model | LD-GZJ200M-R(double turntable filling) | LD-GZJ100M-R(Single turntable filling) | |||
Material | 304# Stainless steel | ||||
Applicable heigh | 50-200mm (customized according to Bottle size) | ||||
Filling speed | 30-50 cans per minute | 10-20 cans per minute | |||
Air source | 0.6-0.8Mpa | 0.3-0.5Mpa | |||
Voltage | 220V, 50HZ | ||||
Power | 2.5KW | 1.5KW | |||
N.W./G.W. | 200/320KGS | 100/220KGS | |||
Size | 2000*1000*1400mm | 2000*500*1400mm | |||
Weight detector | |||||
Model | LD10 | LD100 | LD201 | LD401 | LD1000 |
Weight Range | 10-99g | 100-200g | 201-400g | 401-999g | 1000-10000g |
Rate | 65bags/min | 60bags/min | 50bags/min | 45bags/min | 40bags/min |
| Precision | ±0.5g | ±1g | |||
Minimum scale | 0.1g | ||||
| Predesign pattern | 10kinds | ||||
Size | 1050*681*1260mm | ||||
Voltage | 220V | ||||
Power | 300W | ||||
High speed capping machine | |||||
Model | LFX-GS-150(Eight wheel capping) | LFX-GS-250(Six wheel capping) | |||
Capacity | 40-100Bottles/min | 30-80Bottles/min | |||
Bottle cap diameter | Φ18mm-Φ80mm（Could be customized） | Φ18mm-Φ80mm（Could be customized） | |||
Bottle diameter | Φ35mm-Φ140mm（Could be customized） | Φ35mm-Φ140mm（Could be customized） | |||
Bottle sealing height | 38mm-300mm（Could be customized） | 38mm-300mm（Could be customized） | |||
Power | 2KW | 1.5KW | |||
Voltage | 220V, 50HZ | ||||
Air pressure | 0.6-0.8Mpa | 0.5-0.7Mpa | |||
Weight | 350kg | 300kg | |||
Dimensions | H3120*W1544*L2122 | H3100*W1244*L2122 | |||
Aluminum foil sealing machine | |||||
Model | LD-ZS(Double Heads Aluminum Foil Sealing) | LF-LB-2000(Single Heads Aluminum Foil Sealing) | |||
Applicable bottle diameter | Φ10-200mm（Could be customized） | Φ10-200mm（Could be customized） | |||
Applicable bottle height | H:40-300mm（Could be customized） | H:40-300mm（Could be customized） | |||
Speed | 0-30 bottles/min | 0-10 bottles/min | |||
Bottle material | Glass, ceramics, plastics, metals | ||||
Voltage | 220V,50HZ | ||||
Power | 1500W | 1200W | |||
Dimension | 1500*800*1750mm | 1200*600*1550mm | |||

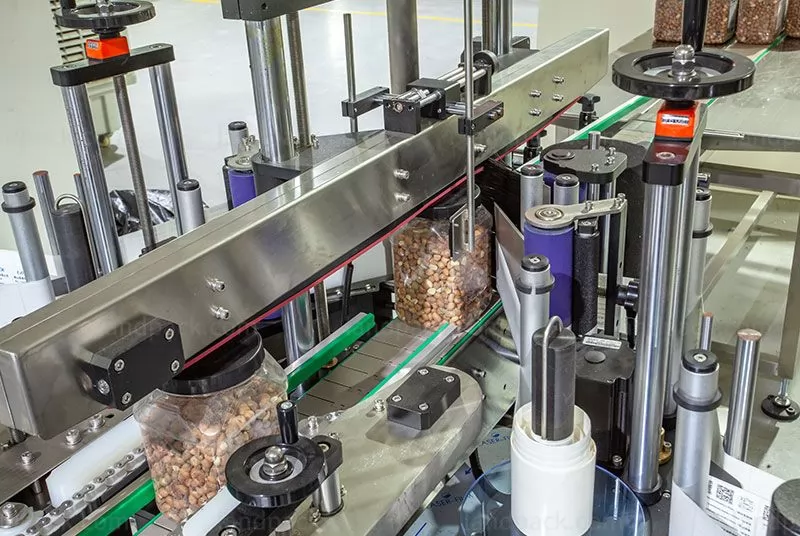

Automatic labeling machine | |||||
| Model | LFT-SM-200C(double heads labeling) | LFT-SM-100C(Single heads labeling) | |||
Labeling speed | 10-40Bottles/min | 5-20Bottles/min | |||
Labeling accuracy | ±1mm | ||||
Label maximum width | 200mm（Could be customized） | 150mm（Could be customized） | |||
The size of the object being attached | Height≤400mm; Thickness≤100mm（Could be customized） | ||||
Label ID | Φ76.2mm | Φ25.4mm | |||
Label OD | MaxΦ330mm | MaxΦ230mm | |||
Voltage | 220V, 50HZ | ||||
Power | 3.5KW | 2.5KW | |||
Weight | 500kg | ||||
Dimension | L3002*W1478*H1810mm | L2950*W1400*H1810mm | |||
After receiving your inquiry,We will send you the quotation as soon as possible.
