Application:
Suitable for packing granule material into doypack premade pouch, such as nuts, cashews, peanuts, candy, beans, granular medicine, seeds, chemical seasoning, melon seeds, pistachios, pesticides, fertilizer, feed, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

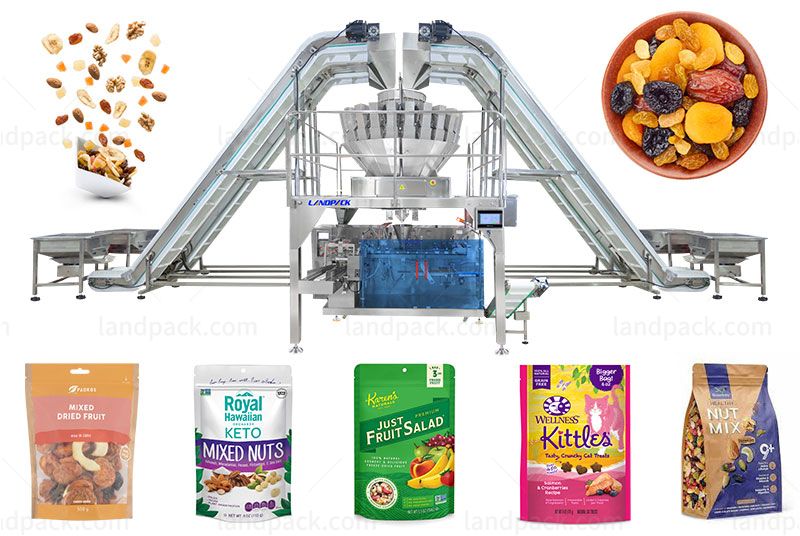

1. Customized Horizontal Premade Pouch Packing Solution: Tailored for specific packaging needs.
2. Four Slope Conveyor Belts: Feeds four types of materials, washable with low-pressure water.

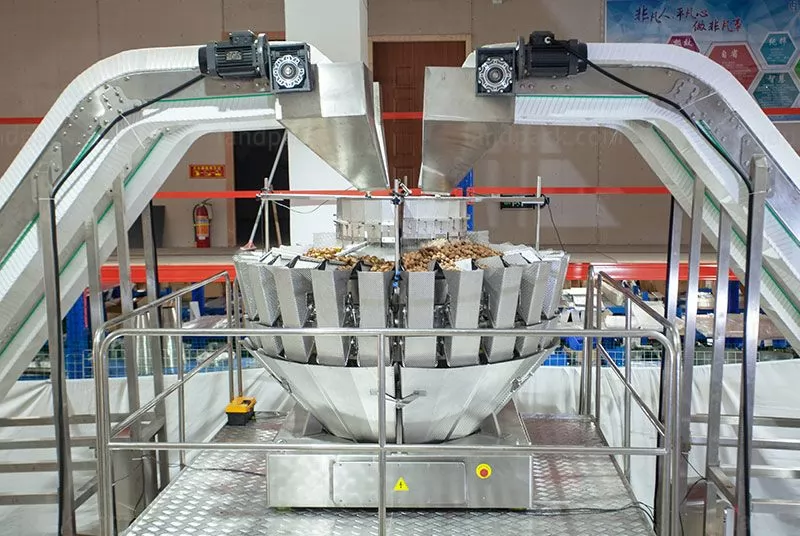

3. 24-Head Weigher: Independently weighs and discharges four materials simultaneously.
4. Horizontal Bag Dispensing Station: Handles premade zipper pouches.
5. Ribbon Date Printer: Prints up to three lines of text.

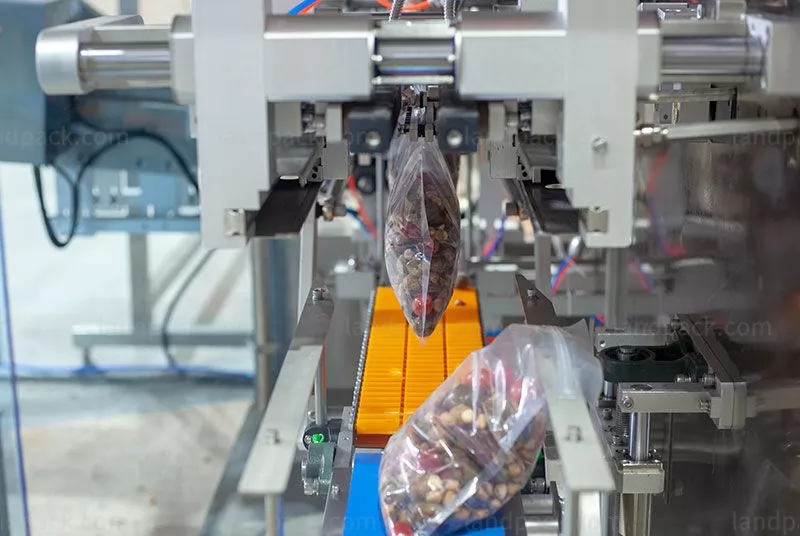

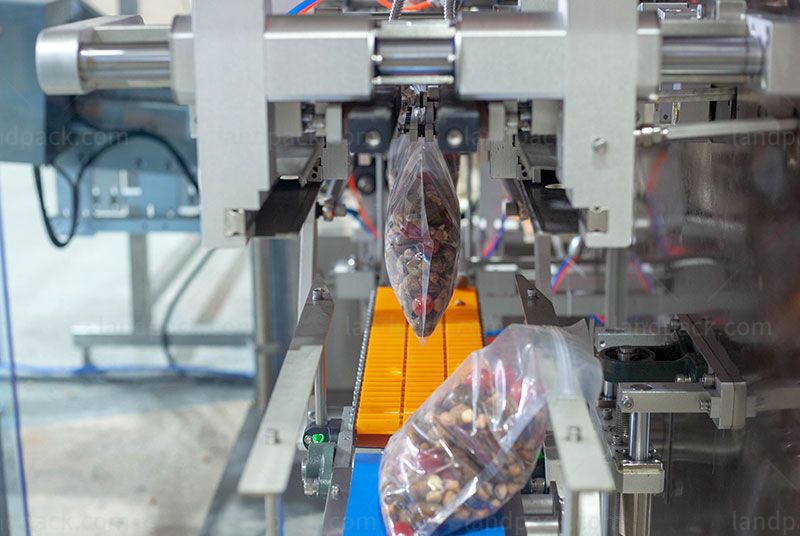

6. Zipper Pouch Opener: Efficiently opens zipper pouches.

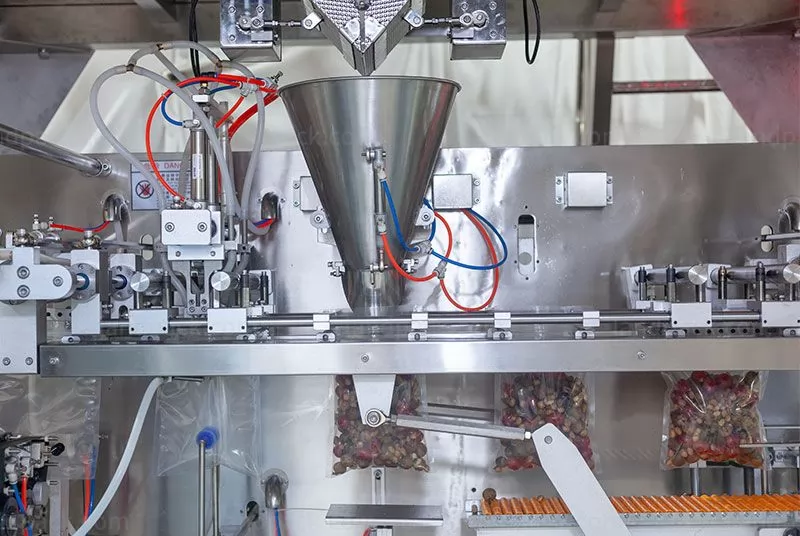

7. Filling Hopper: Features a no-bag, no-filling mechanism.
8. Sealing Device: Includes an empty-bag, no-sealing function.
9. Conveyor Belt Outlet: Transports finished products out.
| Type | LDSP-160 | LDSP-160Y | LDSP-210 | LDSP-260 |
| Bag Type | 3-side, 4 side sealing bag, stand-up bag, handbag, spout bag, zipper bag, compound bag, etc. | |||
| Bag Size | 110-230mm*80-160mm(L*W) | 70-100mm*110-230(L*W) | 100-210mm/110-320mm（L*W） | 100-260mm/110-320mm（L*W） |
| Filling Range | 10g-100g | 10g-100g | 10g-1kg | 10g-3kg |
| Packing Speed | 20-45bags/min(speed is determined by the product filling quantity) | 25-50bags/min(speed is determined by the product filling quantity) | 20-50bags/min (speed is determined by the product filling quantity) | 20-50bags/min (speed is determined by the product filling quantity) |
| Machine Weight | 800KG | 800KG | 900KG | 1000KG |
| Total Power | 2.0KW | 2.0KW | 2.0KW | 2.0KW |
| Work Flow | 1. Giving bag, 2. Pick up the bag(coding), 3. Open the bag up and down, 4. Filling, 5. Heating sealing, 6. Output of product | |||
| Dimensions | 1750mm*1285mm*1360mm(L*W*H) | 2140mm*1366mm*1360mm(L*W*H) | 2140mm*1366mm*1360mm(L*W*H) | |
| Collocation | Screw metering, screw elevator | |||
After receiving your inquiry,We will send you the quotation as soon as possible.
