Application:
Applied for packing various kinds of granular by premade pouch and doypack, such as groundnut, peanut, snacks, chocolate, nuts, seeds, potato chips, peanut, pet food, dried fruit, frozen dumplings, biscuits, corn, hardware, plastic, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Examples:
1. Mini doypack machine with compact design to pack heavy capacity;
2. Servo motor driven for reliable performance;

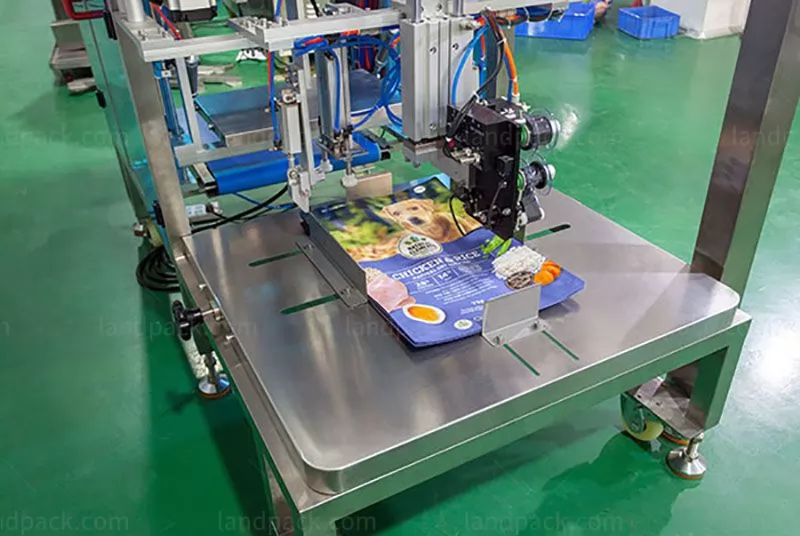

3. Bag giving station with date printer;
4. Zipper opener device;

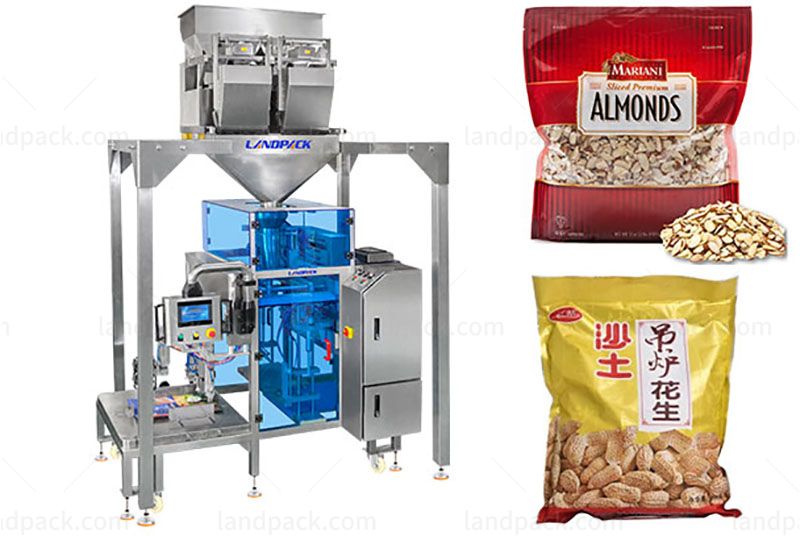

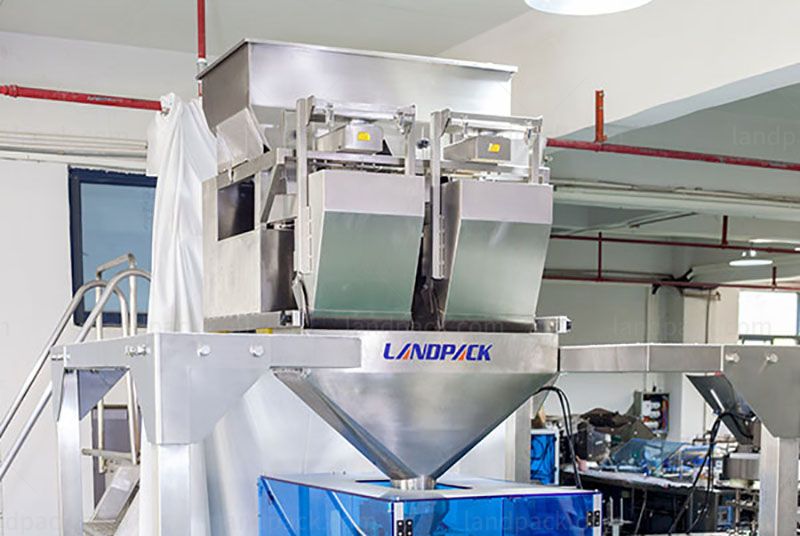

5. 2 heads weigher as weighing system;
6. Auto adjust bag width size for easy operation;
7. Automatic breakdown detection and solution is displayed on the screen clearly;

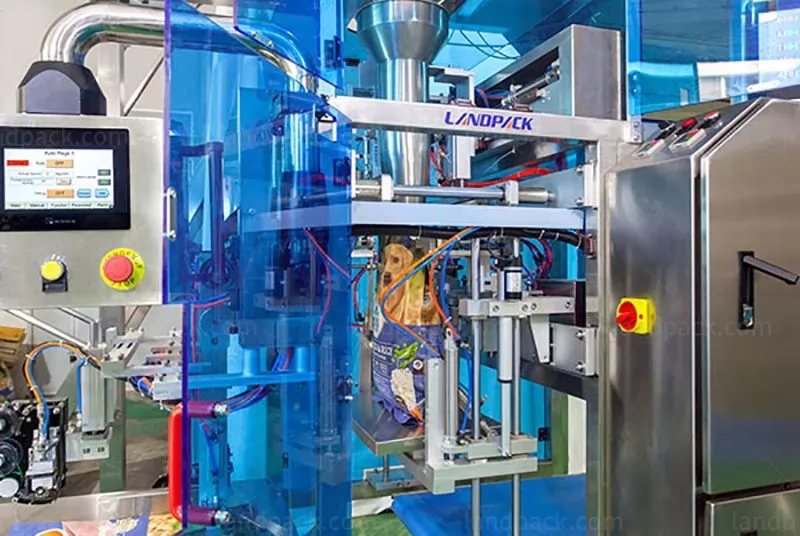

8. 7" User's friendly H.M.I. ensure high efficiency performance;
9. Various option functions are available as per request.
Type | Low Cost Mini Doypack Premade Pouch 5-15kg Granular Packing Machine | ||
LDB-200 | LDB-300 | LDB-430 | |
Bag Material | Multi-layer Composite Premade Bag(e.g.: PET/PE) | ||
Premade bag type | 3-sides sealing bag, stand-up bag) | ||
Upgraded Bag Type | (Need additional purchase of functional device) | Gusset Bag, Zipper Bag, box bag (Need additional purchase of functional device | |
Bag size | 70mm≤W≤150mm | 80mm≤W≤300mm | 80mm≤W≤300mm |
70mm≤L≤150mm | 100mm≤L≤300mm | 100mm≤L≤430mm | |
Speed | 0~60bags/min | 0~15bags/min | |
Sealing Type | Straight grain, pitch is 1mm (Optional reticulate) | ||
Sealing Width | 10mm(5--20mm) can be customized | ||
Voltage | 220V, Single-phase,50/60HZ, 1.2KW | ||
Air Pressure | 0.65Mpa | ||
Air Consumption | Standard machine, no additional function | ||
Body Dimension | 1770*600*1230mm | 1770*600*1360mm | |
Packing Dimension | 1860*710*1550mm | 1860*710*1650mm | |
Export non-fumigation wooden case |
After receiving your inquiry,We will send you the quotation as soon as possible.
