Application:

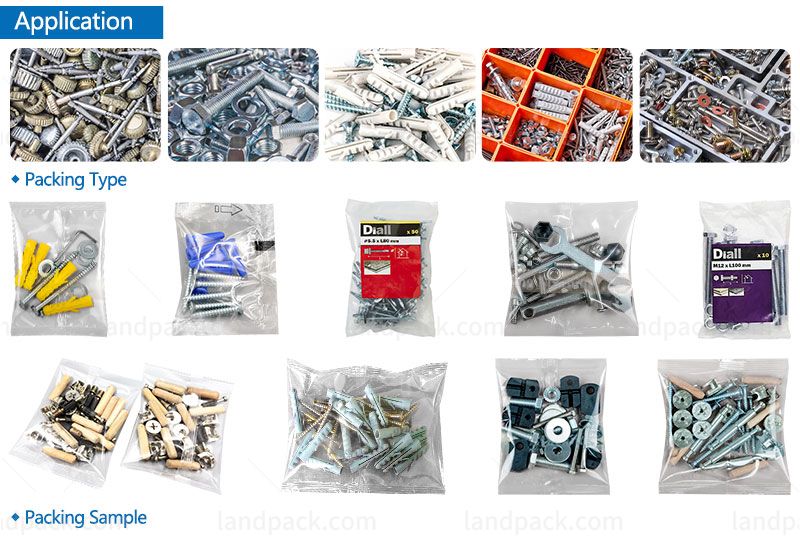

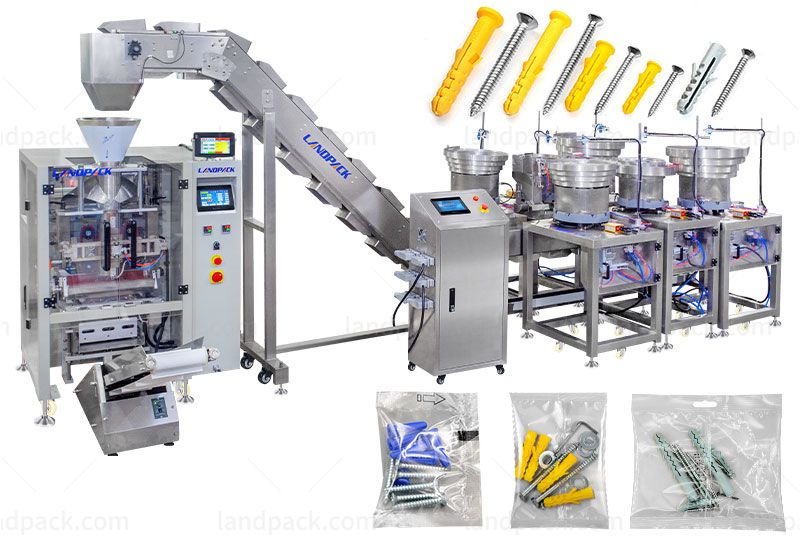

Full automatic multi-granule material counting packing line is suitable for various hardware parts and plastic parts. For example hardware parts, nuts, bearings, bolts, plastic parts, screws, fasteners, bearings, mixed nuts, pet food, frozen food, candy, dry fruit, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:

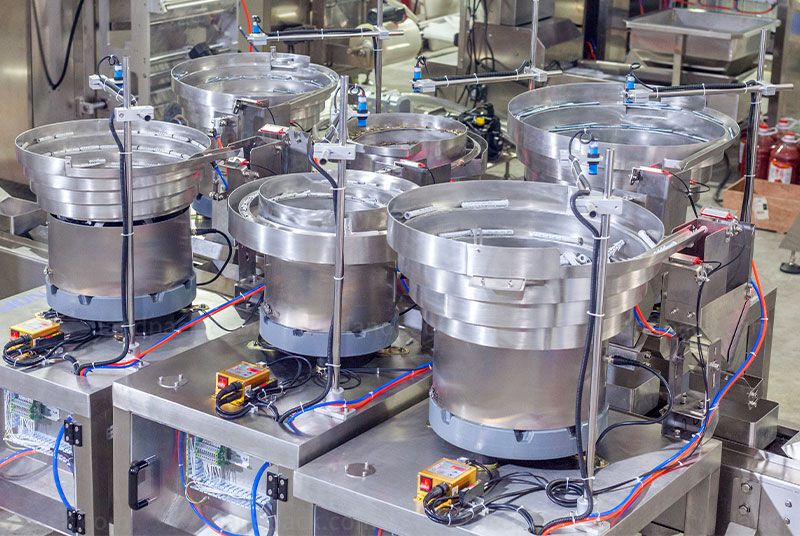

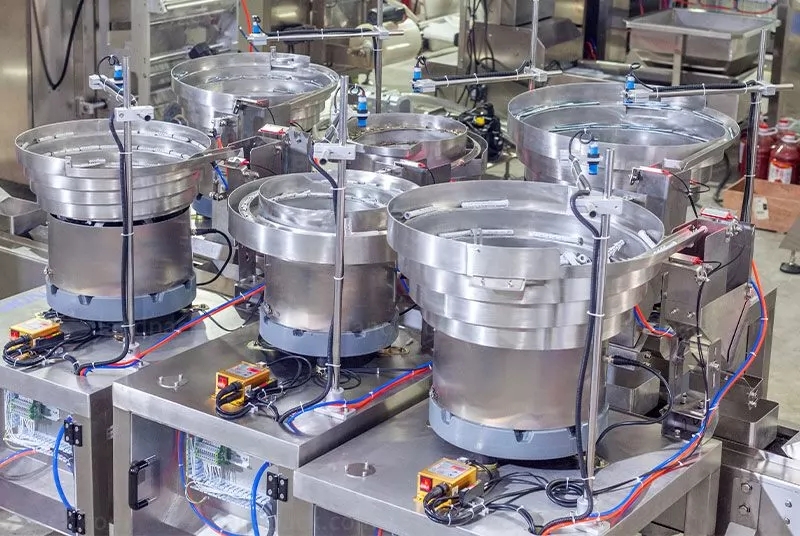

1. Vibration bowl counting, the quantity can be adjusted.
2. Can be packaged separately or mixed with 6 different hardware packaging.
3. No material, the machine will stop automatically.
4. No material will alarm, can check by touch screen.
Model | LD-420 | LD-520 | LD-720 | LD-900 |
Film width | Max.420mm | Max.520mm | Max.720mm | Max.900mm |
Bag length | 80-300mm | 80-350mm | 100-500mm | 100-600mm |
Bag width | 60-200mm | 100-250mm | 180-350mm | 260-430mm |
Film roll diameter | Max.320mm | Max.320mm | Max.320mm | 400mm |
Packaging rate | 5-60 bags/min | 5-60 bags/min | 5-55 bags/min | 5-20 bags/min |
Range of measurement | 150-1500ml | 2000ml | 4000ml | 1-25L |
Film thickness | 0.04-0.08mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
Power | 220V, 50/60Hz, 2kw | 220V, 50/60Hz, 3kw | 220V, 50/60Hz, 3kw | 220V, 50/60Hz, 4.5kw |
Machine size(L*W*H) | 1217*1015*1343mm | 1488*1080*1490mm | 1780*1350*2050mm | 2305*1685*2725mm |
Machine quality | About 650kg | About 680kg | About 750kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
