Application:
This machine is suitable for the packaging of medicine, cosmetics, food, and chemical products, such as paste, olive oil, ketchup, honey, oral liquid, essential oil, eye cream, fertilizer, pesticide, etc.
Packaging Material:
Polyester, polyethylene, polyester, aluminized, polyethylene, polyester, aluminum foil, polyethylene, paper, polyethylene, nylon, and other heat-sealing composite materials.
Kindly Reminder:
Please tell us the following information when you send us an inquiry. Based on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Your product
2. Filling Range
3. Bag/sachet/foil bag material
4. Bag/sachet/foil bag dimension

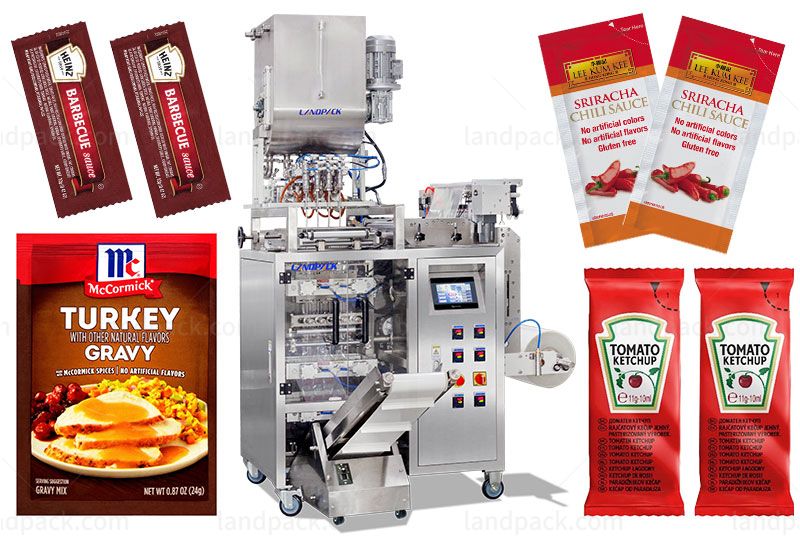

Packaging sample:
1. Adopt a high-precision film walking system, PLC program control, advanced touch man-machine interface, and photoelectric automatic positioning, and tracking.
2. Simple operation and perfect structure can greatly improve production efficiency and reduce labor costs.
3. High production efficiency, the speed of 4 rows can reach 350-500 packs per minute, which improves the production capacity and saves manpower.
4. The high degree of automation, filling, feeding, printing batch number, cutting and tearing, finished bag output once, quick and convenient adjustment
5. Accurate measurement, high packaging efficiency, compact structure, low noise, and long service life
6. The appearance of the machine conforms to the European and American markets, and the body is stable (the whole machine);
Model | LD-480Y | LD-720Y | LD-960Y |
Track Number | 4-6 Track | 4-10 Track | 4-12 Track |
Filling Method | 1. Piston pump; 2.Peristaltic Pump | ||
Capacity | Max.40 cycles/min | ||
Sachet Size | L: 45-120mm; W: 35-60mm | L: 45-120mm; W: 35-90mm | L: 45-120mm; W: 35-120mm |
Film Width & Thickness | Max.480mm; 0.07-0.1mm | Max.720mm; 0.07-0.1mm | Max.960mm; 0.07-0.1mm |
Sealing Type | 4 sides sealing | ||
Cutting Type | 1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting | ||
Air & Power | 0.8 mpa, 0.8m³/min, 2.8kw | 0.8 mpa, 0.8m³/min, 4.1kw | 0.8 mpa, 0.8m³/min, 5.5kw |
Size | 950*1470*1750mm | 1153*1654*1750mm | 1415*1686*2130mm |
Weight | 300kg | 400kg | 500kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
