Application:
This filling machine series are suitable for filling and capping of various paste and liquid products, and are widely used in food, daily chemical medicine and other fields.
Packaging Material:
Glass, Metal, Paper, Plastic, Wood, Other
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:
The equipment has strong compatibility, and can quickly adjust and replace bottles of different shapes and specificationswithout replacing parts, which can meet the production requirements of multiple varieties and specifications
PLC control ,touch bottle operatation ,simple and convenient operation.
The use of internatioal famouse brand electrical components, performance and stability.
User can adjust filling range, the materials is not enough in hopper, the computer will give the feeding pump signal to
addmaterial by level sensor. When the material is full, the pump will stop automatically.
Machine body is made by 304 stainless steel, easy to clean, machine is full compliance with GMP requirements.

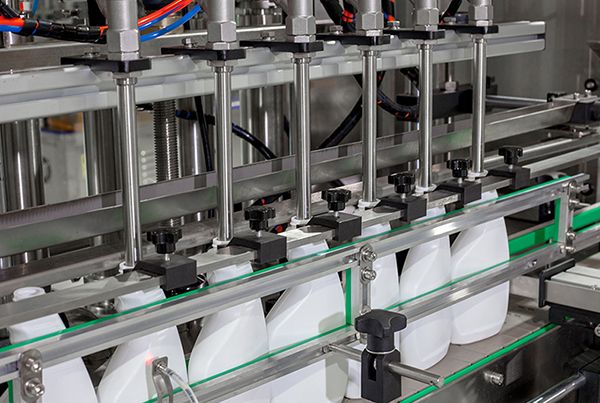

Peristaltic pump or piston pump filling system, measuring precision, convenient manipulation.
| Model | LD-LZF06 |
| Heads of filling | 6 |
| Production capacity(1L) | ≤20-40pcs/min |
| Flat bottles(mm) | 20-250ml,50-500ml,100-1000ml |
| Measure precision | ±1% |
| Compressed air pressure | 0.6-0.8Mpa |
| Motor power | 2.5KW |
| Overall dimension (L*W*H) | 4000*1350*2100 |
| Weight | ≤700KG |
| Remark | We supply customized service |
