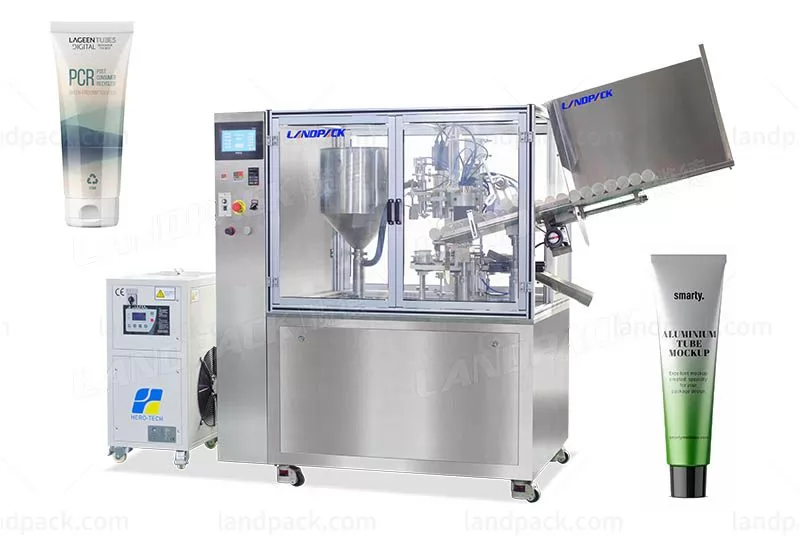

Cosmetic Paste Liquid Tube Filling And Sealing Machine

  • Application
  • Description
  • Parameter
  • Video

Application:

Commonly used in the filling and sealing of aluminum tubes, plastic tubes, and composite tubes in the cosmetics, pharmaceutical, food, adhesive and other industries.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packaging Exambers:应用图.jpg

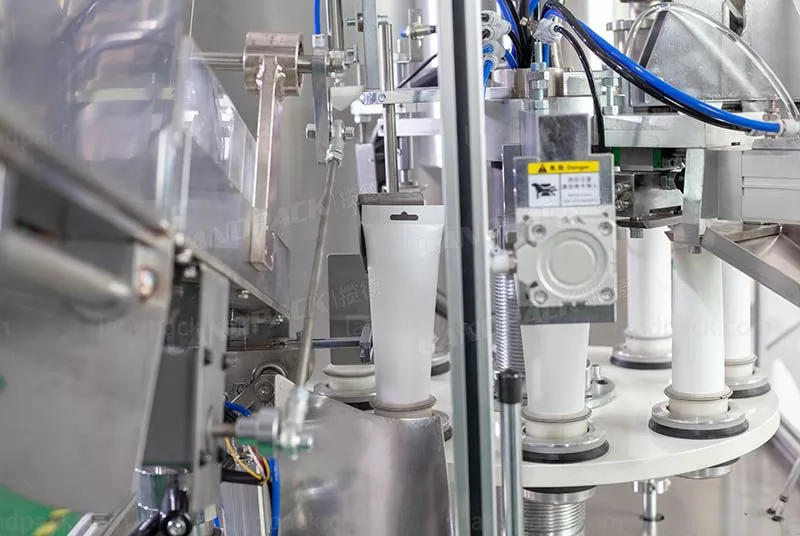

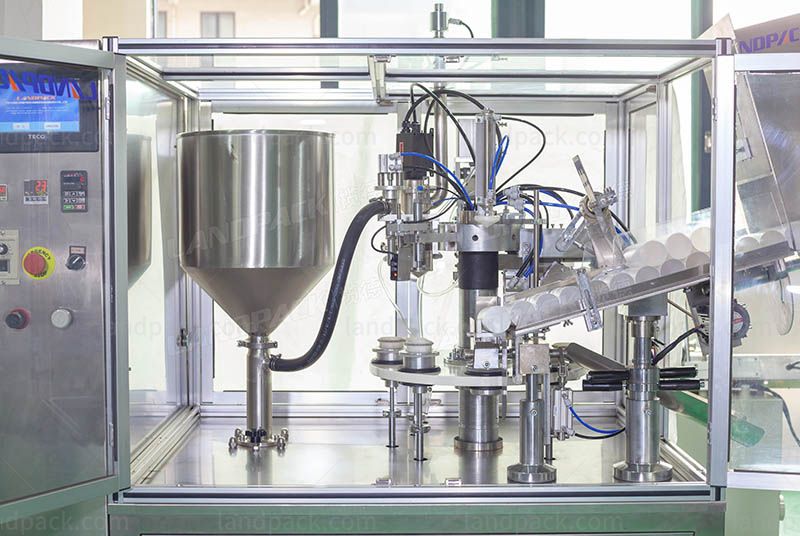

The machine adopts a fully enclosed dust cover, the machine body is made of SUS304 material, and the appearance is unique and beautiful;

The replacement of the base is suitable for filling and sealing of various specifications of pipes, the sealing appearance is neat and tidy, and the sealing is firm;

The filling speed and measurement accuracy are convenient and adjustable, with high adjustment accuracy and good stability;

The machine can be equipped with various filling methods of different specifications to meet the filling requirements of different viscosities;

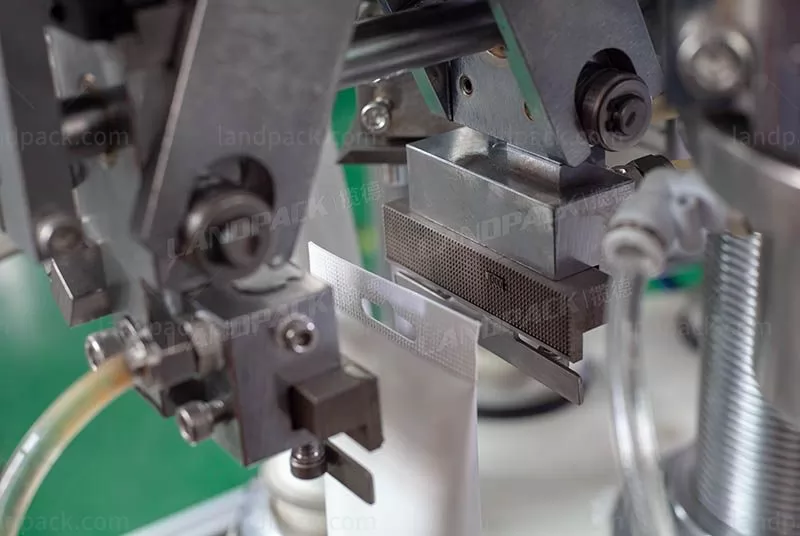

The internal heating is heated by Leister hot air gun, and the external water-cooling device is configured to cool down to make the sealing more beautiful;

All parts of the machine contacting materials are made of stainless steel SUS304;

ModelLFF-GFW-00
Yield20-40bottle/min
Pipe DiameterΦ10mm-Φ50mm (Customizable)
Tube Height20mm-250mm (Customizable)
Control systemPLC
Power supply220V、50Hz
Airconsumption0.3m³/min
Dimension2180mm*930mm*1870mm(L*W*H)
Equipment Material
304
Weight750KG

After receiving your inquiry,We will send you the quotation as soon as possible.
