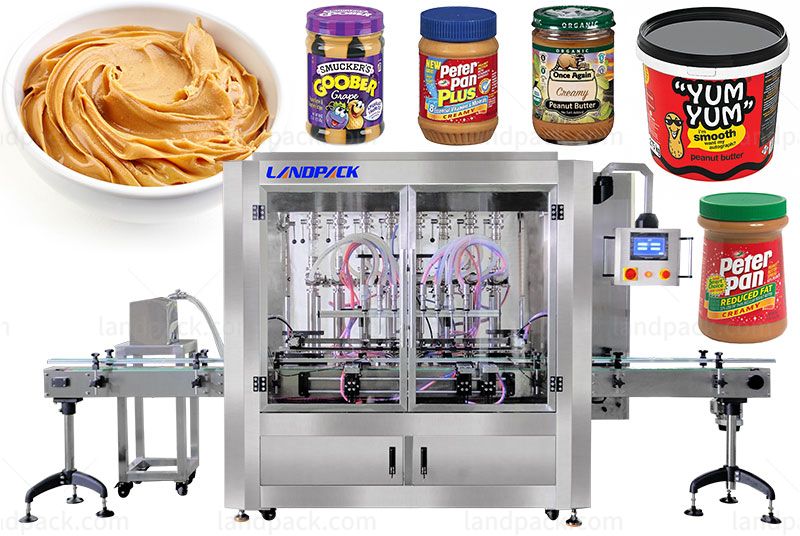

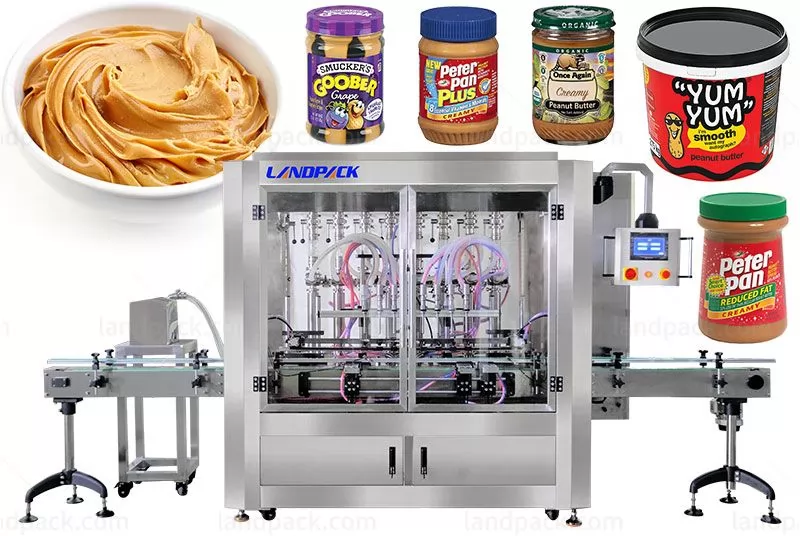

Automatic Peanut Butter 8 Heads Piston Pump Bottle Filling Machine

  • Application
  • Description
  • Parameter
  • Video

Application:
It is designed for all kinds of semi-fluid, paste, and viscous materials with or without particles, such as peanut butter, cream, syrup, pulp beverage, and Various food sauces, such as chili sauce, bean paste, sweet sauce, jam, butter, sesame sauce, etc;

Packaging Material:
HDPE, Aluminum, Plastic, Glass, etc.

Kindly Reminder:
Please tell us the following information when you send us an inquiry. Based on your message, we will suggest the optimum solution to you for reference. Thank you.
1. Your product
2. Filling Range
3. Bottle/Jar/Can material
4. Bottle/Jar/Can dimension

Packaging Exambers:Automatic Peanut Butter 8 Heads Piston Pump Bottle Filling Machine

1. The body is mainly made of high-quality stainless steel, beautiful appearance that is clean and sanitary, and completely meets the food hygiene requirements.

2. PLC controller, high function and control the whole machine's work steps.

3. The quick and flexible connection mode makes disassembly and cleaning more convenient.

4. It is light and convenient, has strong adaptability, and has a variety of anti-drip filling heads for selection.

5. Accurate measurement, high packaging efficiency, compact structure, low noise, and long service life

6. Peanut butter automatic filling machine is convenient to control, without the bottle, and can and has the function of counting.

7. It can make the product more simple and convenient in operation, accuracy error value, installation adjustment, equipment cleaning, equipment maintenance, etc.

8. Peanut butter filling machine automatically goes through the bottle and can pack automatically, with high precision. According to different specifications and models of bottles, the volume of the bottle and the size of the bottle mouth can be adjusted at will. It can be equipped with an automatic assembly line.

Model Name
LFZ-04LFZ-06LFZ-08LFZ-10
Filling Nozzle468
10
Production Speed 15-25Bpm20-35Bpm30-40Bpm40-50Bpm
Filling Accuracy200ml: +/-1%, 200-5000ml: +/-0.5%
Filling Range50-5000ml (customizable)
Power Supply2KW2.5KW3.5KW5KW
Power Supply220V/380v 50hz Three phase
Air Pressure0.6-0.8Mpa
Applicable Bottle ShapeRound, Flat, Oval, Irregular, Square, Jar, Can, etc.
Bottle MaterialHDPE, Aluminum, Plastic, Glass, etc.
Dimension (mm)4000*1320*20904000*1320*20904000*1320*20904000*1320*2090
Weight600kg
650kg800kg800kg

After receiving your inquiry,We will send you the quotation as soon as possible.
