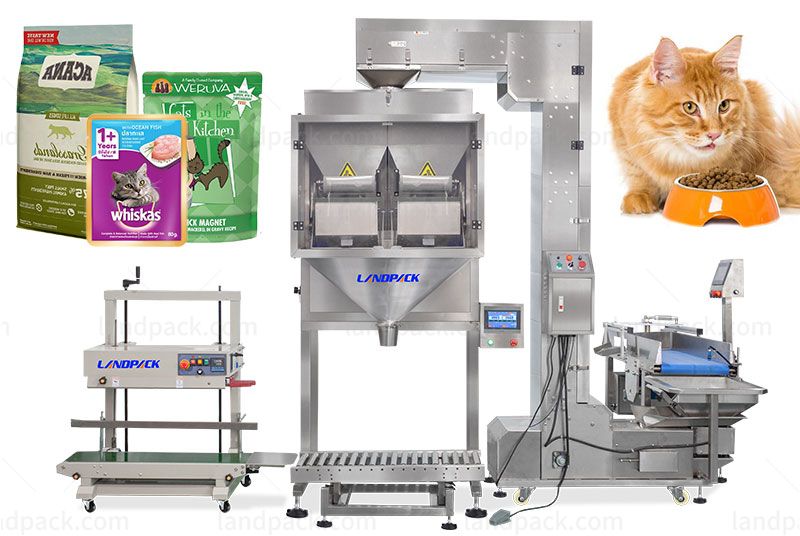

Application:
Suitable for weighing packaging of 1kg-25kg granular products, such as dog food, cat litter, cat food, fish food, and other granular pet food packaging.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Wide weighing range: 1kg-25kg, target weight can be set on the touched screen.
2. Wide application, suitable for both bag and bottle filling.

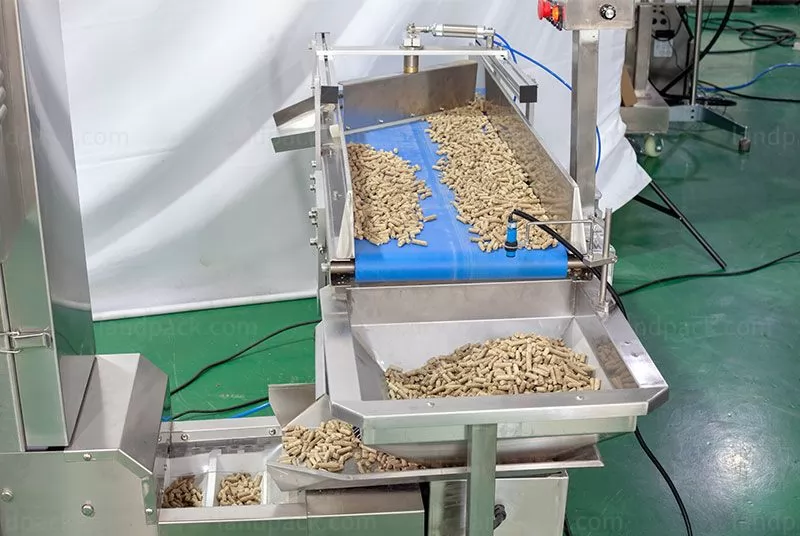

3. Z-elevator delivers the materials, very convenient.
| Model | LD-SAD01 |
| Bag Material | Multilayer Composite Premade Bag (e.g.: PET/PE) |

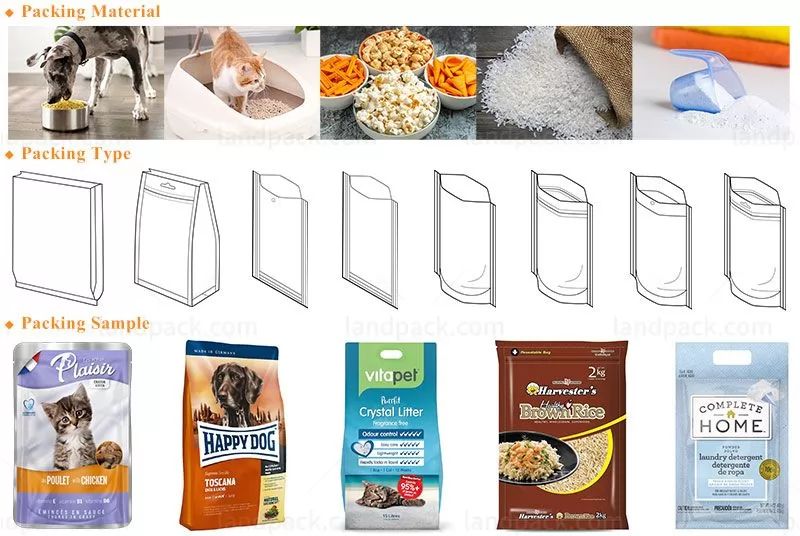

| Bag Type | 3 Side Seal Bag, Stand-up Bag |
| Upgradable Bag Type | Gusset Bag, Zipper Bag, Flat Bottom Pouch (Need additional purchase of functional device) |
| Size Range | 80mm≤W≤300mm, 100mm≤L≤430mm |
| Speed | 0-15bags/min |

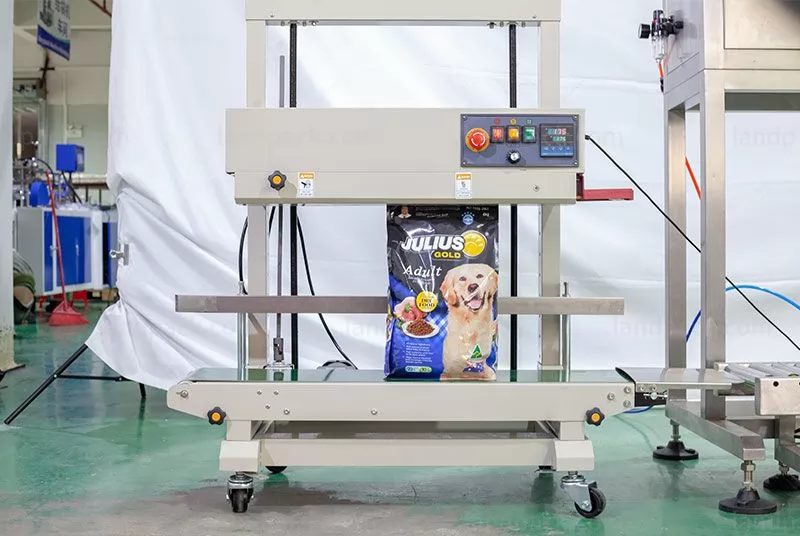

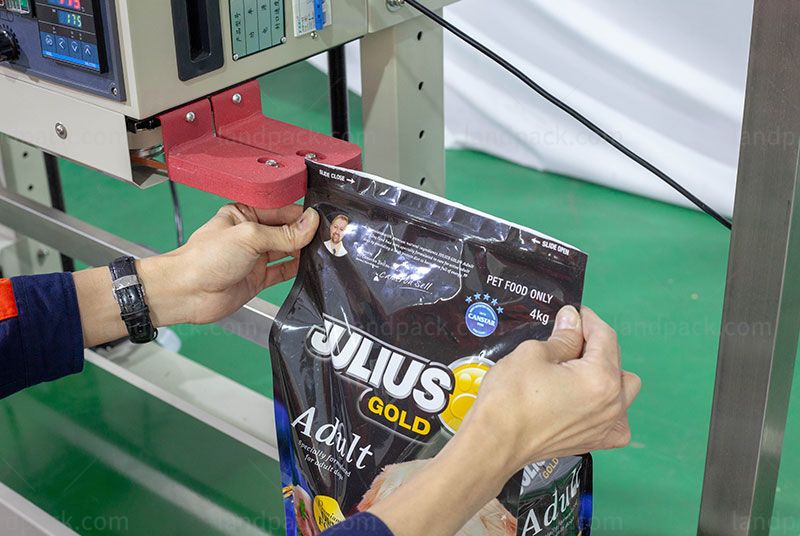

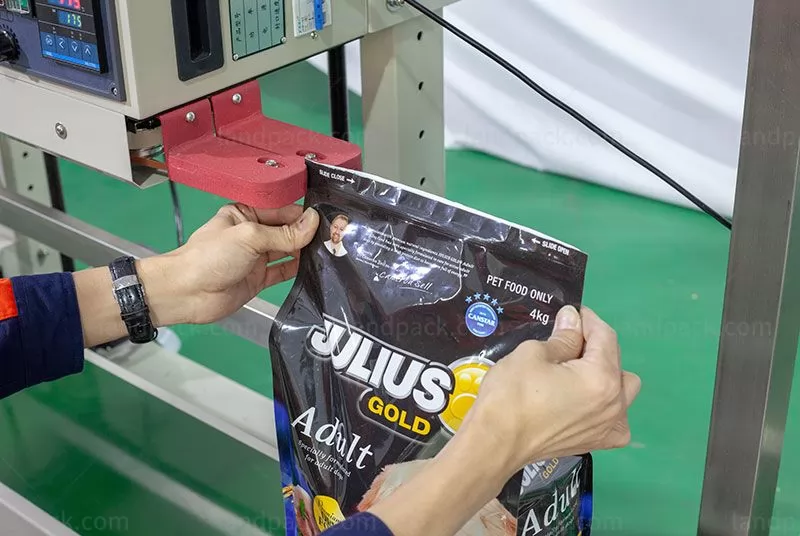

| Sealing Type | Straight grain, the pitch is 1mm (Optional reticulate) |
| Sealing Width | 10mm (5-20mm can be customized) |
| Voltage | 220V, Single-phase, 50/60HZ, 1.2KW |
| Air Pressure | 0.65Mpa |
| Air Consumption | 0.3m³/min (Standard machine, no additional function) |
| Body Dimension | 1770*600*1360mm |
| Packing Dimension | 1860*710*1650mm (Export non-fumigation wooden case) |
After receiving your inquiry,We will send you the quotation as soon as possible.
