Application:
* Cat strip, meat paste, minced meat, meat slice, fish, thick liquid, beans butter
* Liquid/paste type: detergent, rice wine, soy sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, chili sauce, bean paste, etc.
* Class of pickles, pickled cabbage, kimchi, pickled cabbage, radish, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Large Capacity Storage Hopper: Ideal for high-output enterprises.
2. Servo Rotor Pump Filling System: Suitable for filling pastes and viscous sauces.
3. Compact Footprint: Easy to use and saves space.
Workflow:

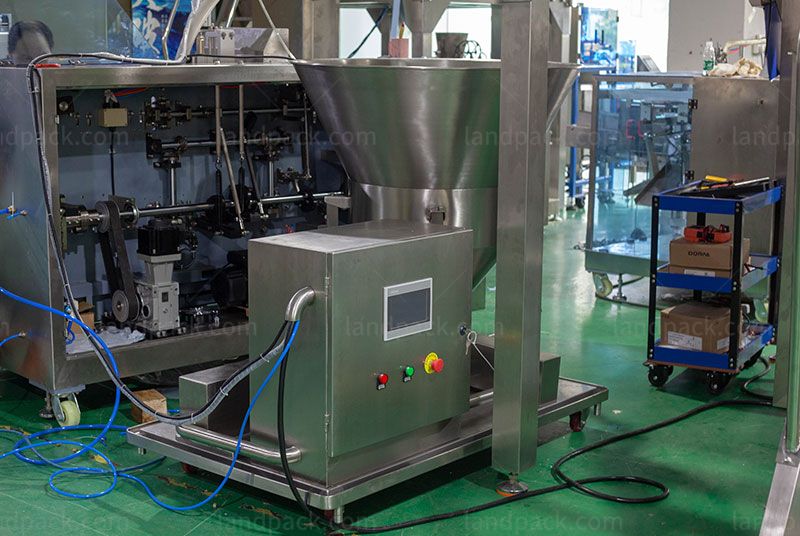

1. Large material storage hopper
2. Meat slice measure pump

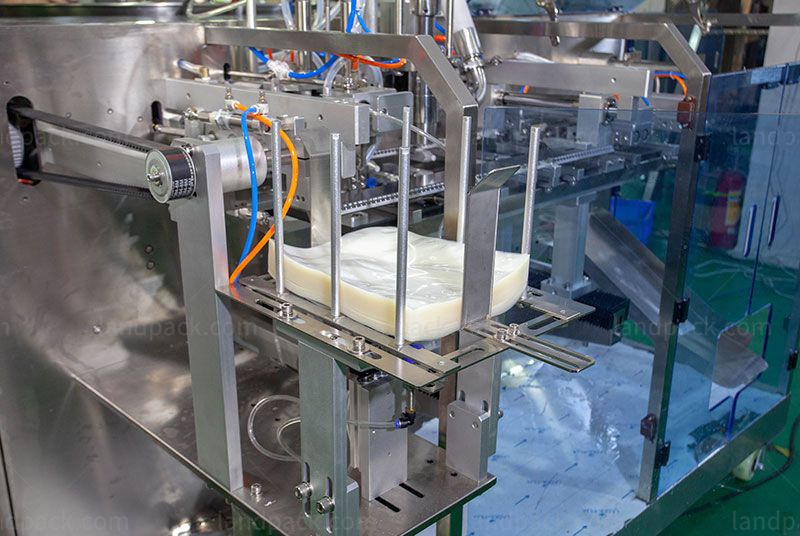

3. Feeding Bag Device
4. Open Bag Device
5. Filling material into bag
6. Sealing bag
7. Output the finished products
The Main Technical Parameters | |

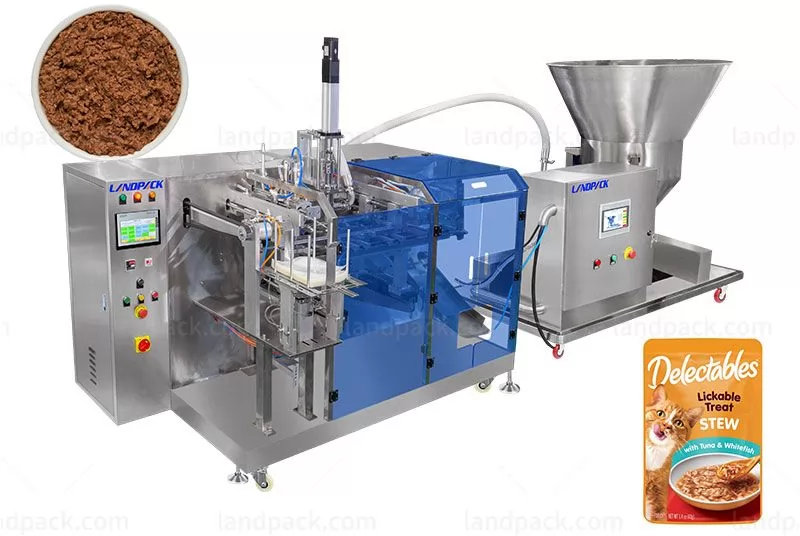

Model | LDSP-160A |
Packing material | 3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc |
size | W: 80-160 mm |
Filling range | 20-500g |
Packing speed | 10-45 bags/min (speed is determined by the product filling quantity) |
Average precision | ≤ ±1% |
Total power | 2.5KW |
Weight | 800 KG |
Main standard parts | 1. Code printer 2. PLC control system 3.Bag opening device 4. Vibration device 5.Cylinder 6. Electromagnetic valve 7. Temperature controller 8.Vacuum pump 9. Inverter 10. Output system |
We can customize the suitable one for you according to your requirements. Just Tell us: Weight or Bag Size required. | |
Parts of Machine | |||||||
Parts | PLC | Touch Screen | Frequency Converter | Vacuum Pump | Printer | Main Motor | emperature Controllor |
Brand | SIEMENS | SIEMENS | TOSHIBA | ORION | SHENG LONG | EVERGEAR | AISET |
Origin | Germany | Germany | Japan | Japan | China | China | China |
Can replace parts as needed | |||||||
Work Process | |
Safety Measures | 1.no bag feeding, no filling and no sealing. 2.no bag opening/open error, no filling and no sealing 3.no filling, no sealing |
Product Process | Station 1 Bag Feeding Station 2 Date Printing (option)and Open zipper bag Station 3 Open bag Station 4 Filling Materials Station 5,6,7 :Vibration,Air Removal,Nitrogen Filling,Close Zipper,Hole Punching,Heat Sealing Remark:No.5.6.7.Stations are based on customer requirements for adjusting. Station 8 Heat Sealing and Product Output |
Stations are based on customer requirements for adjusting. | |
After receiving your inquiry,We will send you the quotation as soon as possible.
