Application:
High-precision multilane cat strip pet food stick filling packing machine is suitable for liquid products such as cat strips, meat paste, mouthwash, ketchup, flavoring, sauce, pasty, shampoo, salad dressing, cream, body wash liquid, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Fully Automatic Operation: Handles filling, bag making, sealing, and coding to save labor costs.
2. Siemens Touch Screen: Smart and simple operation.

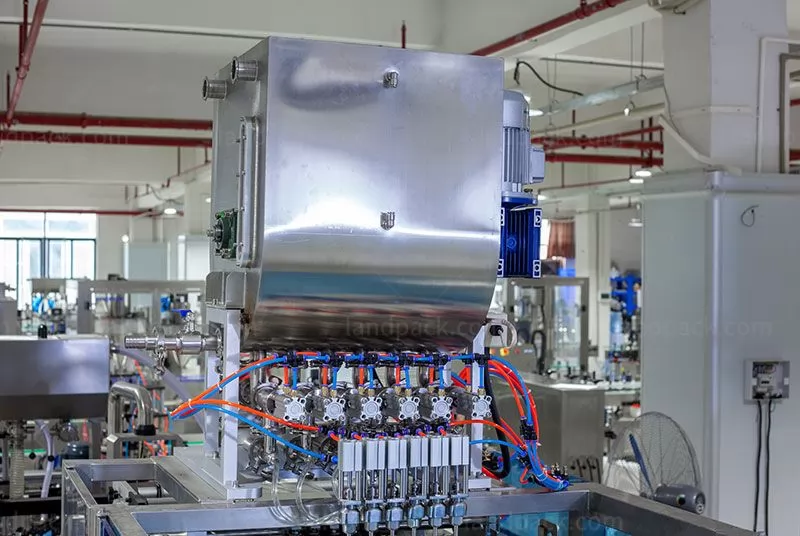

3. Peristaltic Pump Dosing: Ensures high precision.
4. Servo Control Film Pulling: Provides nice sealing without wrinkles.
5. Anti-Leak Line Design: Ensures firm sealing.
6. Round Corner Design: Ensures perfect curvature.
| Model | LD-280BKL | LD-560BKL |
| Track Number | 4-6 Track | 8-12 Track |
| Filling Method | 1. Piston pump; 2. Peristaltic Pump; 3. Volumetric cup | |
| Capacity | Max.35 cycles/min | |
| Sachet Size | L: 50-180mm; W: 17-30mm | L: 50-180mm; W: 17-30mm |
| Film Width & Thickness | Max.280mm; 0.07-0.1mm | Max.560mm; 0.07-0.1mm |
| Sealing Type | Back sealing/ Stick bag | |
| Cutting Type | 1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting | |
| Air & Power | 0.8 mpa, 0.8m³/min, 2.8kw | 0.8 mpa, 0.8m³/min, 4.1kw |
After receiving your inquiry,We will send you the quotation as soon as possible.
