Application:

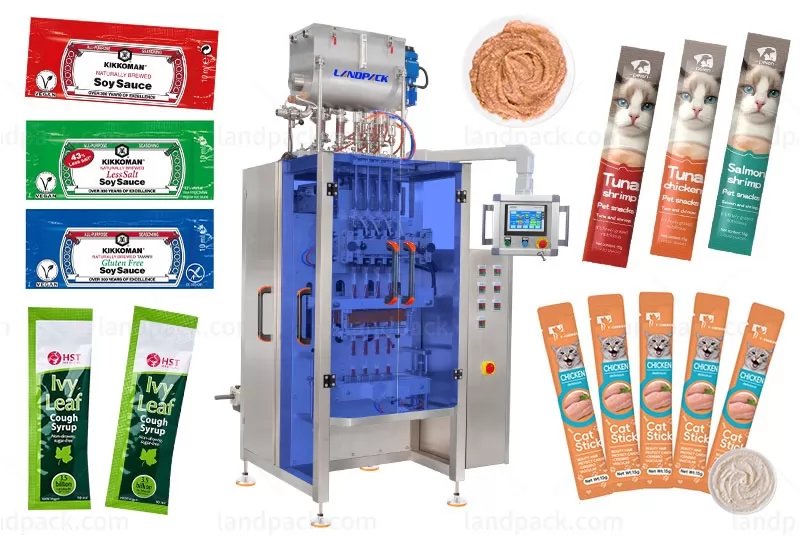

High speed multi lane cat puree cat strip pet food stick packing machine is suitable for liquid products such as cat strips, meat paste, mouthwash, ketchup, flavoring, sauce, pasty, shampoo, salad dressing, cream, body wash liquid, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Crafted entirely from food-grade stainless steel (SS304), ensuring safety, hygiene, and durability—ideal for food packaging environments.
2. Adopts a high-precision servo system to pull the film, making the action more fluent, stable.

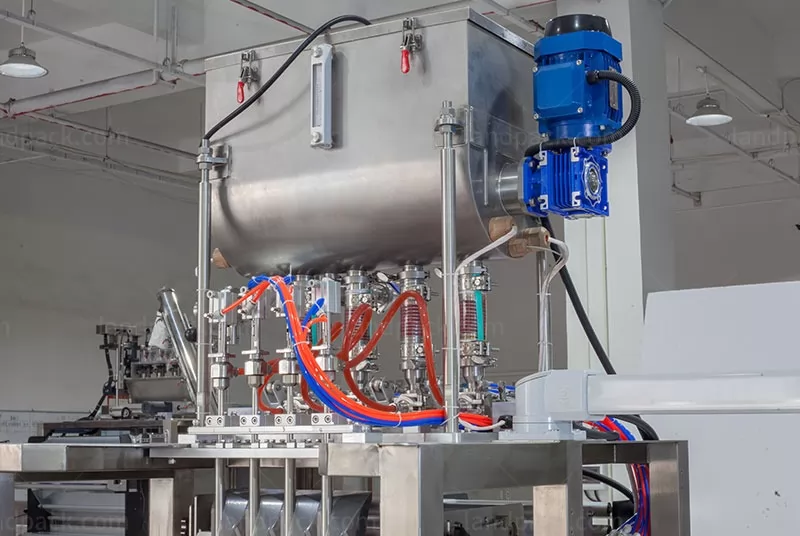

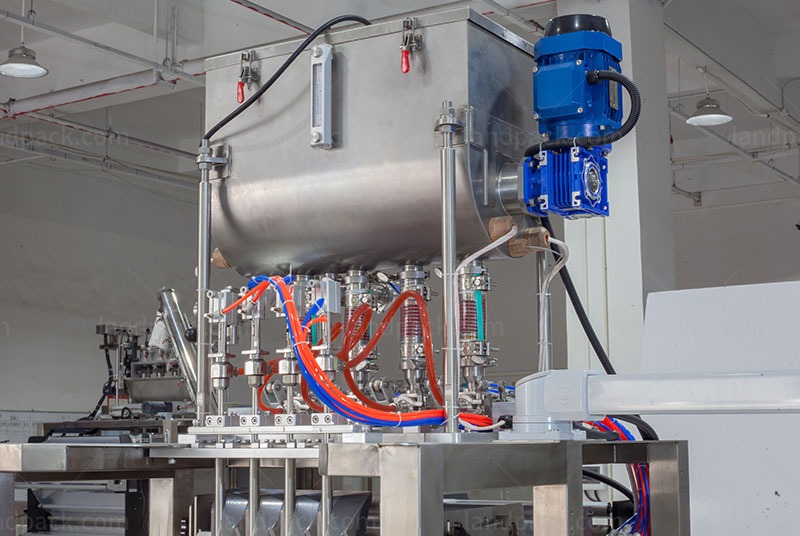

3. Each screw of the auger is driven by its servo motor, which allows for high-accuracy filling and homogeneous and accurate dosing.
4. Forms bags directly from film rolls and completes sealing and cutting with excellent stability, ensuring efficient and reliable packaging.
5. Supports for custom cutting according to the customization of irregular shapes, round corners, easy-tear openings that give a safe solution for diverse packaging requirements.
Model | LD-280BKL | LD-560BKL |
Track Number | 4-6 Track | 8-12 Track |
Filling Method | 1. Piston pump; 2. Peristaltic Pump; 3. Volumetric cup | |
Capacity | Max.35 cycles/min | |
Sachet Size | L: 50-180mm; W: 17-30mm | L: 50-180mm; W: 17-30mm |
Film Width & Thickness | Max.280mm; 0.07-0.1mm | Max.560mm; 0.07-0.1mm |
Sealing Type | Back sealing/ Stick bag | |
Cutting Type | 1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting | |
Air & Power | 0.8 mpa, 0.8m³/min, 2.8kw | 0.8 mpa, 0.8m³/min, 4.1kw |
After receiving your inquiry,We will send you the quotation as soon as possible.
