Application:
Fully automatic from filling, making bags, sealing, and coding, perfect save your labor cost, Anti-leak line design to ensure firm sealing; round corner design to ensure perfect curvature.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

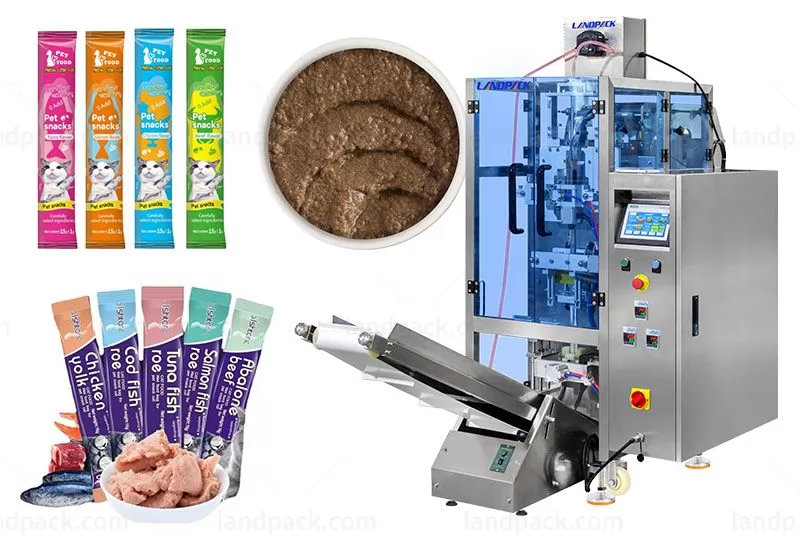

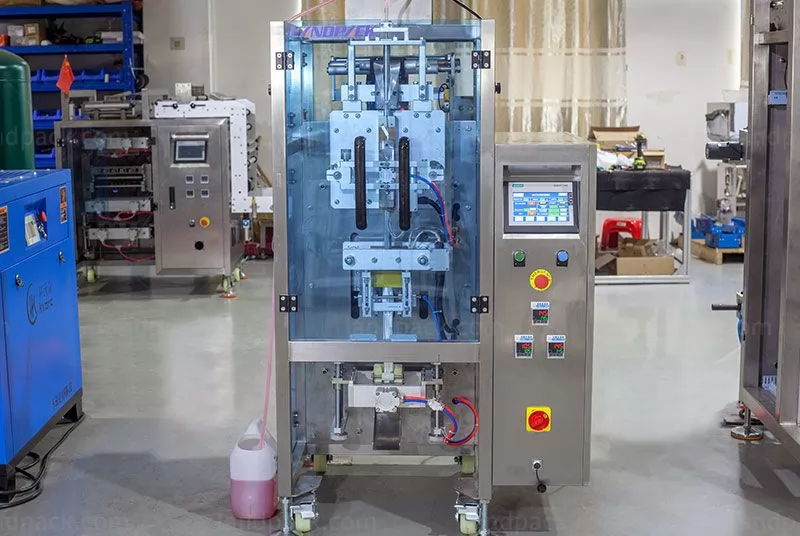

1. Fully Automatic Operation: Handles filling, bag making, sealing, and coding, saving labor costs.
2. Siemens Touch Screen: Provides smart and simple operation.

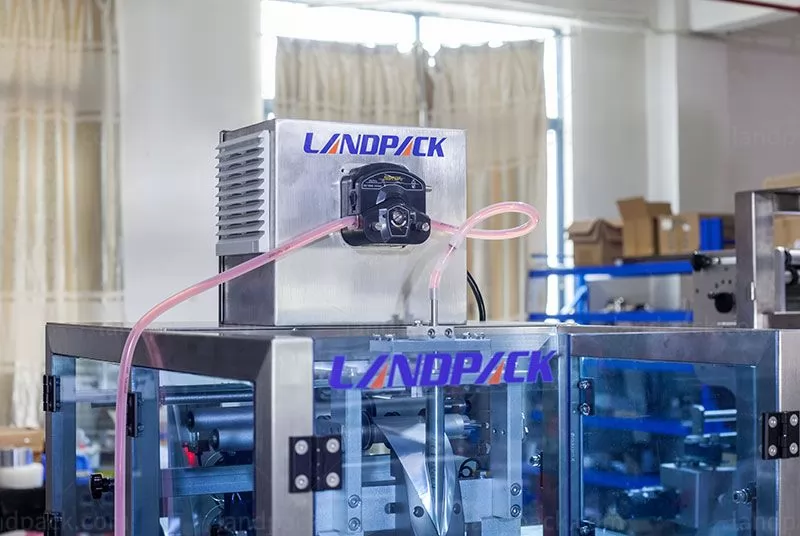

3. Peristaltic Pump Dosing: Ensures high precision.

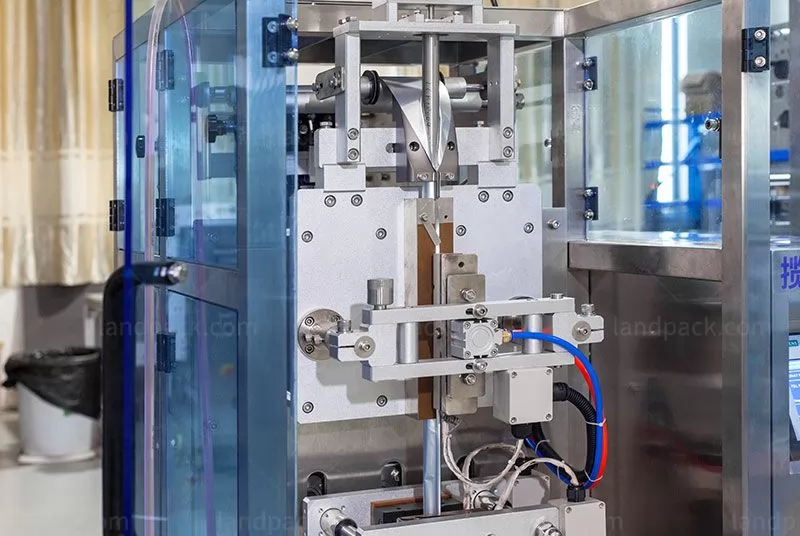

4. Servo Control Film Pulling: Achieves nice sealing without wrinkles.
5. Anti-Leak Line Design: Ensures firm sealing.
6. Round Corner Design: Ensures perfect curvature.
| Model | LDBK-140L | |
| Dosing Method | A: Piston pump 1-30ml; B: Piston pump 2-42ml; C: Magnetic pump 3Liter/min (for pure liquid or oil product) | |
| Hopper type | A: Single layer SS304 hopper; B: Double jacket SS304 hopper; C: Magnetic pump hose connection to raw liquid tank | |
Packing speed | 20-45 bags/min (1200-2700 bags/hour) | |
Bag size range | L: 40-150mm; W: 15-100mm | |
Bag Seal type | Stick /pillow | |
| Cut type | A: Teeth cut B: Straight cut C: Round cut D: Irregular cut (Stick Width within 40mm) | |
Film thickness | 0.05-0.1mm | |
Film material | Laminated film such as paper/PE, aluminum/PE, PA/PE, PET/PE, filter paper | |
Drive method | Electricity + Pneumatic | |
Control style | PLC control system+English/Chinese screen (Or customized panel) | |
Power | 1.8KW | |
Power supply | AC220V 1phase 50Hz/ AC380V 3phases 50Hz | |
| Air consumption | 0.4cbm/min 0.8Mpa | |
Dimension | 750*710*1780 mm | |
After receiving your inquiry,We will send you the quotation as soon as possible.
