Application:

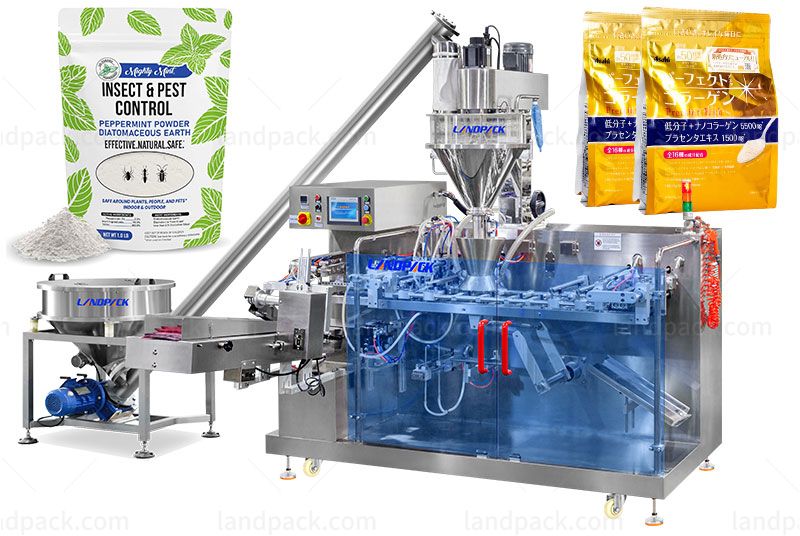

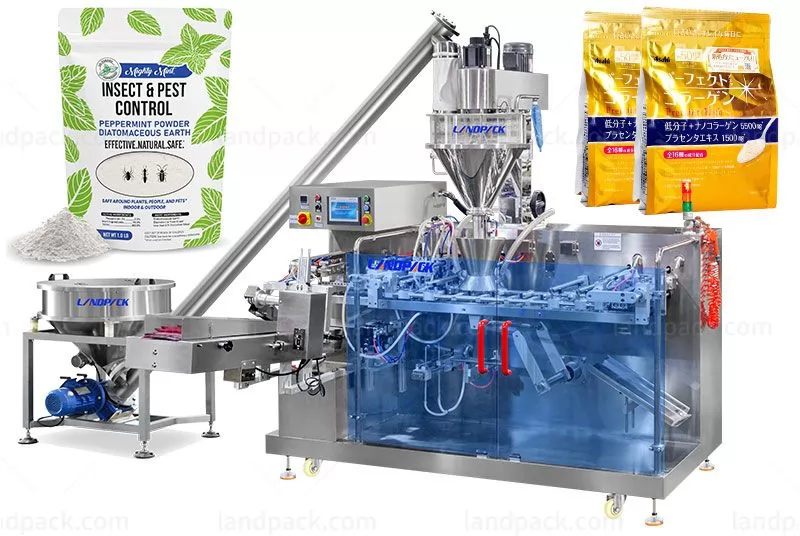

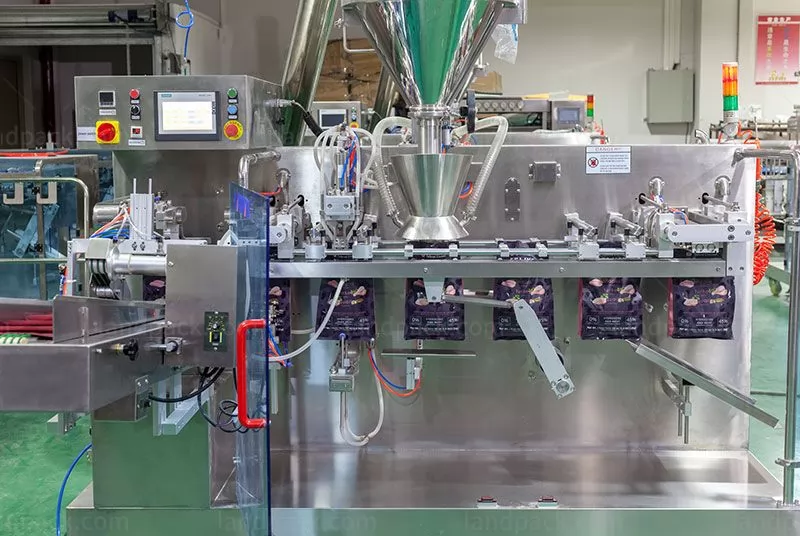

Automatic premade zipper bag packing machine is suitable for packing all kinds of powder material such as pharma powder, medical powder, health product powder, glucose powder, seasoning powder, insecticide powder, etc.
Suitable Pouch:
Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. High capacity auger feeding machine, saves labor costs.
2. High-precision horizontal bag feeding device, speed adjustable.
3. Open the zipper efficiently and accurately.
4. Vacuum cleaning.
5. Heavyweight powder, beautiful packaging, accurate measurement.
Workflow:
1. High capacity auger feeder, save time and labor cost

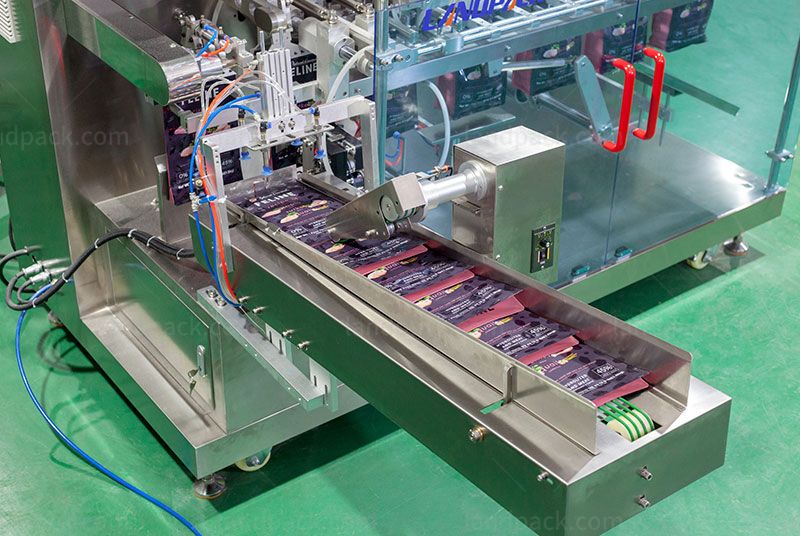

2. Horizontal bag feeding device
3. Date printer

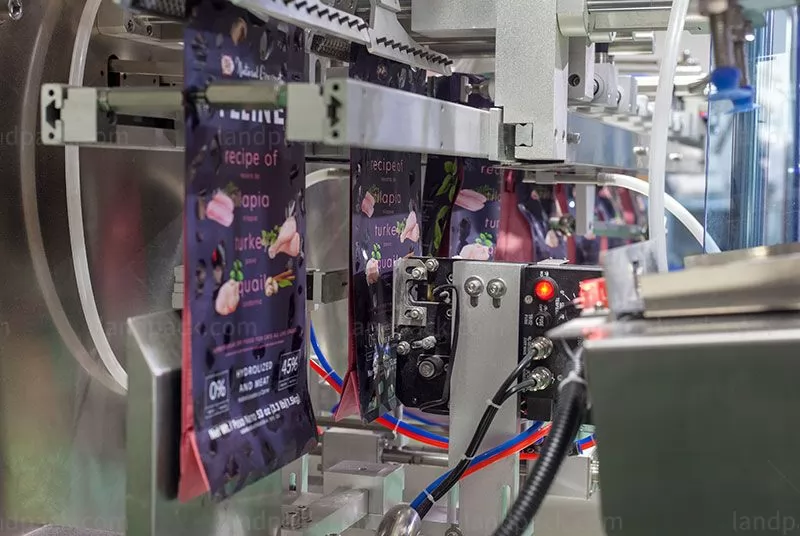

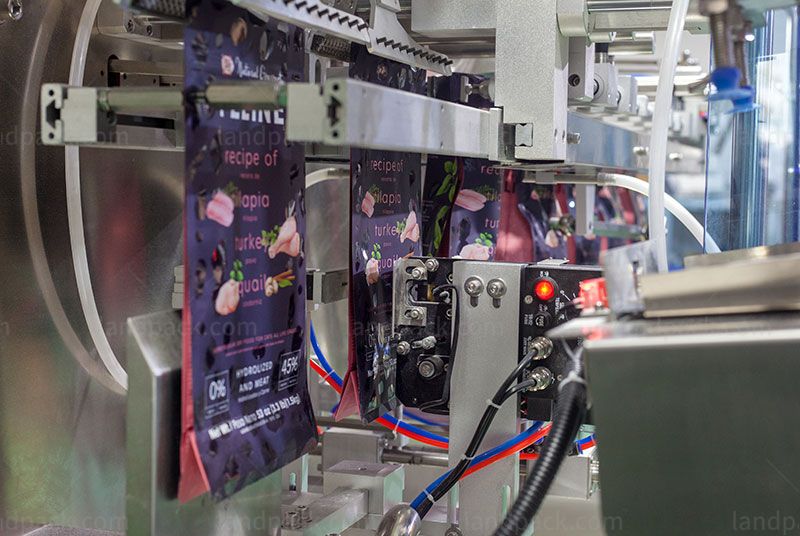

4. Opening zipper and bag fully

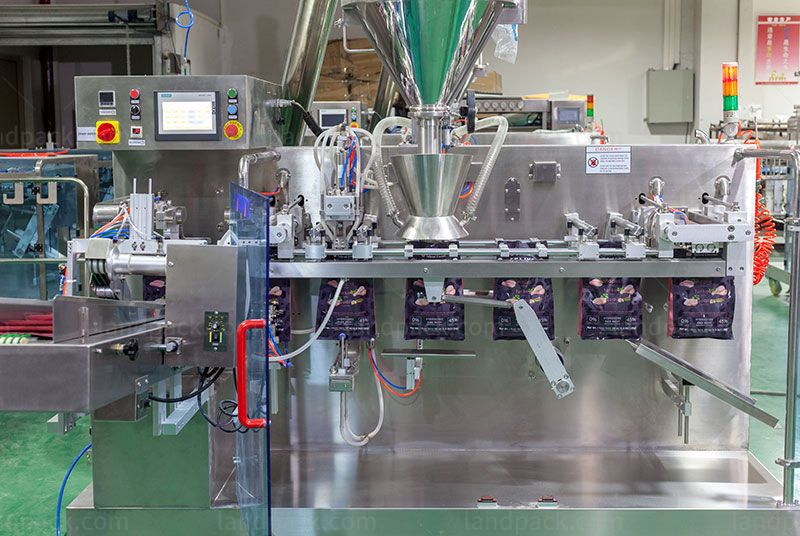

5. Volumetric pump filling, vacuum cleaning
6. Sealing-Output
| Type | LDSP-160 | LDSP-160Y | LDSP-210 | LDSP-260 |
| Bag Type | 3-side, 4-side sealing bag, stand-up bag, handbag, spout bag, zipper bag, compound bag, etc. | |||
| Bag Size | 110-230mm*80-160mm(L*W) | 70-100mm*110-230(L*W) | 100-210mm/110-320mm(L*W) | 100-260mm/110-320mm(L*W) |
| Filling Range | 10g-100g | 10g-100g | 10g-1kg | 10g-3kg |
| Packing Speed | 20-45bags/min(speed is determined by the product filling quantity) | 25-50bags/min(speed is determined by the product filling quantity) | 20-50bags/min (speed is determined by the product filling quantity) | 20-50bags/min (speed is determined by the product filling quantity) |
| Machine weight | 800KG | 800KG | 900KG | 1000KG |
| Total Power | 2.0KW | 2.0KW | 2.0KW | 2.0KW |
| Work Flow | 1. Giving bag, 2. Pick up the bag(coding), 3. Open the bag up and down, 4. Filling, 5. Heating sealing, 6. Output of product | |||
| Dimensions | 1750mm*1285mm*1360mm(L*W*H) | 2140mm*1366mm*1360mm(L*W*H) | 2140mm*1366mm*1360mm(L*W*H) | |
| Collocation | Screw metering, screw elevator | |||
After receiving your inquiry,We will send you the quotation as soon as possible.
