Application:
This machine is suitable for a wide range of particle products, including pharmaceutical items, medical powders, health products, glucose, seasonings, and chemical powders. It ensures efficient and precise packaging for diverse industrial applications.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

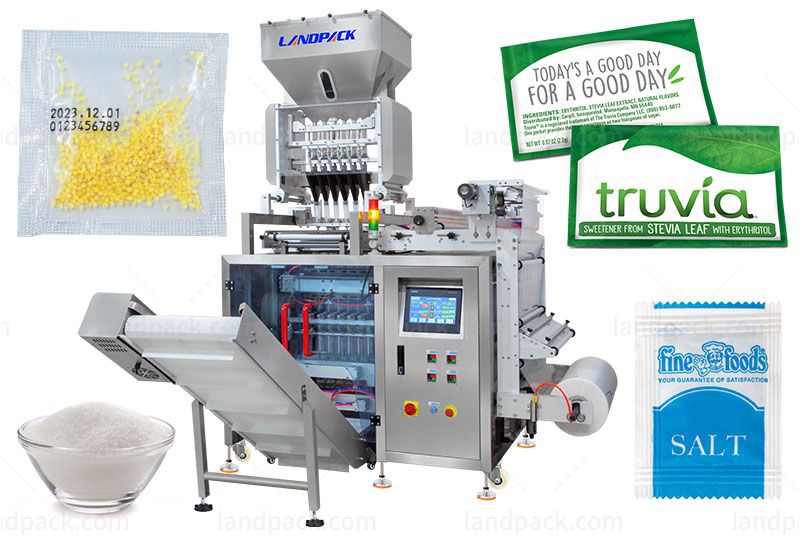

1. Full Automatic Operation: Weighing, filling, and sealing sugar sachets efficiently in a 6-lane setup, streamlining production processes.
2. Advanced Control System: Equipped with Siemens PLC and touch screen interface, offering precise servo control for stable and reliable operation.
3. High-Speed Production: Capable of producing 120 to 180 sachets per minute, ensuring high productivity to meet large-scale demands.
4. Single Sachet Size Per Machine: Optimized for a specific sachet size to guarantee consistent output and minimize errors.
5. Multiple Models Available: Flexible machine options cater to different sachet sizes and production requirements.
6. Robust and Efficient Design: Built for continuous, high-performance operation in demanding manufacturing environments.
Workflow:
1. Automatic Film Pulling
2. Automatic Date Printing

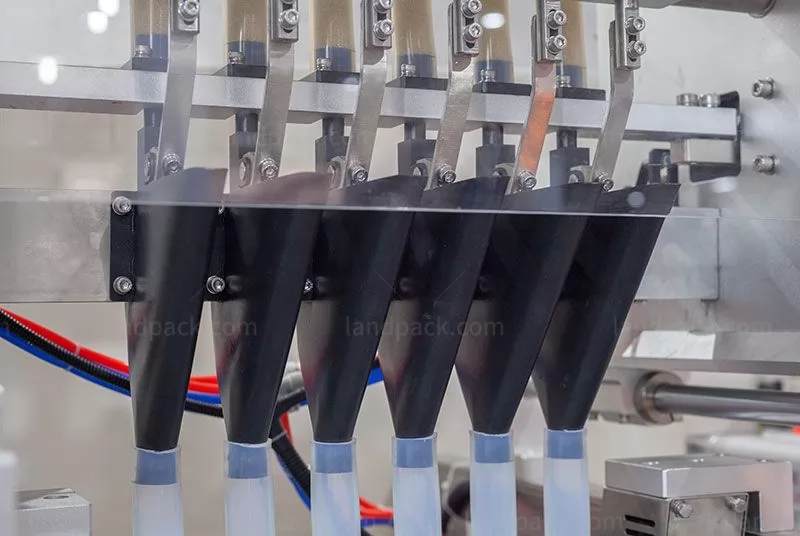

3. Automatic Cup Filling

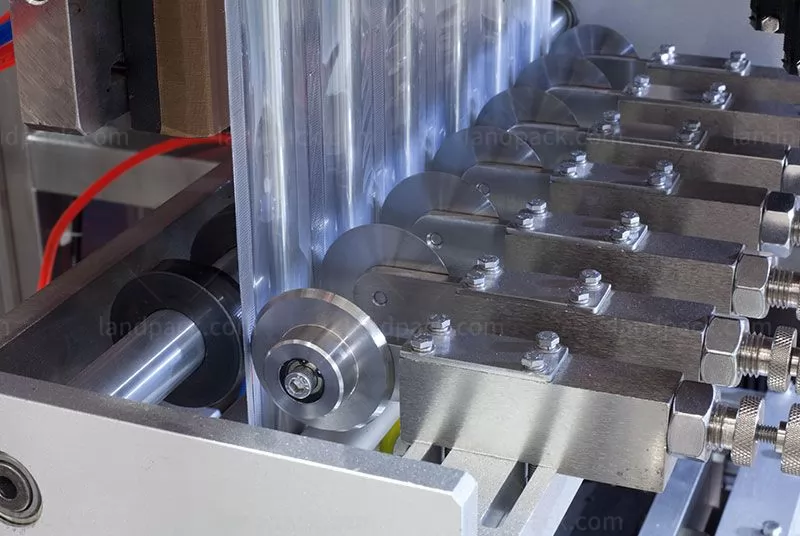

4. Automatic Sealing and Cutting
Model | LD-480G | LD-720G | LD-960G |
Track Number | 2-6Track | 2-10Track | 2-12Track |
Filling Method | Volumetric cup | ||
Capacity | Max.35 cycles/min | ||
Sachet Size | L: 45-120mm; W: 35-60mm | L: 45-120mm; W: 35-90mm | L: 45-120mm; W: 35-120mm |
Film Width & Thickness | Max.480mm; 0.07-0.1mm | Max.720mm; 0.07-0.1mm | Max.960mm; 0.07-0.1mm |
Sealing Type | 4 sides sealing | ||
Cutting Type | 1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting | ||
Air & Power | 0.8 mpa, 0.8m³/min, 2.8kw | 0.8 mpa, 0.8m³/min, 4.1kw | 0.8 mpa, 0.8m³/min, 5.5kw |
DIM & WT | 950*1470*1750mm; 300kg | 1153*1654*1750mm; 400kg | 1415*1686*2130mm; 500kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
