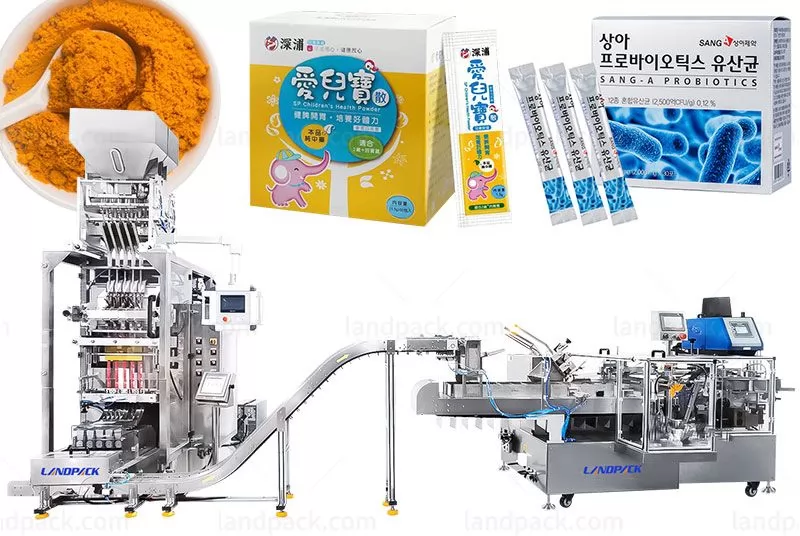

Application:
Automatic multi lane sachet pharma powder packing machine is suitable for many kinds of powder products, such as pharma powder, medical powder, health product powder, glucose powder, seasoning powder, insecticide powder, chemical powder, nutrition powder, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. High production efficiency, 5 rows speed up to 120-180 packs per minute, increase capacity and save labor.
2. High degree of automation: filling, loading, printing batch number, easy to tear, finished bag output in one go, fast and convenient adjustment.
3. 5 servo motor system control, accurate metering, pulling and feeding the film accurately.
4. Equipped with a dust suction device to prevent powder dust entrapment.
5. Easy to use, dedicated machine. No need for frequent debugging when switching between different modes. All parameters are set in the factory. Just set simple parameters on the screen before use;
| MULTI-LANE STICK PACK GRANULE PACKAGING MACHINE | |
Model | LD280BK |
Lane number | 2-6 Lanes |
Filling Method | 1. Volumetric cup; 2. Weigher; |
Capacity | Max.50 cycles/min |
Sachet size | L: 50-180mm; W: 17-65mm |
Film width & Thickness | Max.280mm, 0.07-0.10mm |
Sealing type | Back sealing/ Stick bag |
Cutting type | 1.Straight cutting; 2.Zig zag cutting; 3.Round cutting; 4.Die-cut |
Air & Power | 0.8Mpa, 0.8m³/min, 3.5kw |
Dimension & weight | 1385*918*2005mm;350kg |
| BOXING MACHINE | |
Model | LD200ZH |
Paper type | 250-400g/²(Boxes need come with pre-fold over) |
Capacity | 30-60 boxes/min |
Box type | Gusseted tongue type; Glue spray type |
Count way | Fixed number type; Numerable type; Manipulator counting |
Boxing way | Orderly type; Unorderly type |
Air & Power | 0.5-0.8Mpa, 0.3m³/min, 220V, 50/60HZ, 2.0KW |
Workflow | Box open - Bag packing - Check weigher - Counting - Boxing- Fold ears - Fold page - Gusseted tongue/Glue spray - Finish |
After receiving your inquiry,We will send you the quotation as soon as possible.
