Application:

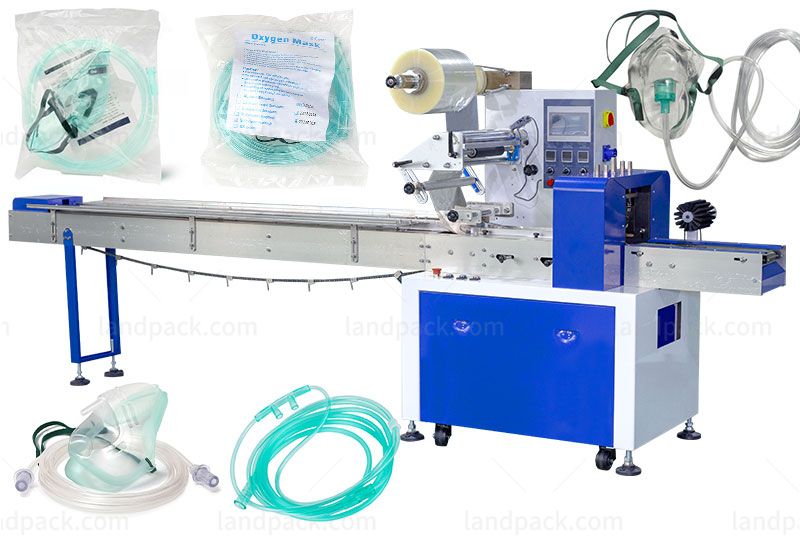

The Automatic Pharma Mask Horizontal Flow Wrapping Packing Machine is suitable for packing various pharma materials such as pharma pills, ointment tablets, medicine patches, masks, foot patches, drug capsules, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Samples:
1. Two/three rows of continuous packaging, using the conveyor belt design of the lower paper belt + fader to ensure smooth material transportation without gaps, thus making the packaging process stable and efficient.
2. The end seal and drag chain prevent material pinching and ensure that materials pass through the end seal smoothly during the packaging process, making the horizontal seal more perfect.
3. The nitrogen charging device can flexibly switch the nitrogen charging device on or off according to material characteristics and packaging requirements.
Model | LP-450X |
Film Width | Max.450mm |
Bag Length | 90-320mm or 150-430mm |
Bag Width | 50-160mm |
Product Height | Max.65mm |
Film Roll Diameter | Max.320mm |
Packaging Rate | 40-230 bags/min |
Power | 220V, 50/60HZ, 2.6KW |
Machine Size | 3920*670*1320 mm |
Machine Weight | About 550kg |
Remarks | Optional air filling device/optional angle folding |
Film Material | OPP、PE、PVC、OPP/CPP、PT/PE、KOP/CPP |
After receiving your inquiry,We will send you the quotation as soon as possible.
