Application:
Automatic Powder Stick Sachet Packaging Cartoning Machine Line is suitable for many kinds of powder products, such as pharma powder, milk powder, coffee powder, health powder, medicine powder, glucose, medical powder, nutrition powder, etc.
Packaging Line Composition:

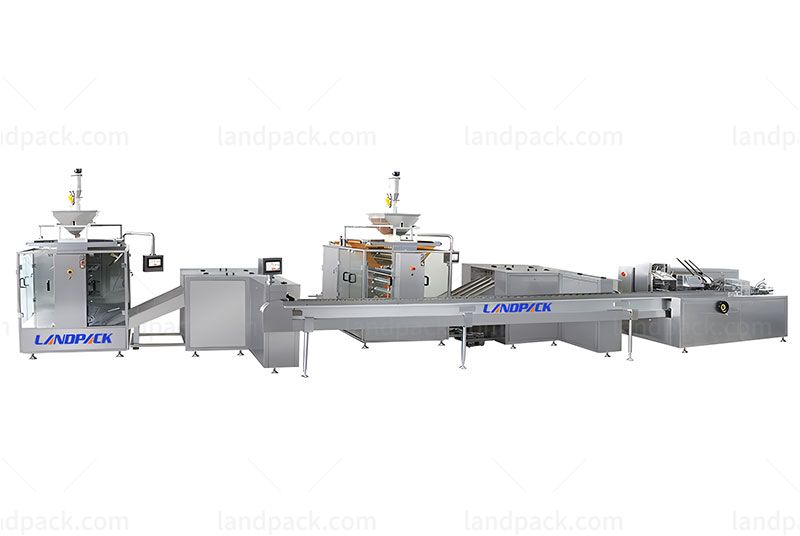

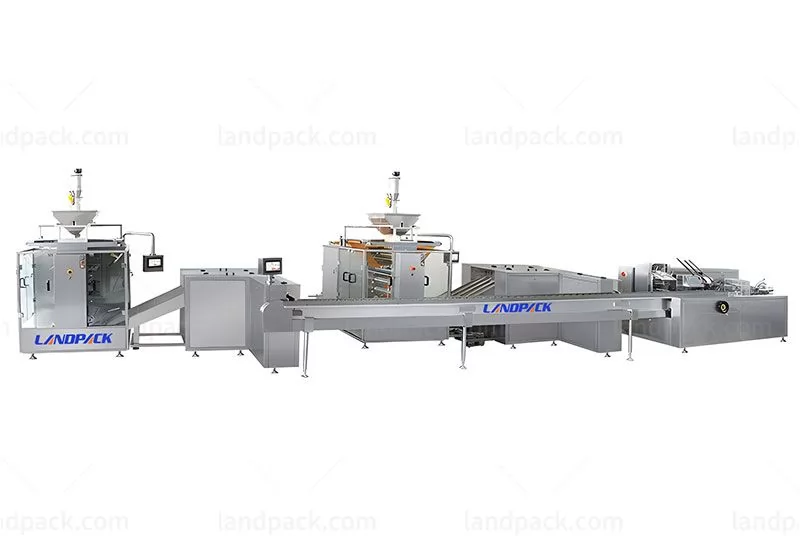

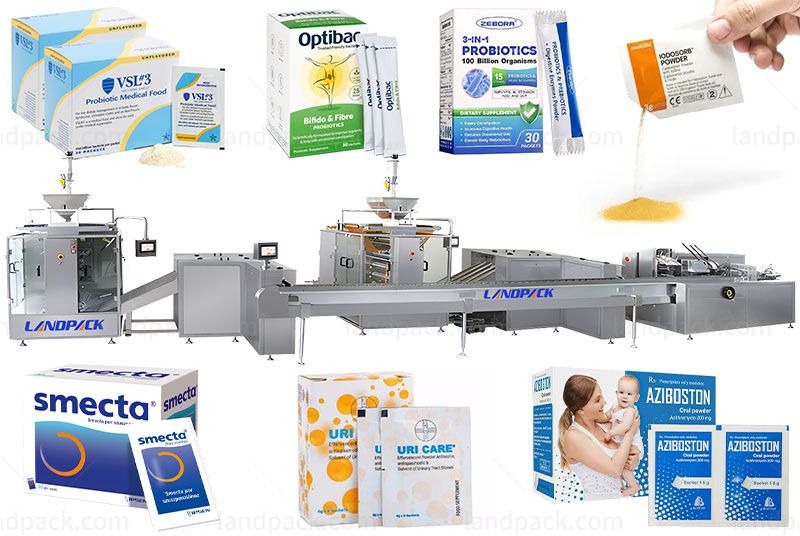

This packaging and boxing system consists of LD-560BK Multi-lane powder and fine granule stick pack packaging machine, a sorting bag equipment and LD200ZH boxing machine. It can realize stick packed packaging into a box.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. This machine seamlessly performs tasks such as measurement, bag making, filling, sealing, batch number printing, cutting, counting, and cartoning. These processes are automated for efficiency.
2. The machine incorporates an automatic film slitting system, allowing for multi-line row and simultaneous bag sealing. This streamlines the packaging process.
3. The parts of the machine that come into contact with the product are made of stainless steel. This design complies with stringent requirements for pharmaceutical and food production, ensuring hygiene and safety.
4. Equipped with casters, the equipment is easy to handle and move within the workshop. This mobility facilitates workflow adjustments and maintenance.
5. The machine features an automatic alarm system, preventing material wastage and enhancing overall efficiency.
| MULTI-LANE STICK PACK POWDER PACKAGING MACHINE | |
Model | LD560BK |
Lane number | 3-10 Lanes |
Filling Method | 1. Long auger; 2. Short auger; 3. Short auger with cup |
Capacity | Max.40 cycles/min |
Sachet size | L: 50-180mm; W: 20-90mm |
Film width & Thickness | Max.560mm, 0.07-0.10mm |
Sealing type | Back sealing/ Stick bag |
Cutting type | 1.Straight cutting; 2.Zig zag cutting; 3.Round cutting; 4.Die-cut |
Air & Power | 0.8Mpa, 0.8m³/min, 5.5kw |
Dimension & weight | 1685*1300*2005mm; 550kg |
| BOXING MACHINE | |
Model | LD200ZH |
Paper type | 250-400g/²(Boxes need come with pre-fold over) |
Capacity | 30-60 boxes/min |
Box type | Gusseted tongue type; Glue spray type |
Count way | Fixed number type; Numerable type; Manipulator counting |
Boxing way | Orderly type; Unorderly type |
Air & Power | 0.5-0.8Mpa, 0.3m³/min, 220V, 50/60HZ, 2.0KW |
Workflow | Box open - Bag packing - Check weigher - Counting - Boxing- Fold ears - Fold page - Gusseted tongue/Glue spray - Finish |
After receiving your inquiry,We will send you the quotation as soon as possible.
