Application:
It suitable for a pharmaceutical industry like, Cough syrup, alcohol, pesticides, disinfectants, eye drops and so on.
Packaging Material:
Glass, Metal, Paper, Plastic, Wood, Other
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:
System control, data can be adjusted and stored, simple operation.

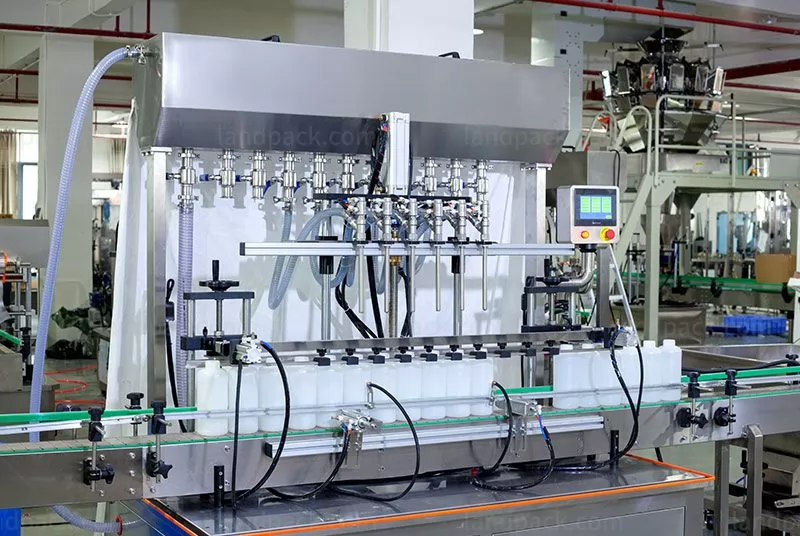

Use drip proof stainless steel filling head and photoelectric induction.

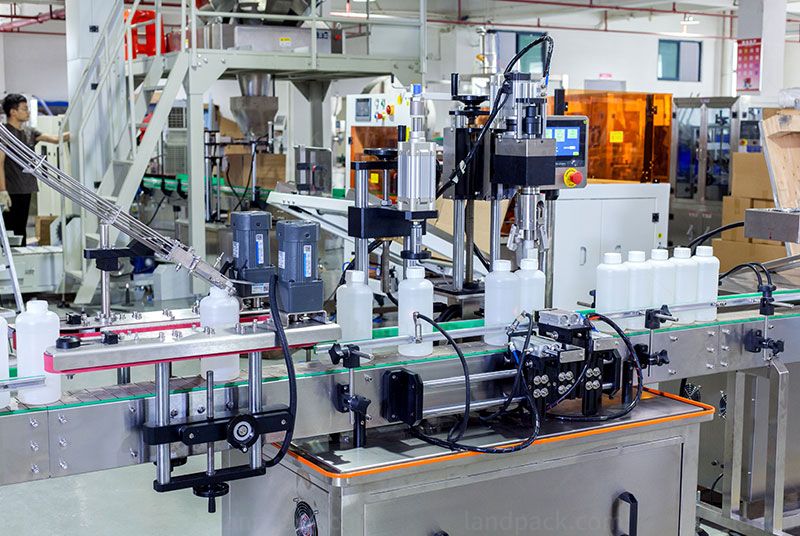

Tracking capping head is controlled by servo motor stable performance and reliable operation.
The electric eve uses advanced photoelectricity Easy adjust the position and angle. fast and stable.
The connecting shaft connects the motor shaft and the filling support shaft. Stable and easy to install.
Model | LD-004 | LD-006 |
Filling range | 50-1000ml | 50-1000ml |
Filling speed | <10-25 bottles/min(Base on100-500ml) | <20-35 bottles/min(Base on100-500ml) |
Measurement accuracy | ±1% | ±1% |
Power | 380V,220V、50Hz / 2kw | 380V,220V、 50Hz / 2.5kw |
Gas consumption | 0.6mpa-0.8mpa | 0.6mpa-0.8mpa |
Weight | 600kg | 650kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
