Application:
1. Any product that can pack in a bag, such as pickles, pickled cucumber, kimchi, fish, poultry, meat, grains, and other food items.
2. Solid species: candy, peanut, green bean, pistachio, crystal candy, brown sugar, cookie, cake, daily commodities, cooked food, pickles, puffed food, etc.
3. Granule species: grain, refined monosodium glutamate, granular drug, capsule, seed, condiment, granulated sugar, chicken essence, melon seeds, nuts, pesticide, fertilizer, feed, etc.
4. Liquid species: detergent, fruit juice, miller wine, soy sauce, vinegar, drinks, etc.
5. Thick liquid species: chili sauce, tomato sauce, peanut butter, jam, bean sauce, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristic
Bag Types:
These machines can work with pre-made bags of the following types:
Stand-up pouches or Doypack pouches with or without zippers
3-side sealed pouches with or without zippers
4-side sealed pouches with or without zippers
Filler Options
Volumetric Cup Fillers
Multi-head Weigher
Counting Fillers
Vibrating Fillers
Customized filler for fish, poultry, and other meat items
Machine Options
Hole punch device
Gas flush device
Middle capping device
Zipper opening device
Vertical bag loading system
Horizontal bag loading system
Inline check weigher
Dimple plated contact parts for sticky products
Teflon plated contact parts for highly sticky products
Metal detector at output conveyor

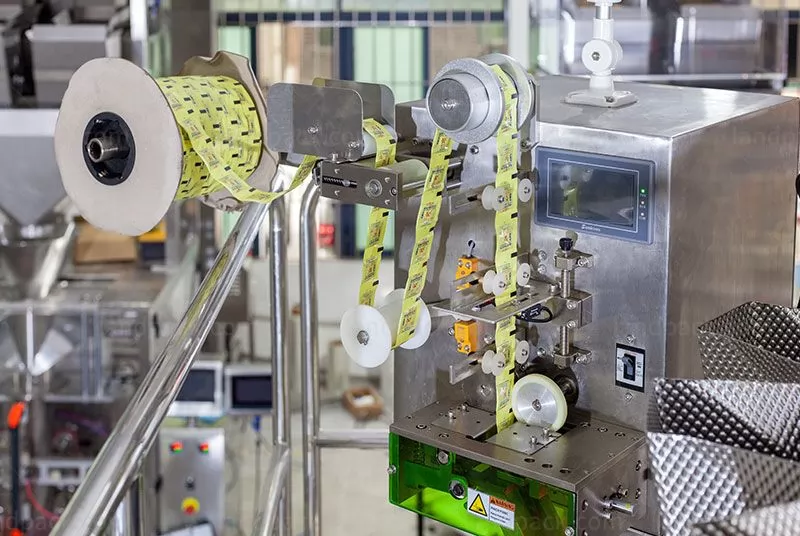

Date code printer
Industrial inkjet printer
Laser coder etc. is among many options available.
Build Material Options
SS304 stainless steel based product contact parts for general food/cosmetics/pharmaceutical industries
SS316 corrosion-resistant stainless steel-based product contact parts for highly corrosive products like salt, chemicals, etc.
Optional Related Equipment
Raw Material Handling Equipment: Belt Conveyors, Bag Splitting Machines, Large Bag Splitting machine directly from pallets
Industrial Powder and Grain Mixers: Ribbon Mixers, Paddle Mixers, Plow Mixers Open Type Mixers
Powder Screw Conveying Equipment: Screw Conveyor, Belt Conveyor, Bucket Conveyor etc.
Cartoning & Boxing Machines
Box Shrink Wrapping Machines
Palletizing Robots: Cartesian Robots, Six-Axis Robots
In-line Pallet Stretch Wrapping and Labeling Machine
Possibility of machine integration with ERP system. (SAP, Microsoft Dynamics, and other ERP software)
SCADA integration
Agitator/mixer for liquid or paste products
Product counter and stacking belt conveyor
Rotary table for the convenient collection of the finished products
Extra filler equipment for different powder, granular, liquid, or part type products packaging in a single machine. The choices are: volumetric cup filler, 2-head/4-head linear weigher, piston pump filler, auger filler, tablet counting filler, and vibrating filler
Air compressor
Standards
In accordance with CE Standards
Optional accordance with OSHA accredited NRTL Certification for USA and CSA for Canada
| Model | LD-8200V |
| Bag Size | Width:70-120mm/120-200mm, Length:80-160mm/150-300mm |
| Filling Volume | 10-500g (Depending on the type of product) |
| Capacity | 30-100bags/min (The speed depends on the type of products and packaging material used)The highest can be 100 packs / minuteZipper Bag The highest can be 40packs/minute |
| Package Accuracy | Error≤±1% |
| Total Power | 2.5KW/5.5kw (220V/380V,3PH,50HZ) |
| Dimension | 2100*1400*1700 mm/2600*1900*1700(Length*Width*Height) |
| Weight | 1600KGS/3000kgs |
| Compress Air Requirement | ≥0.8m³/min supply by user |
| Pouch Type | All types of heat sealable performed side seal bags, block bottom bags, zip-lock recloseable bags, stand-up pouches with or without spout, Portable bags, zipper bags, hand luggage, edging bag 4 sides, edging bags 3 sides, paper bags, etc. |
| Application Product | 1. Any product that can pack in a bag, such as fish, poultry, meat, grains, and other food items. 2. Solid species: candy, peanut, green bean, pistachio, crystal candy, brown sugar, cookie, cake, daily commodities, cooked food, pickles, puffed food, etc. 3. Granule species: grain, refined monosodium glutamate, granular drug, capsule, seed, condiment, granulated sugar, chicken essence, melon seeds, nuts, pesticide, fertilizer, feed, etc. 4. Liquid species: detergent, fruit juice, miller wine, soy sauce, vinegar, drinks, etc. 5. Thick liquid species: chili sauce, tomato sauce, peanut butter, jam, bean sauce, etc. |

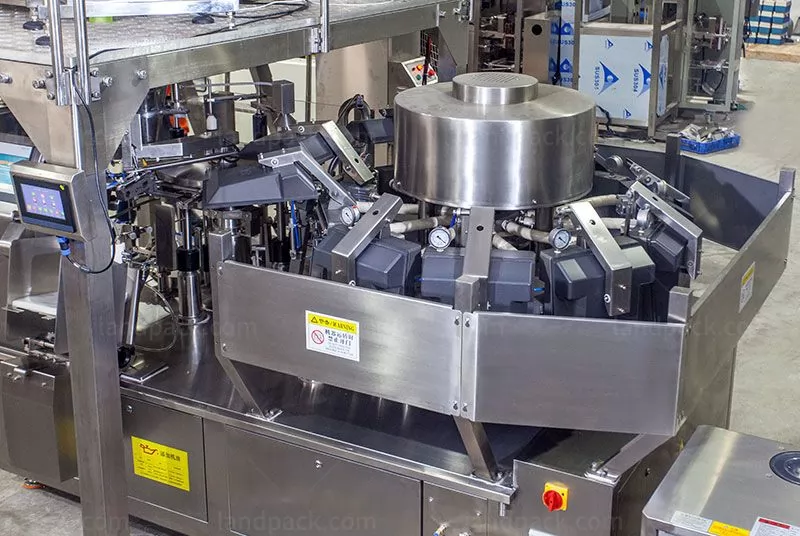

| Work Process | Station 1 Giving Bag Feed many pouches or bags in the bag magazine, our main bag magazine can move up and down, you can feed bags very easily when it moved down, and when it moved up, there is a mechanical arm with two vacuum caps that will take bag up and then transmit it to the mechanical gripper on the rotary table. Station 2 Date Printing (option)Station 3 Opening BagTo open stand (flat) pouches from top and bottom with two sets of vacuum caps. Station 4 Filling and consolidating 1Measured its weight or volume by scales. There is an opening detection device inserted into the open bag or pouch to expand it and detect if it is open or not. Station 5 Filling and consolidate 2(Option)Station 6 Bufferingto make the bag straight and to prevent material out from bagStation7 Vacuum and sealing transform to vacuum equipment Station 8 Forming and OutputThese 8 stations can change their working function as customized design |
After receiving your inquiry,We will send you the quotation as soon as possible.
