Application:
widely used in medicine, daily chemical, cosmetics, food, chemical and other industries, such as ointment, adhesive, AB glue, etc. filling and sealing.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging samples:

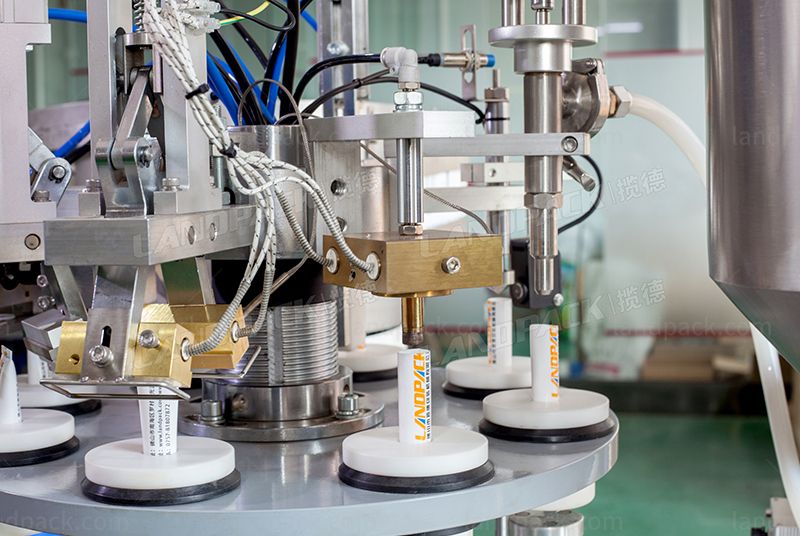

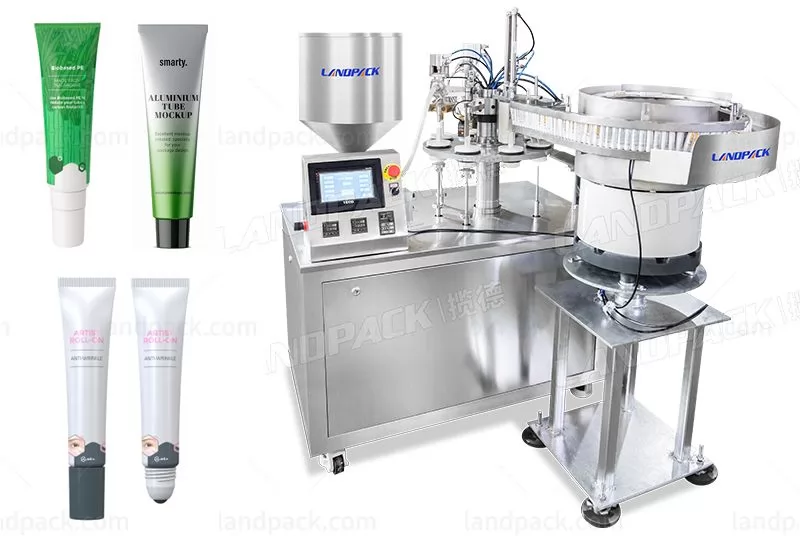

1.With 8 stations and matching with manipulator, the machine is able to meet different type of sealing requirements of tube. It is a multi-purpose machine.

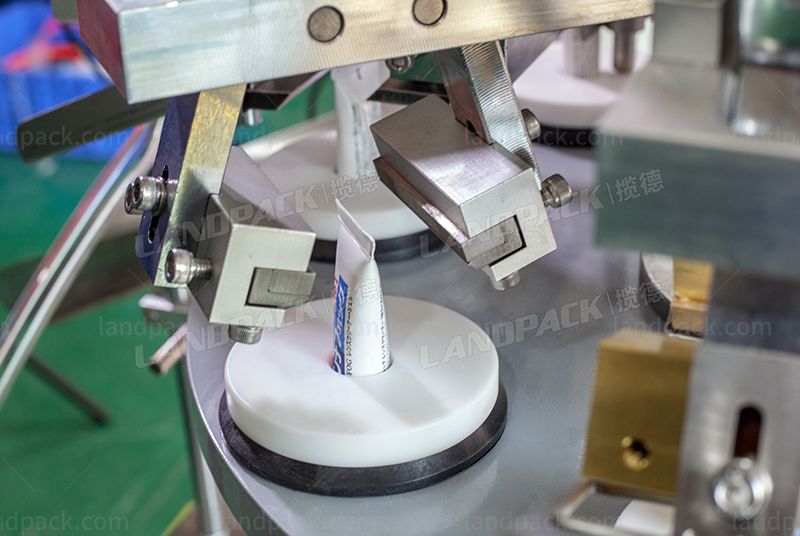

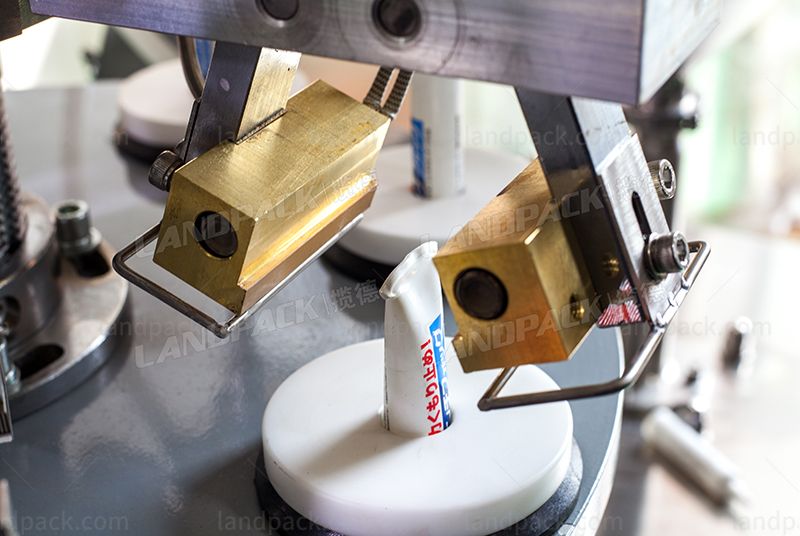

2.Tube feeding, eye marking, tube interior cleaning (optional), material filling, sealing (tail folding), batch number printing, finished products discharging can be performed automatically (the whole procedure).
3.Servo control makes it precise and convenient to adjust the filling amount by touch screen.
4.According to the different length of the tube, height of tube chamber can be adjusted easily by motor. With external reversal feeding system, makes tube charging more convenient and tidy.
5.The mechanical linkage photo sensor precision tolerance is less than 0.2mm.
6.Photo-electronic, electric, pneumatic integrative control is applied with the machine. No tube, no filling.
| Model | LD-FW-018 |
| Tube Material | Plastic Tube/ Laminated Tube/ Alumirnum Tube(customize) |
| Tube Diameter | 15''-60'' |
| Tube Length | 60-250mm(customize) |
| Filling Range | 5-280ml/pcs(adjustable) |
| Filling Accuracy | ≤±1% |
| Speed | 50-60pcs/min(adjustable) |
| Air Pressure | 0.55-0.65Mpa |
| Motor Power | 2KW(380V/50Hz 3PH) |
| Sealing Power | 3KW |
| Dimension | 2850*1500*2200mm |
| Weight | 1200kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
