Application:

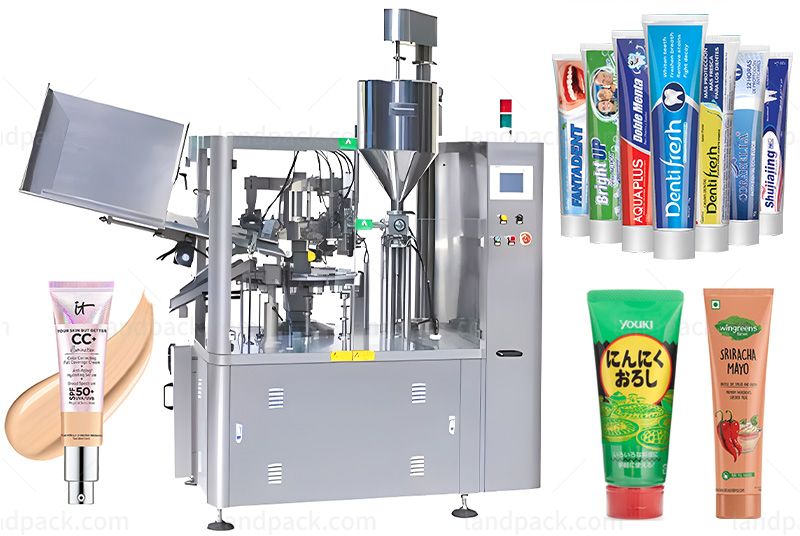

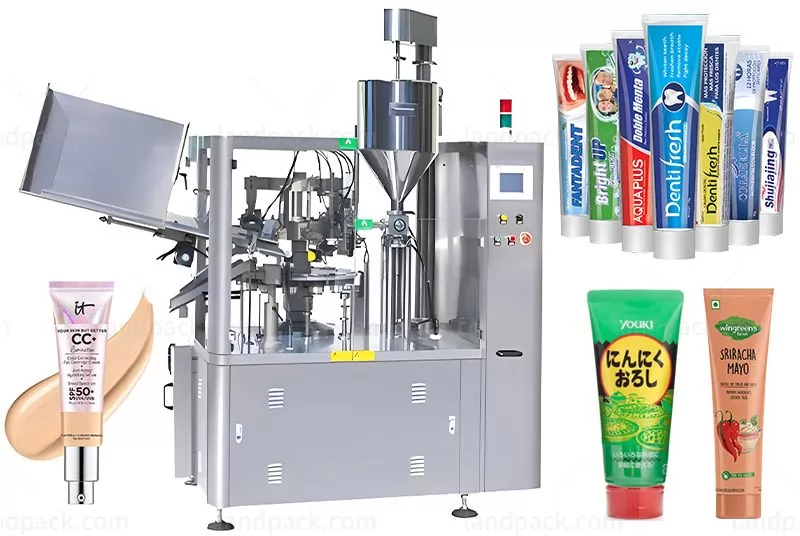

This plastic soft tube filling sealing machine can fill and seal plastic tubes and lami tubes. It is widely used in the cosmetic, cream, lotion, medicine, lubricants, adhesive and shoe polish, and food industries.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Examples:

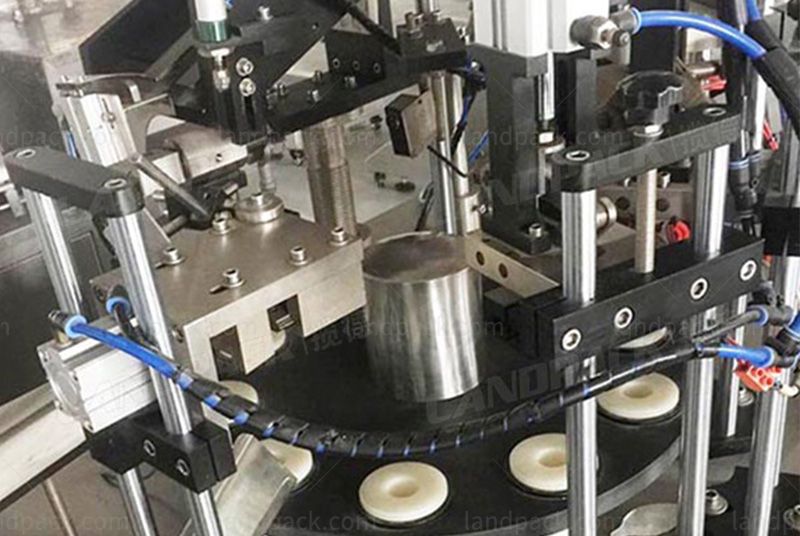

1.The Product has 12 locations and matches with the manipulator, the machine is able to meet different types of sealing requirements of plastic tubes, and laminated tubes. It is a multi-purpose machine.
2.Tube feeding, eye marking, tube interior cleaning (optional), material filling, sealing, batch number printing, and finished product discharging can be performed automatically (the whole procedure).
3.With external reversal feeding system, makes tube charging more convenient and tidy.

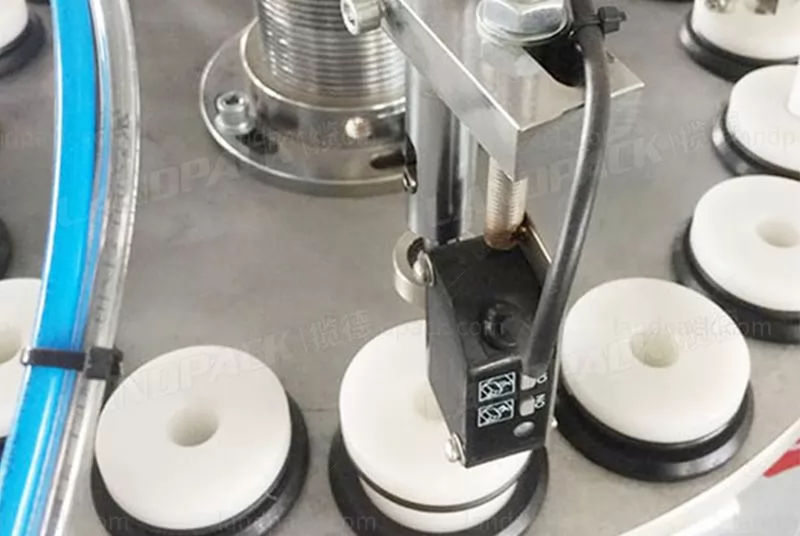

4.The mechanical linkage photo sensor precision tolerance is less than 0.2mm. The chromatic aberration scope between the tube and the eye mark is reduced.
| Model | LFF-FW-T10 |
| Tube Material | Plastic tube, laminated tube |
| Tube Diameter | Φ5mm-Φ50mm |
| Tube Length | 50-240mm (customizable) |
| Filling Volume | 5-250ml/piece (Adjustable) |
| Filling Accuracy | ≤±1% |
| Product Capacity (Pcs/min) | 60 pcs/min |
| Air Supply | 0.55-0.65Mpa |
| Motor Power | 4kw (380V/220V 50Hz) |
| Heat Sealing Power | 5kw |
| Overall Dimension(mm) | 2807*1240*1900mm (L*W*H) |
| Machine Weight (kg) | 1100kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
