Application:

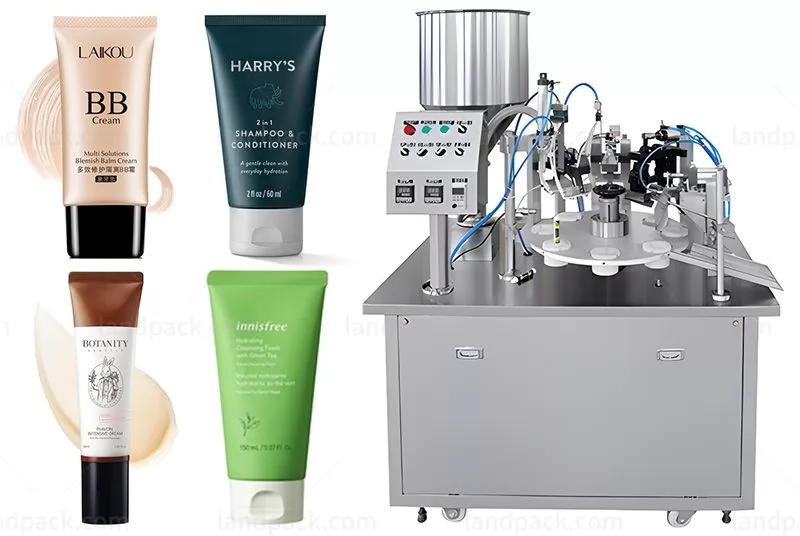

This plastic soft tube filling sealing machine can fill and seal plastic tubes and plastic-aluminum laminated tubes. It is widely used in the cosmetic, cream, lotion, medicine, lubricants, adhesive and shoe polish, and food industries.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Examples:
1.Compact design and semi-auto tube feed. The driving part is fully closed.
2.Tube washing and feeding marking identification, filling, folding, sealing, code printing, and finished product output are all conducted by the control system.
3.Tube washing and feeding are conducted pneumatically, accurately, and reliably.
| Power supply | 220V±10％50Hz |
| Power consumption | 400w * 2 (heating outside the seal) |
| Air source: air supply pressure | air supply pressure 0.6-0.8mpa |
| Air consumption | <30dm³ / min |
| Filling volume | 50, 100, 200 (ml) |
| Production capacity | 20-30 pieces/min |
| Measuring accuracy | <2% |
| Dimensions | 1230mm * 700mm * 1400mm |
| Machine weight | 600kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
