Application:

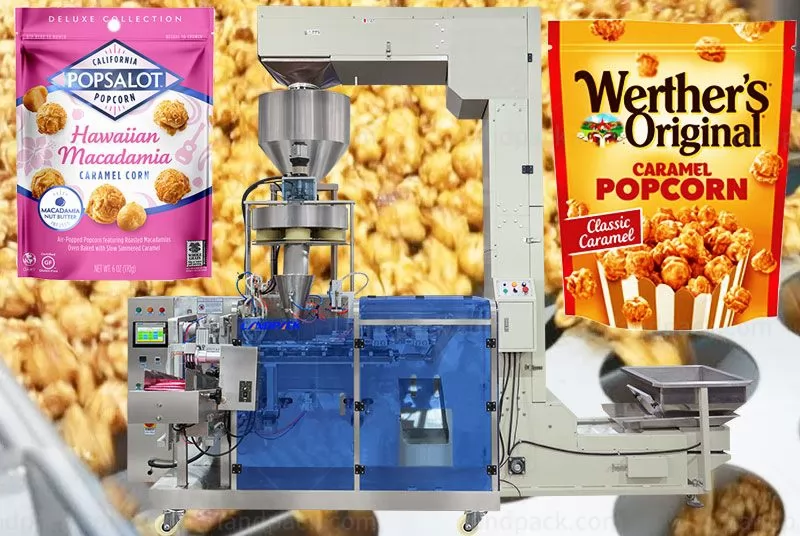

Automatic Popcorn Horizontal Form Fill Seal Machine LD-160AS, It is suitable to packaging small grain with good uniformity, such as popcorn, groundnut, peanut, snacks, chocolate, nuts, seeds, potato chips, peanut, pet food, dried fruit, frozen dumplings, biscuits, corn, hardware, plastic, etc.

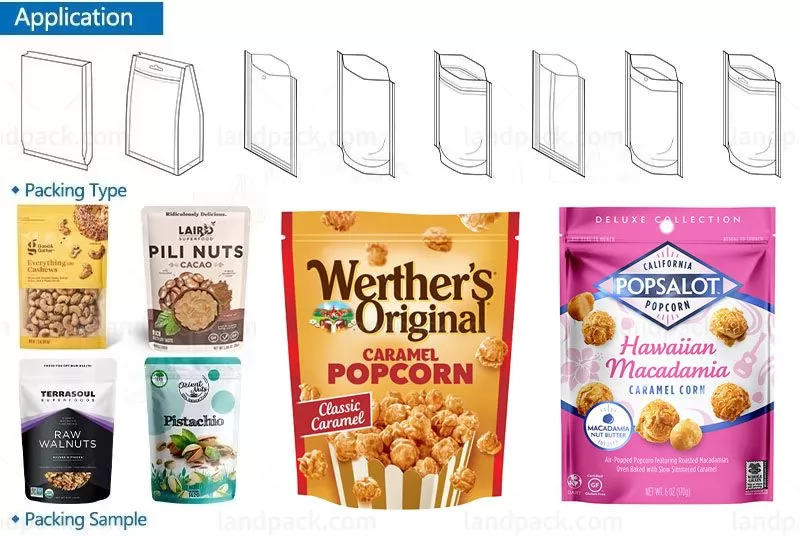

Function: doypack, zipper bag, Stand up pouch, Spouted Pouch, Fin/Lap Seal with Side Gusseted Bag, Back Seal Pouch, Hanging hole bag etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

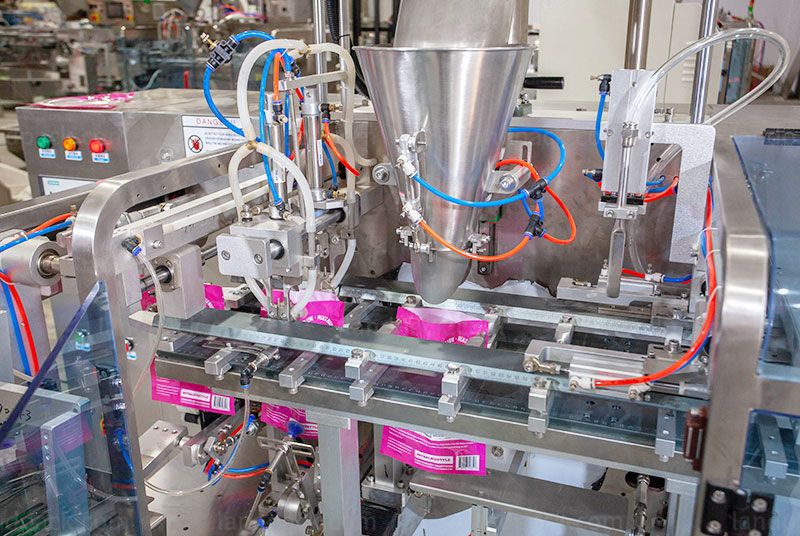

The machine suits for all kind of stand up pouch with zipper. It could help you measure and fill popcorn and snack into pouch automatically.
The whole set of machine is controlled by the touch screen and PLC controlling system, so it is very easy for the worker to operate the machine well

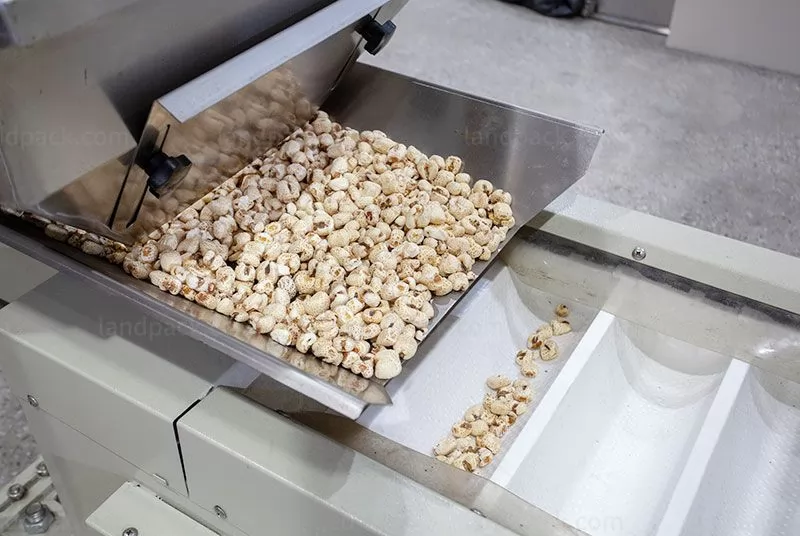

There is the Z type conveyor to transport the popcorn from the ground to the tope of storage hopper automatically and continuously
There is the nitrogen gas device in the machine, so the machine will help you fill the nitrogen gas into bag automatically.
Type | LDSP-160 | LDSP-160Y | LDSP-210 | LDSP-260 |
Bag Type | 3-side, 4 side sealing bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag etc. | |||
Bag Size | 110-230mm*80-160mm(L*W) | 70-100mm*110-230(L*W) | 100-210mm/110-320mm(L*W) | 100-260mm/110-320mm(L*W) |
Filling Range | 10g-100g | 10g-100g | 10g-1kg | 10g-3kg |
Packing Speed | 20-45bags/min(speed is determined by the product filling quantity) | 25-50bags/min(speed is determined by the product filling quantity) | 20-50bags/min (speed is determined by the product filling quantity) | 20-50bags/min (speed is determined by the product filling quantity) |
Machine weight | 800KG | 800KG | 900KG | 1000KG |
Total Power | 2.0KW | 2.0KW | 2.0KW | 2.0KW |
Work Flow | 1.Giving bag 2. Pick up the bag(coding) 3.Open the bag up and down 4.Filling 5.Heating sealing 6.Output of product | |||
Dimensions | 1750mm X 1285mm X 1360mm(L*W*H) | 2140mm X 1366mm X 1360mm(L*W*H) | 2140mm X 1366mm X 1360mm(L*W*H) | |
Collocation | Screw metering,screw elevator |
After receiving your inquiry,We will send you the quotation as soon as possible.
