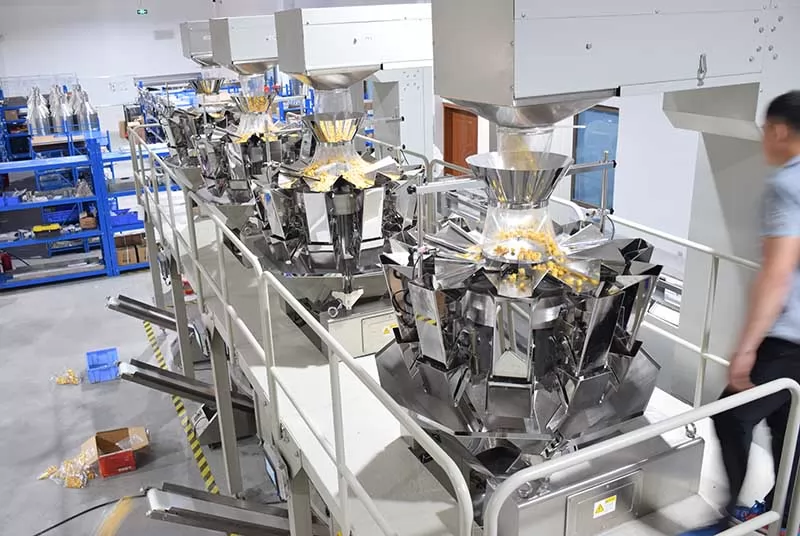

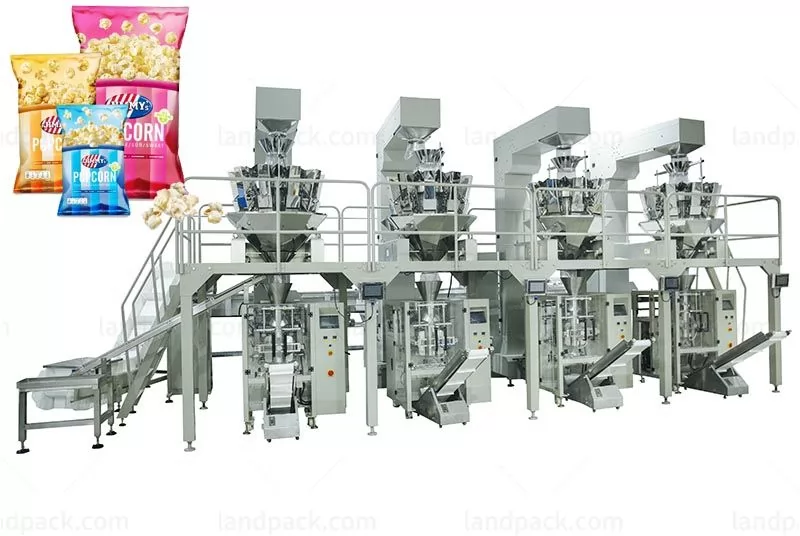

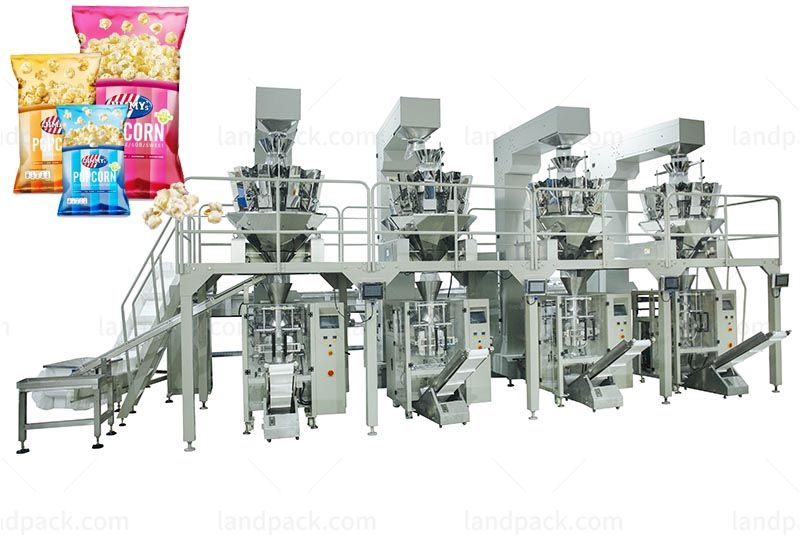

Automatic Popcorn Weighing And Packing Line

  • Application
  • Description
  • Parameter
  • Video

Application:

Suitable For Packing Puffed Food, Popcorn, Potato Chips, Crisps, Snacks, Candy, Biscuit, Sunflower Seed, Pistachio, Peanuts, Chocolate, Nuts, Pet Food, Small Metal Parts And Plastic Parts, Etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:Automatic Popcorn Weighing And Packing Line

1. This packaging solution is suitable for large production packing;

2. Economical, save costs, small footprint;

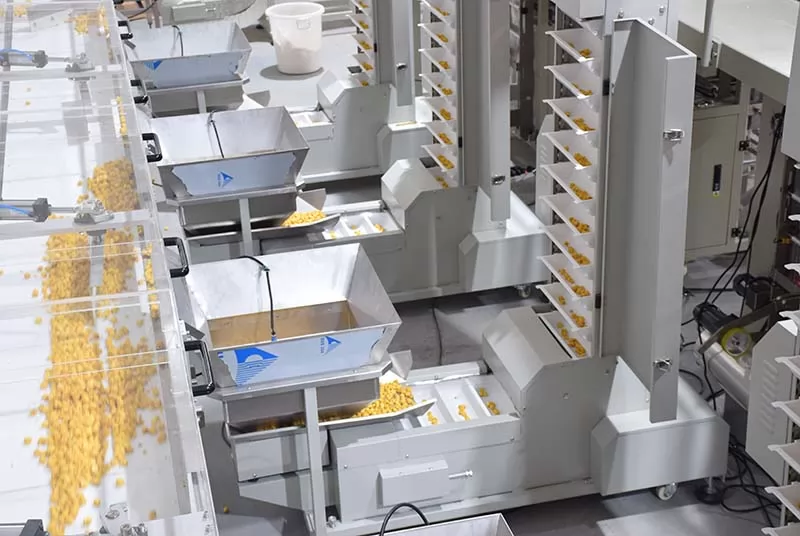

3. Horizontal belt or fastback conveying the material;

4. With large transportation, no crash, low noise and durable, reliable;

5. This whole packing system is with smooth and simple, easy to control settings for feeding, measuring, bag forming sealing, filling, labeling, output, realized high automatic connection between each procedure.

NAMEAutomatic Popcorn Weighing And Packing Line
CapacityMax. 80-90 bags/min/machine according to the bag sizes,
it is also affected by the quality of film and bag length
Accuracy≤±1%, depending on the measuring equipment & materials
Bag size(L)50-330mm(W) 50-200mm
Film widthMax. 420mm
Bag typePillow bag mainly ,linking bags, punching hole bag,gusseted bag optional
Pulling belt typeDouble-belts pulling film, double servo
Filling range10-1000ml
Film thickness0.04-0.09mm
Package materialBOPP/VMCPP,PET/PE,BOPP/CPP, PET/AL/PE etc
Air consumption0.8Mpa 0.3m3/min
Total power30 Kw (depend on the specific circumstances.)
VoltageSingle phase220V, three phase380V, 50HZ(depend on the end users' country using, customized available)
Air compressorPls contact us for sure (due to difference setting and usage)

After receiving your inquiry,We will send you the quotation as soon as possible.
