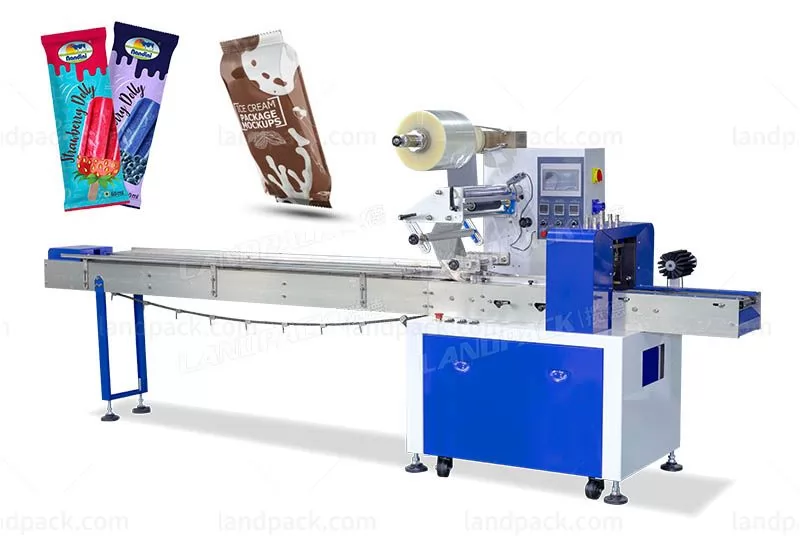

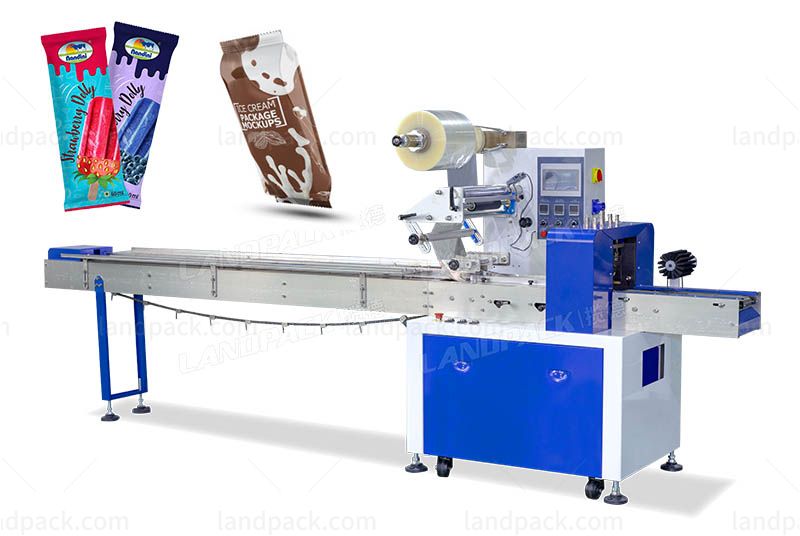

Automatic Ice Cream Popsicle Flow Packing Machine

  • Application
  • Description
  • Parameter
  • Video

Application:

Suitable for the packing of popsicles, ice cream, soft, long strips, and loose objects such as towels, paper towels, noodles, egg rolls, sausages, squid,  soft candy, biscuits, and fresh fruits.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:应用图.jpg

Dual frequency conversion control, Bag length can be set and cut in one step,saving time and film.

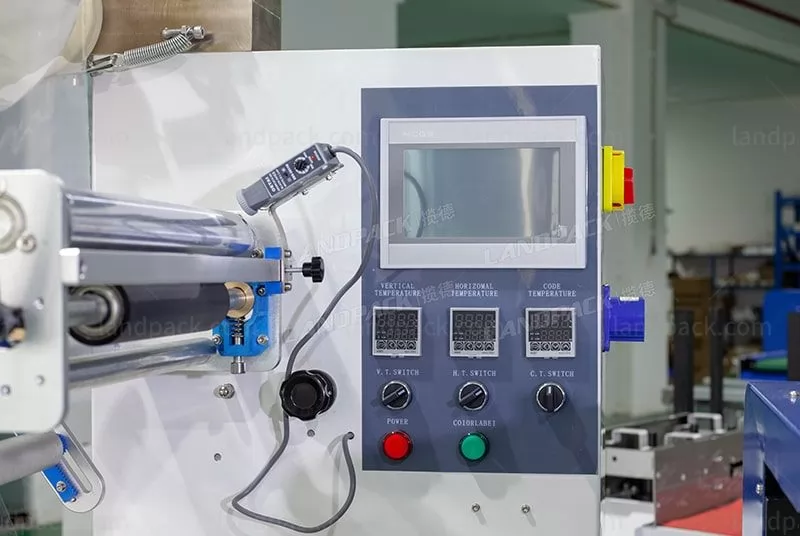

Interface features easy and quick setting and operation

Self failure diagnosis, clear failure display

High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.

Temperature independent PID control, more suitable for packaging different materials

Positioned stop function, without sticking knife or wasting film.

Simple driving system, reliable working, convenient maintenance.

All control is realized through software,easy for function adjusting and technical upgrade.

ModelLP-250BLP-350BLP-450BLP-600B
Film widthMax250mmMax350mmMax450mmMax600mm
Bag length65-190mm or120-280mm65-190mm or120-280mm150-450mm160-500mm
Bag width 30-110mm 50-160mm50-180mm100-280mm
Product heightMax.40mmMax.40mmMax.75mmMax.110mm
Film roll diameter Max.320mm
Packaging rate40-230 bags/min40-180bags/min30-150Bags/min20-150 bags/min
Power220V,50/60Hz,2.4kw220V,50/60Hz,2.6kw220V,50/60Hz,2.8kw220V,50/60Hz,2.8kw
Machine size(L)3770*(W)720*(H)1420mm(L)4030*(W)770*(H)1420mm(L)4030*(W)820*(H)1420mm(L)4030*(W)970*(H)1500mm
Machine qualityAbout 500kgAbout 580kgAbout650kgAbout680kg
Remarksoptional air filling device)/optional angle folding)
Film material)OPP/ PE/ PVC/ OPP/ CPP/ PT/ PE/ KOP/ CPP/ Aluminum Coating Film/ Aluminum Film
