Application:

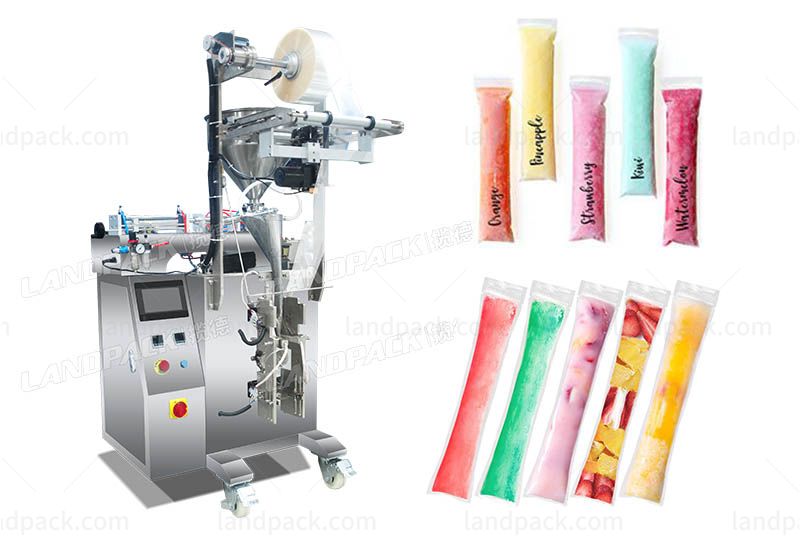

Suitable for packing liquid popsicle, cream, juice, jelly, sauce, liquid, hand soap, shampoo, cooking oil, lotion, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
PLC control, the function is more stable, adjustment any parameters not need stop machine.

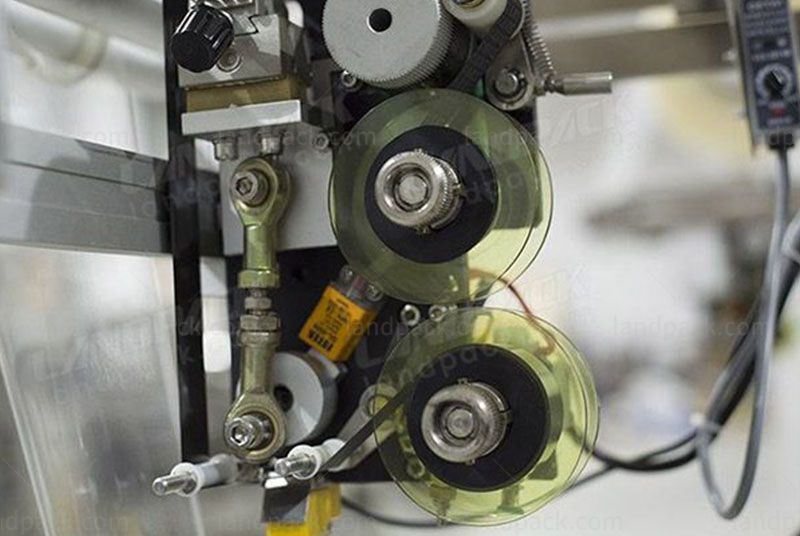

Step motor pulling film, position accurately.
Temperature independent control system, precision get to + 1C

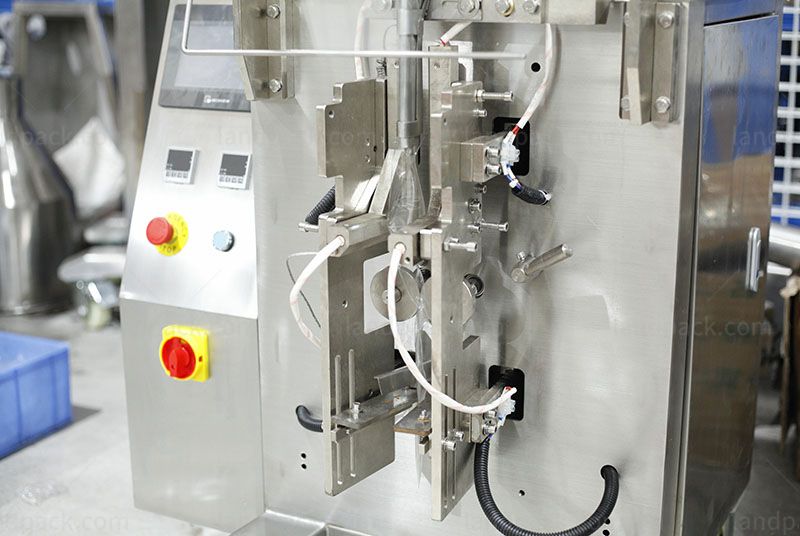

Horizontal, vertical temperature control , suitable for various of Laminated film
Various bag types: pillow sealing ,3 side seal, 4 side seal.
| Model | LD-320L | LD-380L |
| Film width | 120-320mm | 180-380mm |
| Bag length | 50-200mm | 60-280mm |
| Bag width | 50-150mm | 60-180mm |
| Diameter of film roll | Max.300mm | Max.320mm |
| Packing speed | 35-70bag/min | |
| Measuring range | 50-500ml | 50-750ml |
| Film thickness | 0.04-0.07mm | |
| Power | 220V 50/60Hz 2.2KW | 220V 50/60Hz 2.5KW |
| Machine size(L*W*H) | 970*680*1950mm | 1100*800*2150mm |
| Machine weight | About 300kg | About 350kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
