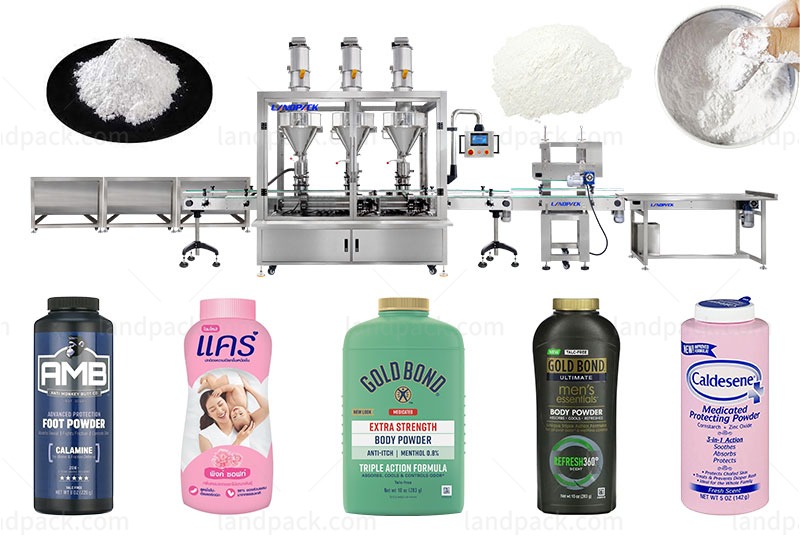

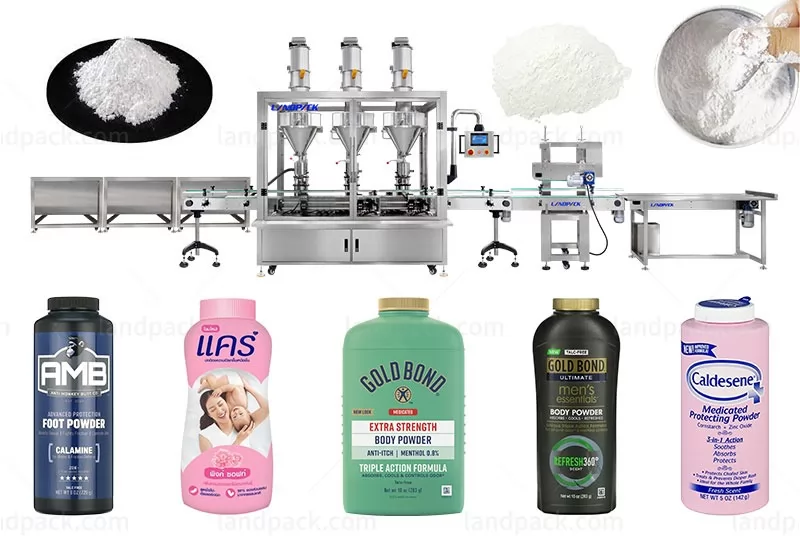

Application:
This powder filling line is primarily designed for filling a wide range of powder materials into bottles with precision and efficiency. It is ideal for products such as baby powder, talcum powder, milk powder, coffee powder, protein powder, grain powder, tea powder, chili powder, spice powder, and more, ensuring consistent, high-quality packaging for various industries.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Fully automatic solution integrating feeding, weighing, filling, servo capping, sealing, and labeling.
2. Servo capping machine with adjustable torque for tighter sealing.
3. High speed and stable performance.
4. Easily change specifications and adjust filling volume directly on the touchscreen.

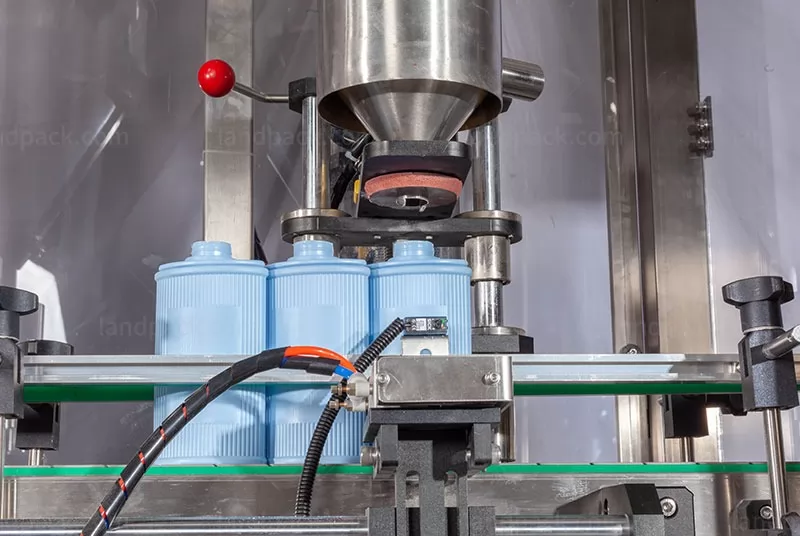

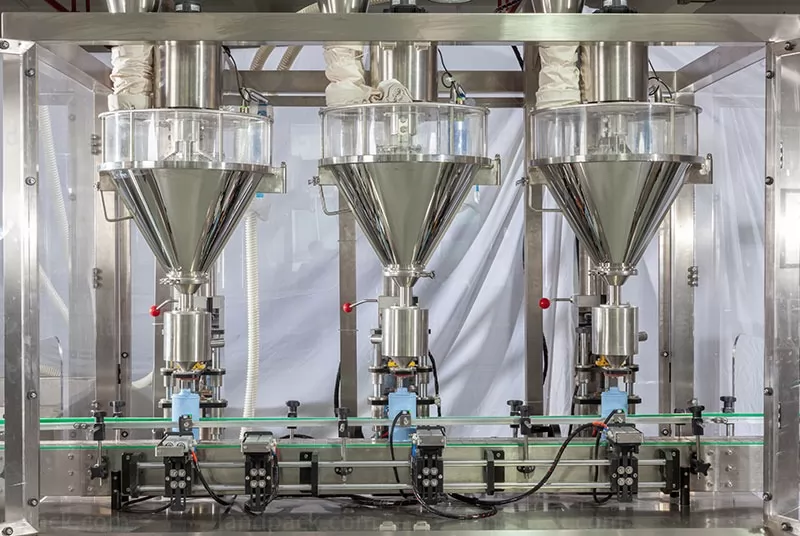

5. Three-head powder filling machine with a servo-controlled auger system ensures high filling accuracy.
6. Vacuum feeder transfers powder to the filling machine, saving more space.
7. Bottle photoelectric detection – no bottle, no filling, no capping, no labeling.
Workflow:
1. Powder tank
2. Vacuum feeder, transfer powder to powder filling machine
3. Three heads powder filling machine, that can filling three bottle in time
4. Cap feeder by hand
5. Press capping machine
6. Press capping machine
| Powder Mixer | |
| Part name | Powder mixer 200L |
| Material | SS304 |
| Composition | The horizontal ribbon mixer consists of a U-shaped container, ribbon mixing blades, and transmission parts |
| Feature | Horizontal cylinder, U-shaped mixer cylinder |
| Full volume | 250L |
| Effective capacity | 200L |
| Rotating speed | 46rpm |
| Power supply | 3P AC208-415V 50/60Hz |
| 3 Heads powder filling machine | |
| Filling heads | Three screws dosing device |
| Material of Nozzle | SS304, meets GMP production requirements |
| Material of machine | SS304, 1.5mm thickness |
| Filling Speed | 35-40 bottles/minute. Can be adjusted to prevent bottle overflow |
| Filling form | Three screw filler |
| Filling sensor | Included, No bottle no filling |
| Control method | PLC+Touch screen |
| Air consumption | 0.6MPa |
| Dust removal device | Yes |
| Cap Pressing Machine | |
| Item | Press capping machine |
| Capping Speed | 50-60 bottles/min |
| Bottle and cap size | Can be customized and adjustable |
| Air pressure(mpa) | 0.3-0.5 |
| Voltage | 220V/50HZ |
| Weight | 100 kgs |
After receiving your inquiry,We will send you the quotation as soon as possible.
