Application:
This powder filling line is ideal for a wide range of powder materials, including milk powder, protein powder, health powders, medical powders, nutritional powders, monosodium glutamate, solid beverages, icing sugar, dextrose, animal feed, coffee, solid medicaments, and dyes. It provides precise, efficient filling for consistent, high-quality packaging across various industries.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:
Features:

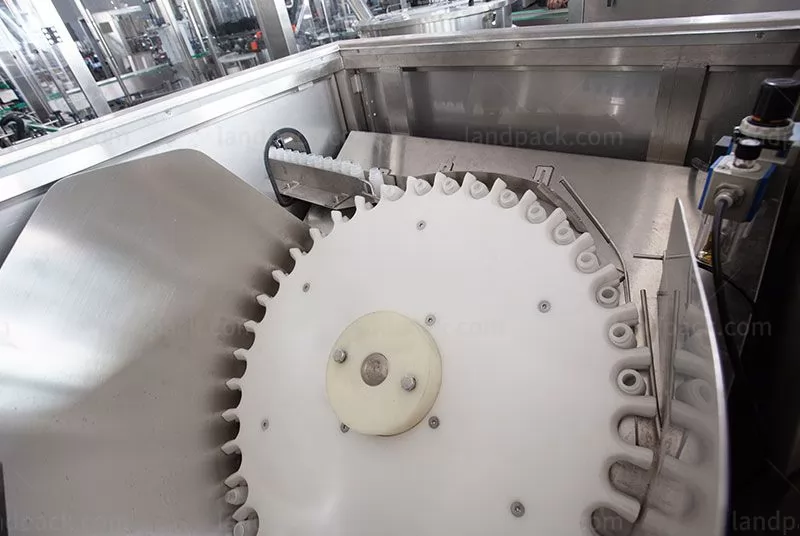

1. Automatic Bottle Sorting and Feeding Machine: Ensures quick and efficient bottle feeding for high-speed production.
2. Two-in-One Powder Filling Line: Achieves up to 90 bottles per minute, enhancing production efficiency.

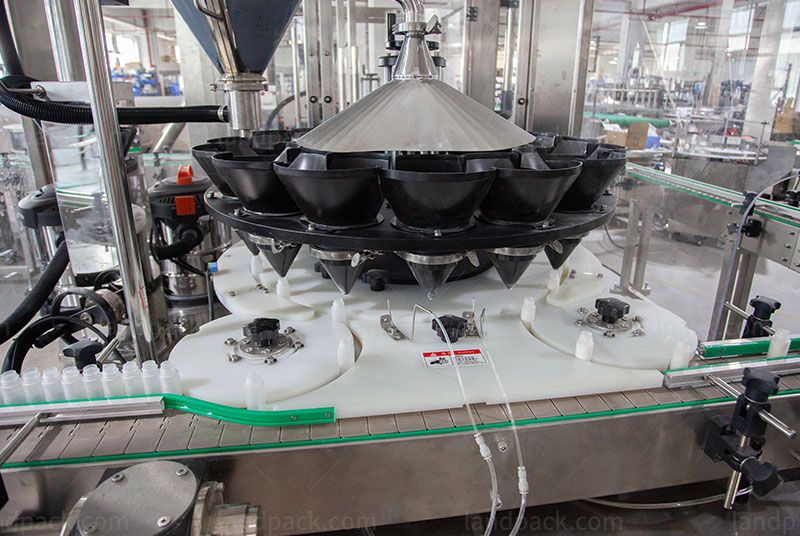

3. Rotary Continuous Powder Filler: Increases filling speed, ideal for high-demand operations.
4. Customized Inline Integration: Seamlessly combines into a single line after powder filling for streamlined workflow.
5. Vibrating Cap Feeder and Cap Pressing Device: Precisely feeds and securely presses caps onto bottles.
6. Round Bottle Labeling Machine: Designed for accurate labeling of round bottles, ensuring a professional finish.

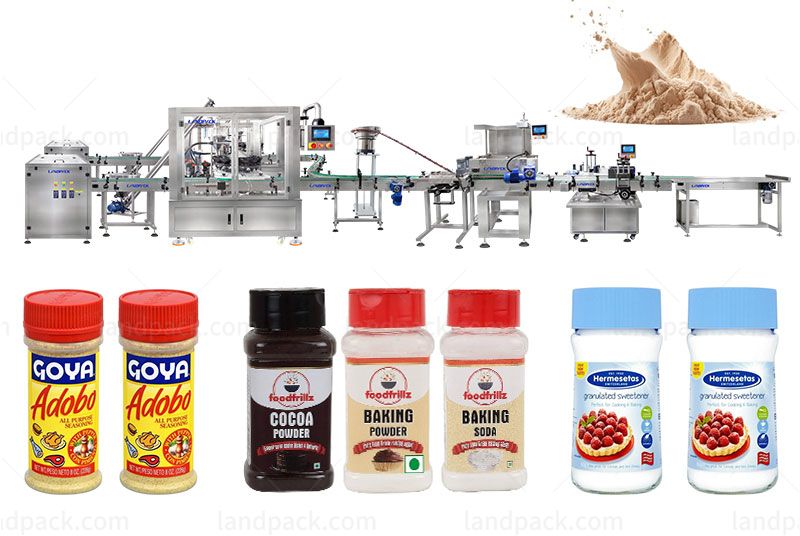

Workflow:
1. 2 sets of auger feeder
2. 2 sets of Automatic bottle sorting and feeding machine
3. 2 sets of Rotary Continuous powder filling machine
4. Combined into one line after powder filler

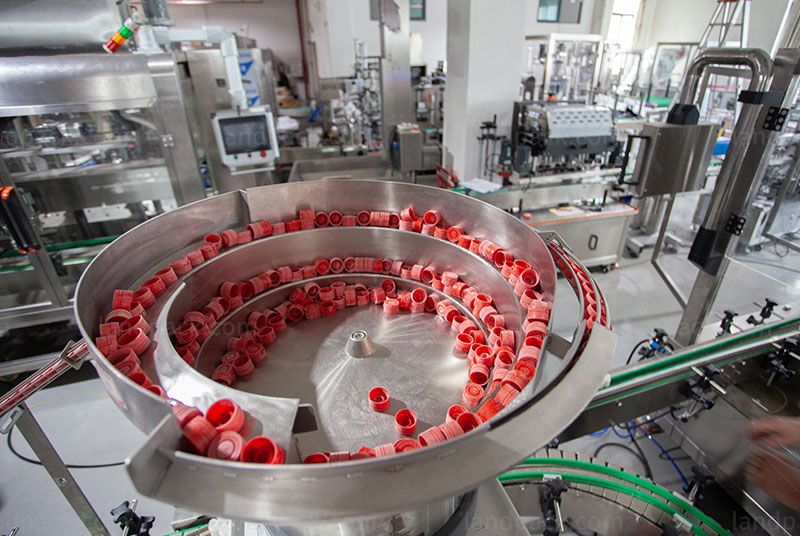

5. Vibrator as cap feeder
6. Pressing cap device to press cap tightly
7. Round bottle labeling machine
Rotary Continuous powder filling machine | |
Speed | 40-90 pcs/min |
Filling weight | 10-5000g |
Bottle diameter | Φ20mm-Φ100mm |
Bottle height | 60mm-200mm |
Filling accuracy | ±0.1-5g |
Filling head | 1-4 |
Power | 4KW |
Voltage | 220V, 50Hz |
Weight | 800kg |
Round bottle labeling machine | |
Model | LFT-YP-00 |
Labeling Speed | 20-60 bottles/min |
Labeling Accuracy | ±1mm |
Max Label Width | 100mm |
Applicable Product Size | Φ30mm-Φ80mm |
Applicable inner diameter of paper | Φ76mm |
Applicable outer diameter of paper | Max.Φ330mm |
Air Source | 4-6 KG 30L/min |
Dimension | 2000*800*1600mm |
Voltage | 220V 50 Hz 2000W |
Weight | 250KG |
After receiving your inquiry,We will send you the quotation as soon as possible.
