Application:
High Accuracy Powder Filling Machine With Anti-leakage Device, It is suitable for automatic filling of various powder products, such as Milk powder, protein powder, nutritional powder, coffee powder, medicine powder, chemical powder, meal replacement powder, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

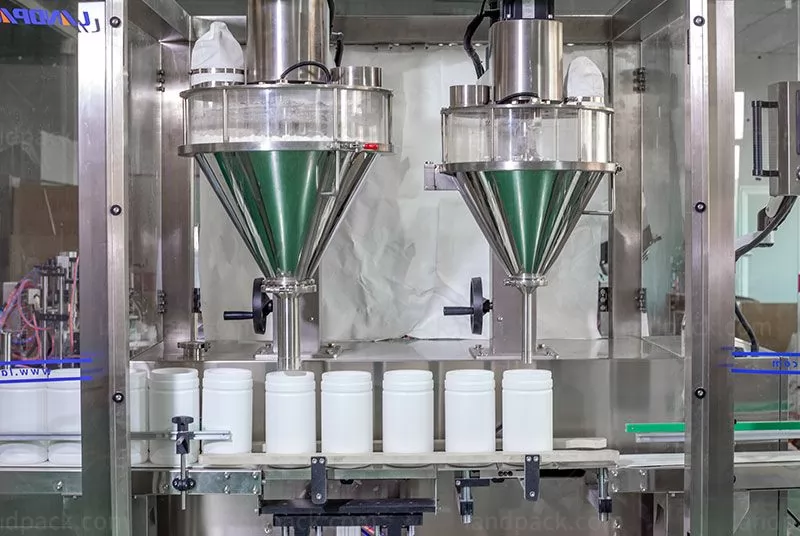

1.Fully stainless steel structure, open-type transparent hopper,can be cleaned without special tools.
2.Servo Motor & servo driver to control screw. Servo controls turntable very stable.
3.PLC control & touch screen for simple operation.
4.With weighing module.

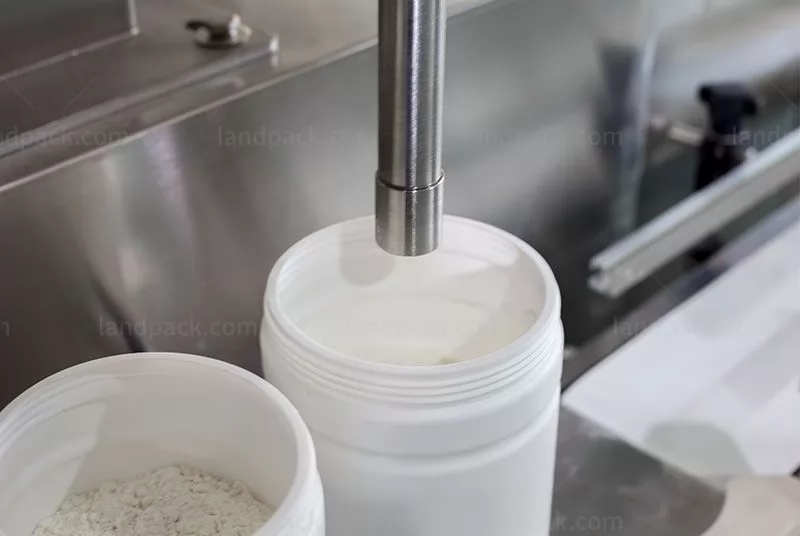

5.With pneumatic can lifting device & vibration device to avoid material spilling out while filling.
6.Weight Checking device, ensure all product qualified & no need extra selector machine.
7.Memory function with 10 sets data at most. Improve worker efficiency.
8.Screw/Auger can be changed-over to suit various material & weight.

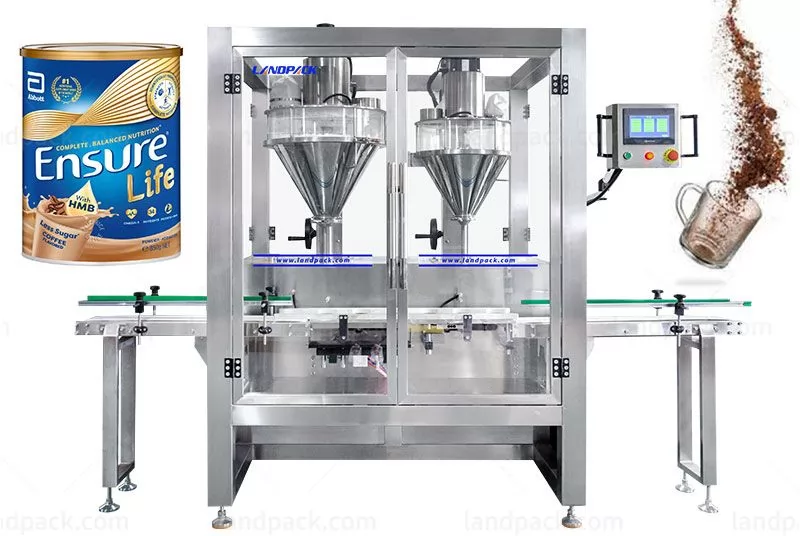

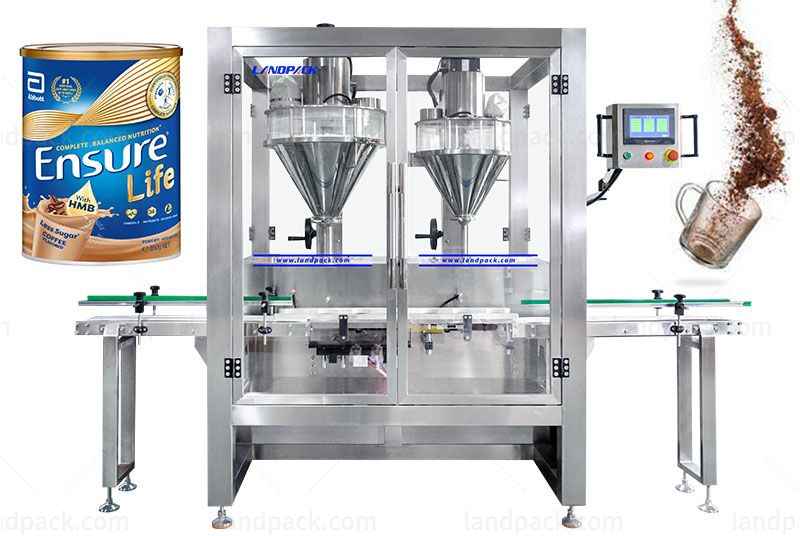

| Model | LD-PAF01 |
| Packaging materials | Milk powder, protein powder, chili powder, seasoning powder, nutritional powder, coffee powder, medicine powder, chemical powder, meal replacement powder, etc |
| Filling range | 10-5000g (Customizable) |
| Filling accuracy | ±1% (different materials vary) |
| Filling speed | 20-40bottles/min |
| Power supply | 220V, 50HZ, 5KW |
| Working pressure | 0.6-0.8MPa |
| Weight | 550kg |
| Machine size | L2006*W979*H2068(mm) |
After receiving your inquiry,We will send you the quotation as soon as possible.
