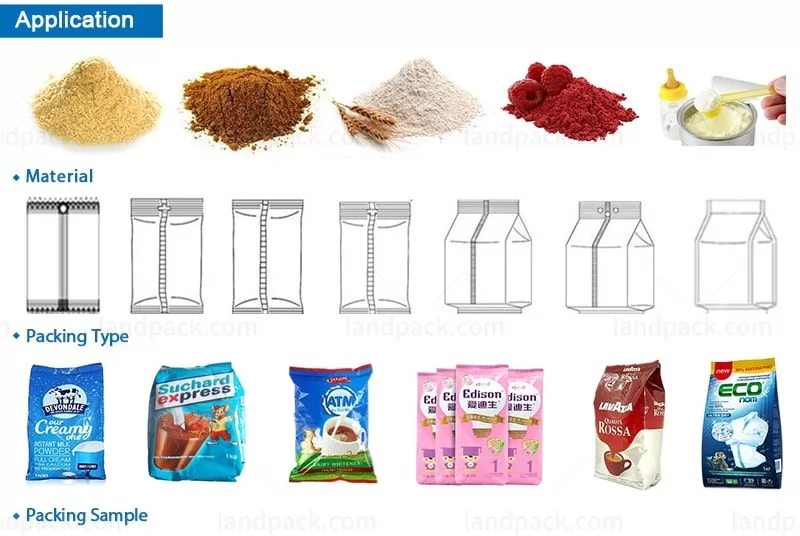

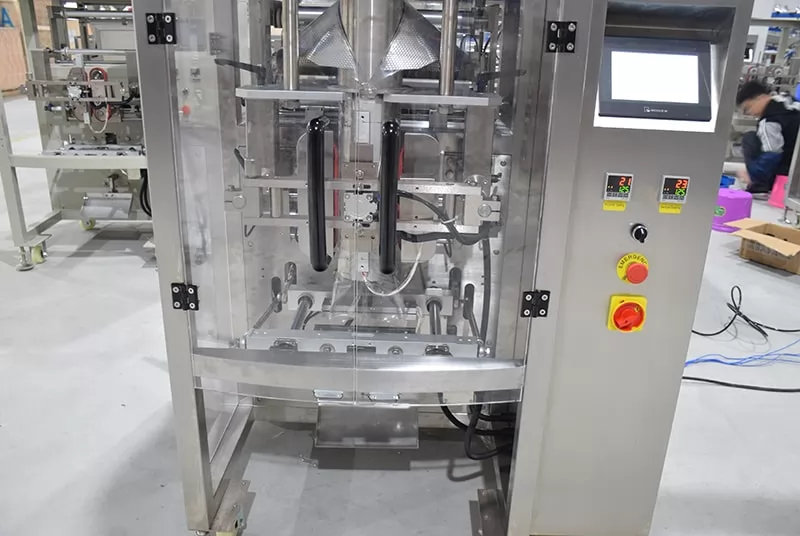

Application:
Suitable for packing fine dry powder materials,such as milk powder,spices powder,coffee powder,corn flour,laundry powder,coconut powder,fruit powder,collagen protein powder,cocoa powder,chilli powder,etc. It integrates metering, bagging, packing, sealing, date printing and counting into one.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
High precision digital weighing sensors;
PLC control system, stable and reliable;

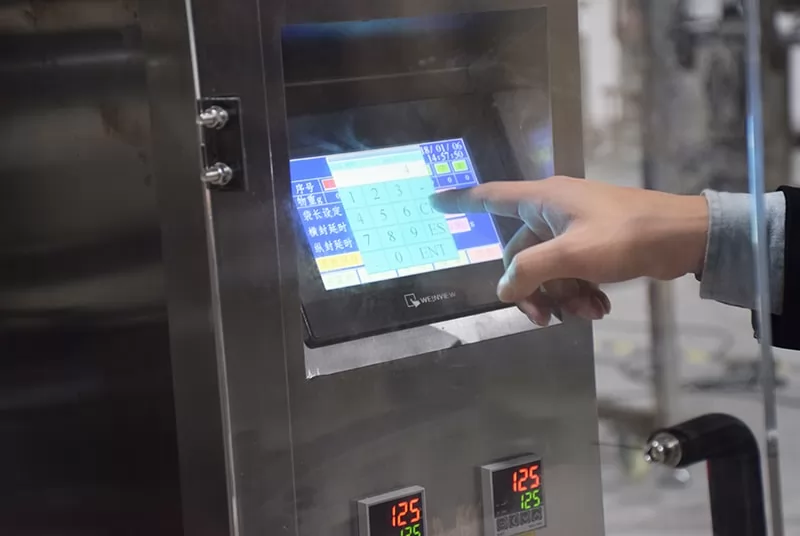

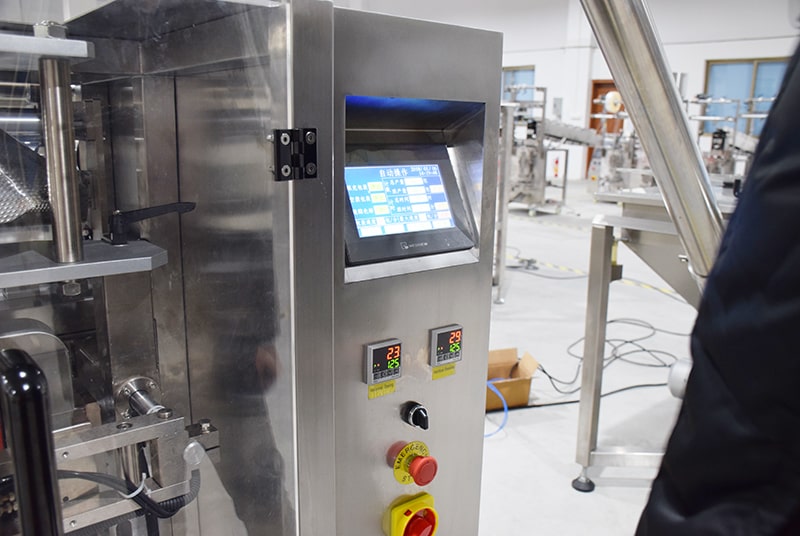

7 inch colorful touch screen;

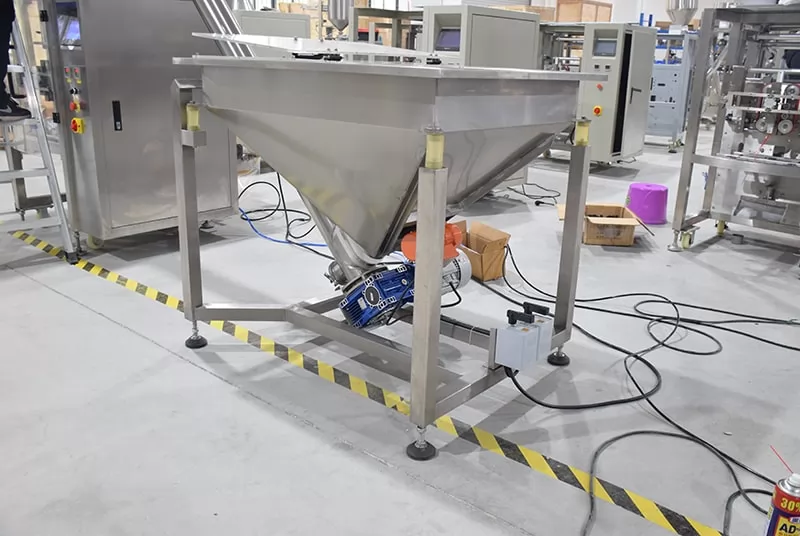

Material contact parts (storage hopper, hopper, vibration plate, weighing hopper, etc.) are to realize fast disassembly, easy to clean;
Easy to clean and maintance.
Model | LD-420 | LD-520 | LD-720 | LD-900 | LD-1050 | LD-1200 |
Film Thickness | 0.04-0.08mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm | 0.04-0.12mm |
Bag Length | 80-300mm | 80-350mm | 100-500mm | 100-600mm | 100-800mm | 100-1000mm |
Bag Width | 60-200mm | 100-250mm | 180-350mm | 260-430mm | 290-505mm | 290-580mm |
Film Roll Diameter | Max.320mm | Max.320mm | Max.320mm | 400mm | 400mm | 400mm |
Pakaging Rate | 5-60bag/min | 5-60bag/min | 5-55bag/min | 5-20bag/min | 5-20bag/min | 5-20bag/min |
Film Width | Max.420mm | Max.520mm | 150-Max.720mm | Max.900mm | Max.900mm | Max.1200mm |
Measurement Range | 150-1500ml | 5-2000ml | 4000ml | 1-25L | 1-25L | 1.5L-45L |
After receiving your inquiry,We will send you the quotation as soon as possible.
