Application:

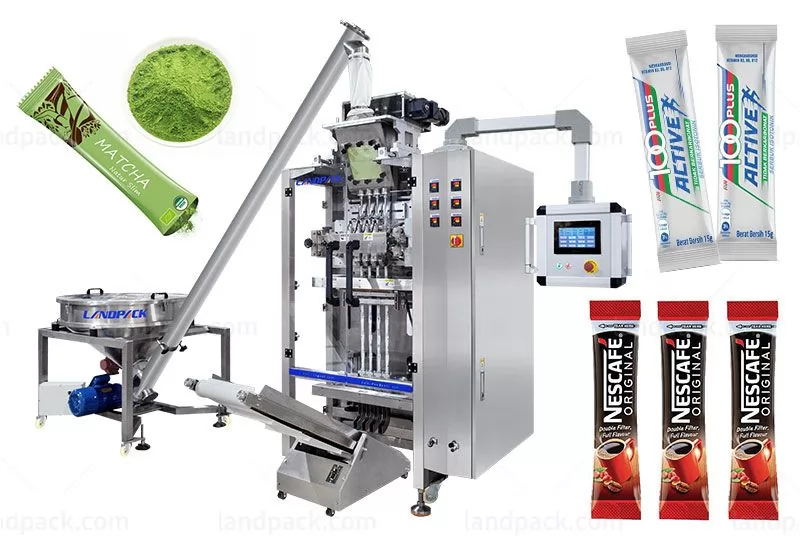

The automatic multilane powder stick packing machine efficiently packs a variety of powder products, including matcha powder, milk powder, coffee powder, health supplements, medicine powder, glucose, and nutritional powders. Designed for precision and high-speed production, it is ideal for industries requiring reliable and consistent stick pack solutions.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Multi-Lane Production: Capable of producing multiple bags simultaneously, increasing efficiency.
2. Core Functions: Includes automatic film splitting to precise positions, liquid measuring and filling, multi-lane bag forming, sealing, cutting, sensor tracking, and capacity counting.
3. Additional Features: Equipped with emergency stop, auto-stop when capacity is reached, capacity counter with reset function, ready-bag output, and manual test mode for individual steps.
4. High-Precision Photocell Sensor: Tracks film roll eye marks to cut each bag at exact positions for consistent quality.
5. PLC Control System: Manages all operational steps with high functionality for reliable and smooth operation.
| Model | LD-280BF | LD-560BF |
| Lane number | 4-6 Line | 8-12 Line |

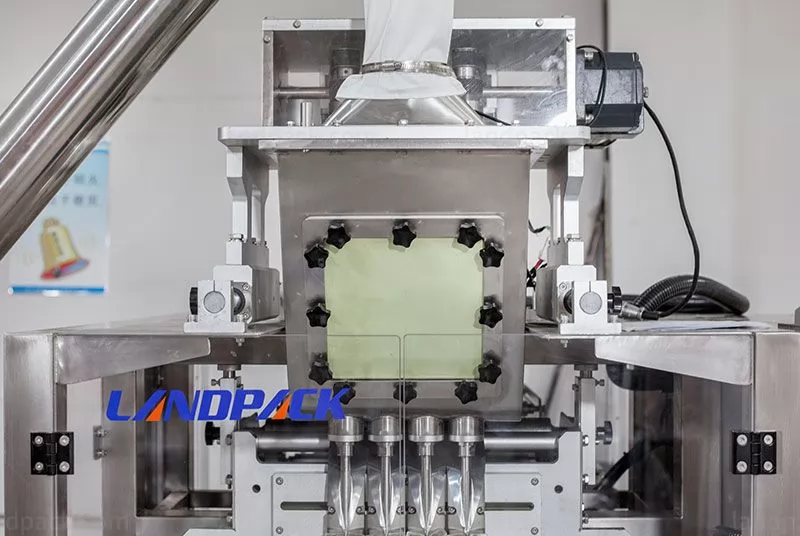

| Filling Method | Auger filling by servo motor | |
| Capacity | Max.35 cycles/ min | |
| Sachat Size | L:50-180mm; W:17-30mm | L:50-180mm; W:17-30mm |
| Film weidth & Thickness | Max.280mm, 0.07-0.10mm | Max.560mm, 0.07-0.10mm |
| Sealing type | Back sealing/Stick bag | Back sealing/Stick bag |
| Cutting type | 1. Straight cutting; 2. Zig zag cutting; 3. Round cutting; 4. Irregular | |
| Air & Powder | 0.8Mpa 0.8m3/min; 3.5kw | 0.8Mpa 0.8m3/min; 5.5kw |
| Dimension & weight | 1385*918*2005mm;350kg | 1685*1300*2005mm;550kg |
