Application:
Automatic multi-lane powder granule stick packaging and boxing production line is suitable for particles with good fluidity in food, health care, and pharmaceutical industries such as instant coffee powder, fruit enzyme powder, white sugar, granules, Chinese medicine granules, etc.
Packaging Line Composition:

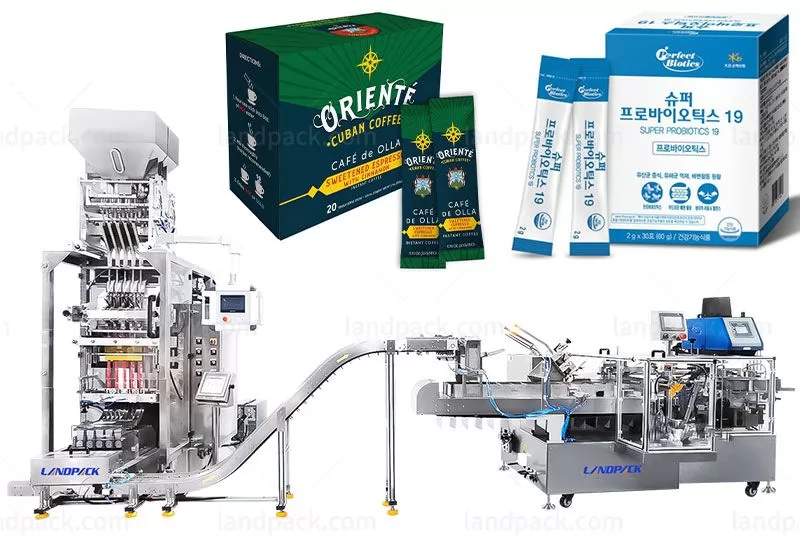

This packaging and boxing system consists of LD-280BK Multi-lane stick pack fine granule packaging machine, a sorting bag equipment and LD200ZH boxing machine. It can realize stick packed packaging into a box.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1.It can automatically finish measuring, bag making, sealing, cutting, counting, finishing product conveyor, and other functions.
2.The heat-generating parts and moving parts are hidden in the protective cover.
3.The contact part of the box and material is made of stainless steel, which meets the requirements of medicines and food production.
4.The equipment is equipped with casters for easy handling and movement.
5.Automatic alarm protection, saving materials, and no wasting film.
| MULTI-LANE STICK PACK GRANULE PACKAGING MACHINE | |
Model | LD280BK |
Lane number | 2-6 Lanes |
Filling Method | 1. Volumetric cup; 2. Weigher; |
Capacity | Max.50 cycles/min |
Sachet size | L: 50-180mm; W: 17-65mm |
Film width & Thickness | Max.280mm, 0.07-0.10mm |
Sealing type | Back sealing/ Stick bag |
Cutting type | 1.Straight cutting; 2.Zig zag cutting; 3.Round cutting; 4.Die-cut |
Air & Power | 0.8Mpa, 0.8m³/min, 3.5kw |
Dimension & weight | 1385*918*2005mm;350kg |
| BOXING MACHINE | |
Model | LD200ZH |
Paper type | 250-400g/²(Boxes need come with pre-fold over) |
Capacity | 30-60 boxes/min |
Box type | Gusseted tongue type; Glue spray type |
Count way | Fixed number type; Numerable type; Manipulator counting |
Boxing way | Orderly type; Unorderly type |
Air & Power | 0.5-0.8Mpa, 0.3m³/min, 220V, 50/60HZ, 2.0KW |
Workflow | Box open - Bag packing - Check weigher - Counting - Boxing- Fold ears - Fold page - Gusseted tongue/Glue spray - Finish |
After receiving your inquiry,We will send you the quotation as soon as possible.
