Automatic Double Head Protein Powder Bottle Filling Line Machine

Application:
This powder filling line is suitable for protein powder, milk powder,  health powder, medical powder, nutrition powder, monosodium glutamate, solid beverage, icing sugar, dextrose, feed, coffee, solid medicament, etc.

Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packaging Exambers:

1. Full frame SS304 easy clean.

2. Air Blow Ion cleaning for dust removed from the empty bottle no need to dry the machine.

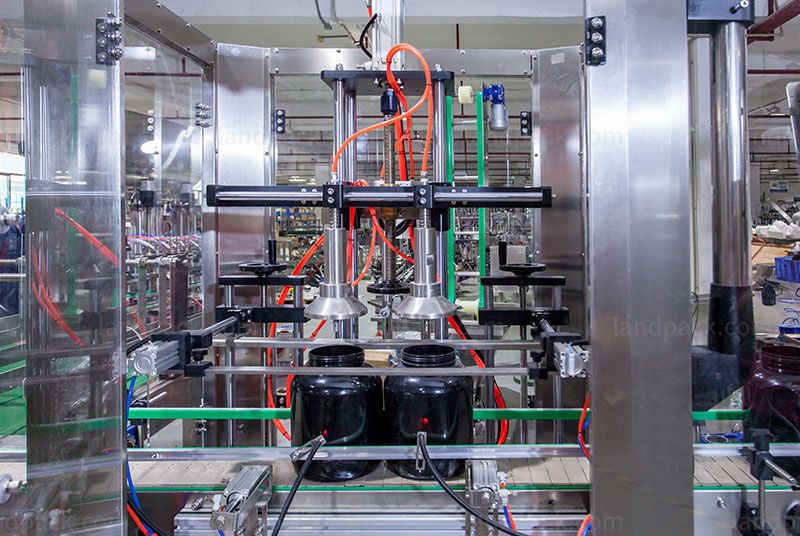

3. Double Head Filler: Main Filling and refilling to confirm high precision filling.

4. Servo motor and servo controls the auger measuring.

5. Dusty Proof Filling nozzle function to keep easy clean.

6. Built-in Weighing filling function and also the check weigher function keep filling accuracy.

7. Eliminated function, if the container less grams or over grams will be delivered on the other collection conveyor side.

8. Panasonic PLC+Weiwview touch screen is easy to operate.

9. Linear Type conveyor higher speed.

10. Dusty collection device.

11. Spoon feeder with vibration to feed the spoon into the big container easy to drop design.

12. Pressing Spoon Device to keep the spoon inside of the container easy for the capping part.

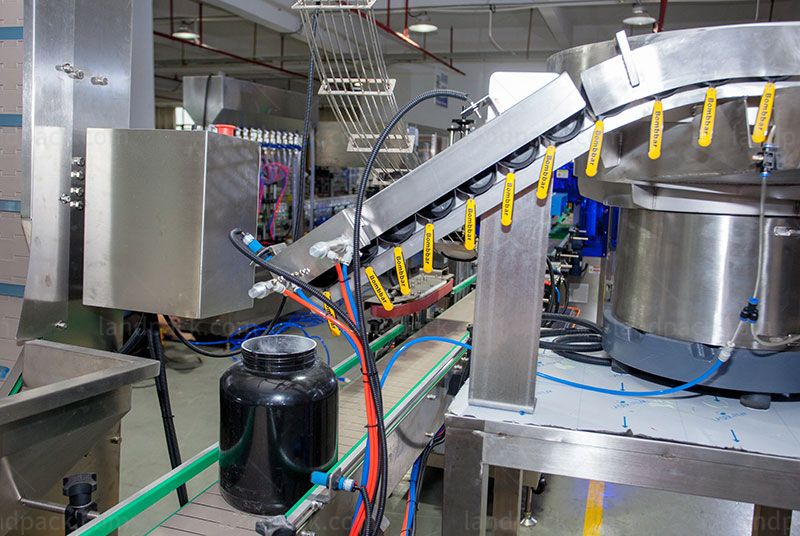

13. 200L Cap Lifter for feeding the cap easier and faster sensor for the cap no lids no capping.

14. Servo motor controlled capping machine with press capping system makes the capping more tightly.

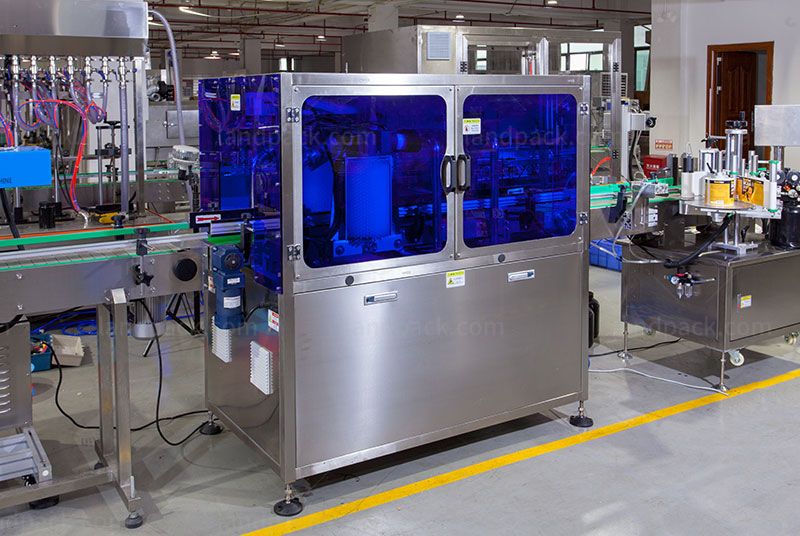

15. Foil sealing machine to keep the powder not easy to wet and prevent air from entering the container and keeping the fresh off the powder.

16. Can body cleaning machine with brush rollers and wind knives, can be cleaned by sweeping blowing, and sucking in all directions.

17. A round bottle labeling machine can be suitable for small and bigger round bottle labeling customized for end customers.

18. With Ribbon date printer can print the batch number and lot. EXp max 3 lines on the stick labels easy to track the production.

19. Finished powder bottle collection table for manual work efficiency.

20. All Line conveyor belt is customized by 200mm suitable for small and big bottles to go through the line.

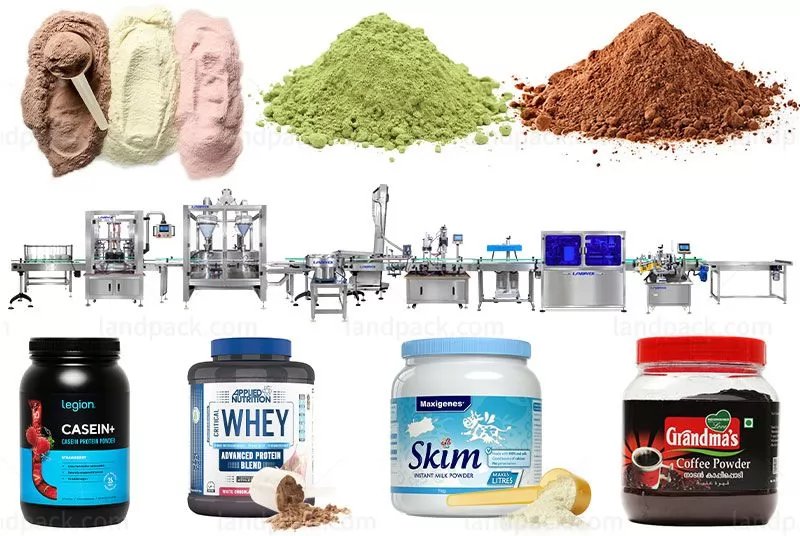

Workflow:

1. Belt Bottle Feeder.

2. Double Head Air Blow Ion Cleaning Machine.

3. Auger Feeder.

4. Double Head Weighing Filling Machine.

5. Spoon Feeder.

6. Press Spoon Device.

7. Cap Lifter for feeding the cap.

8. Servo Capping Machine.

9. Foil Sealing Machine.

10. Bottle Cleaning Machine.

11. Round Bottle Labeling Machine.

12. Finished Bottle Collector.
