Application:
Automatic Protein Collagen Powder Stick Bag Packing Packaging Cartoning Machine Line is suitable for many kinds of powder products, such as flour, milk powder, coffee powder, health powder, medicine powder, glucose, medical powder, nutrition powder, etc.
Packaging Line Composition:

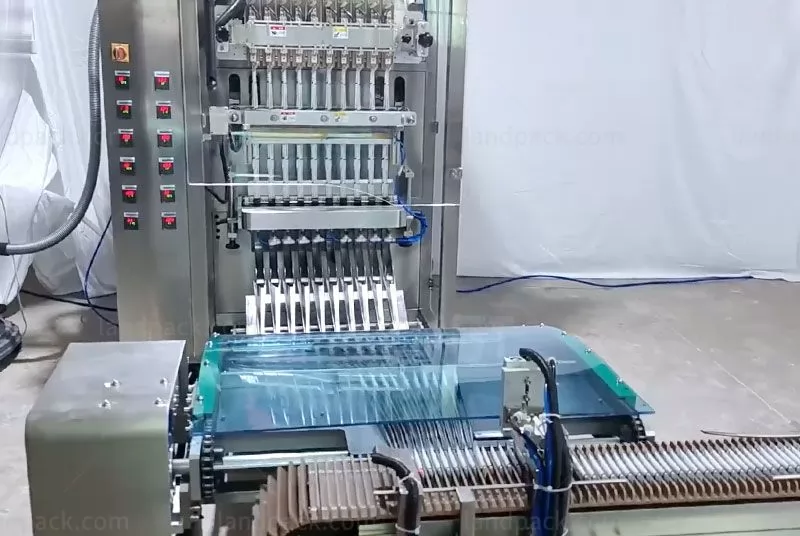

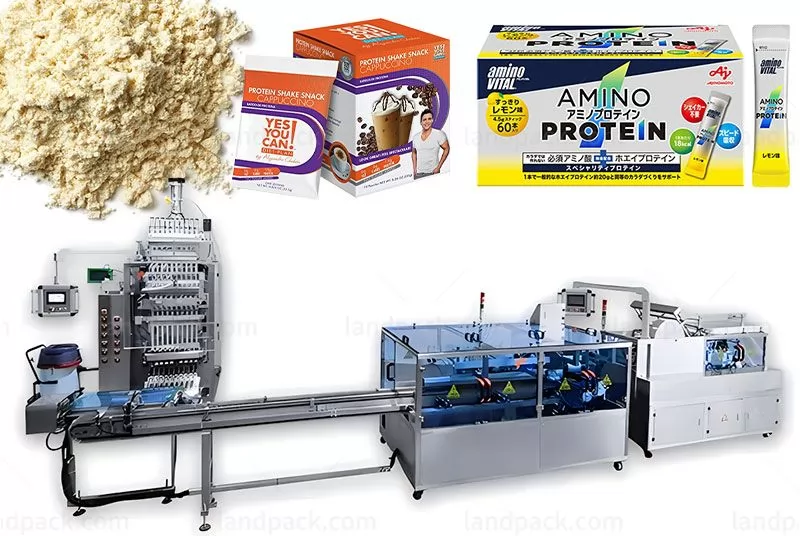

This packaging and boxing system consists of LD-560BK Multi-lane powder and fine granule stick pack packaging machine, a sorting bag equipment and LD200ZH boxing machine. It can realize stick packed packaging into a box.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Automatically complete all tasks such as measurement, bag making, filling, sealing, batch number printing, cutting, counting and cartoning.

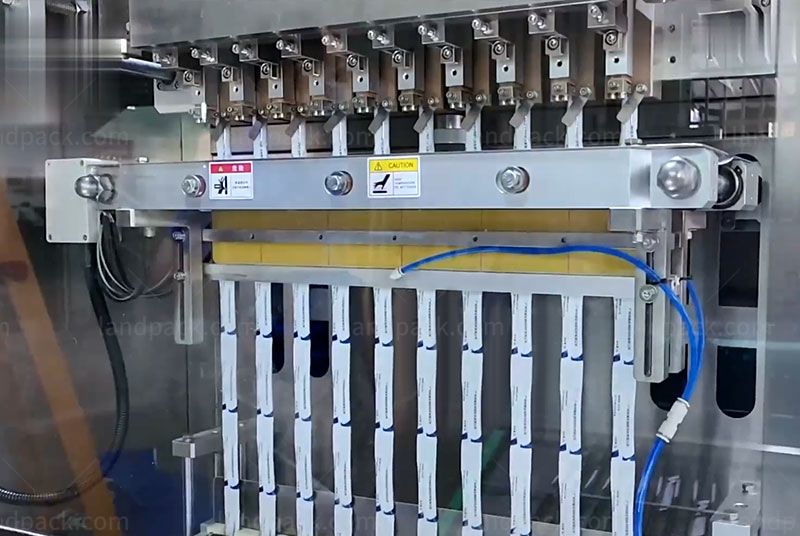

2. Automatic slitting film system, multi-line row and bag sealing at the same time.
3. The contact part of the box and material is made of stainless steel, which meets the requirements of medicines and food production.
4. The equipment is equipped with casters for easy handling and movement.
5. Automatic alarm protection, saving materials, and no wasting film.
| MULTI-LANE STICK PACK GRANULE PACKAGING MACHINE | |
Model | LD560BK |
Lane number | 3-10 Lanes |

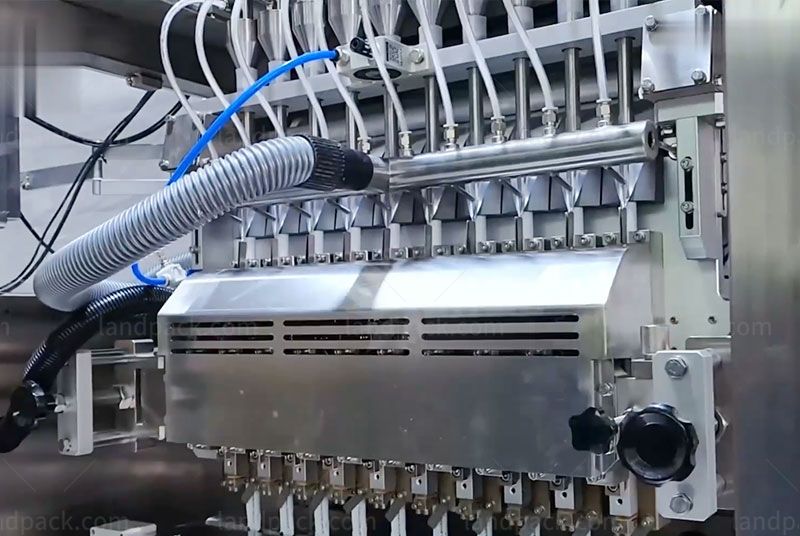

Filling Method | 1. Long auger; 2. Short auger; 3. Short auger with cup |
Capacity | Max.40 cycles/min |
Sachet size | L: 50-180mm; W: 20-90mm |
Film width & Thickness | Max.560mm, 0.07-0.10mm |
Sealing type | Back sealing/ Stick bag |
Cutting type | 1.Straight cutting; 2.Zig zag cutting; 3.Round cutting; 4.Die-cut |
Air & Power | 0.8Mpa, 0.8m³/min, 5.5kw |
Dimension & weight | 1685*1300*2005mm; 550kg |
| BOXING MACHINE | |
Model | LD200ZH |
Paper type | 250-400g/²(Boxes need come with pre-fold over) |
Capacity | 30-60 boxes/min |
Box type | Gusseted tongue type; Glue spray type |
Count way | Fixed number type; Numerable type; Manipulator counting |
Boxing way | Orderly type; Unorderly type |
Air & Power | 0.5-0.8Mpa, 0.3m³/min, 220V, 50/60HZ, 2.0KW |
Workflow | Box open - Bag packing - Check weigher - Counting - Boxing- Fold ears - Fold page - Gusseted tongue/Glue spray - Finish |
After receiving your inquiry,We will send you the quotation as soon as possible.
