Application:
Automatic multi track powder stick packing cartoning machine is suitable for many kinds of powder products, such as protein powder, health powder, collagen powder, medicine powder, flour, milk powder, coffee powder, glucose, medical powder, nutrition powder, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Examber:
1. Brand PLC Control with Automatic Counting: The adoption of brand PLC control ensures stable machine operation, while automatic counting enhances efficiency and ease of maintenance.
2. Stainless Steel Components for Corrosion Resistance: The main components are made of stainless steel, making them resistant to corrosion and suitable for various workshop environments.
3. Modular Design for Customization: The machine’s module structure allows customization to meet specific customer needs.
4. Servo Motor Control for Precision and Adjustability: Key parts are controlled by servo motors, ensuring accurate performance and convenient adjustments.
5. Hidden Heat and Moving Parts: The heat-generating components and moving parts are discreetly housed within a protective cover, enhancing safety.
6. Humanized Installation and Maintenance: The equipment is easy to install, disassemble, and maintain, thanks to its thoughtful design.
7. Efficient Film Usage and Material Savings: By minimizing film waste, this equipment optimizes material usage during the packaging process, contributing to cost savings.

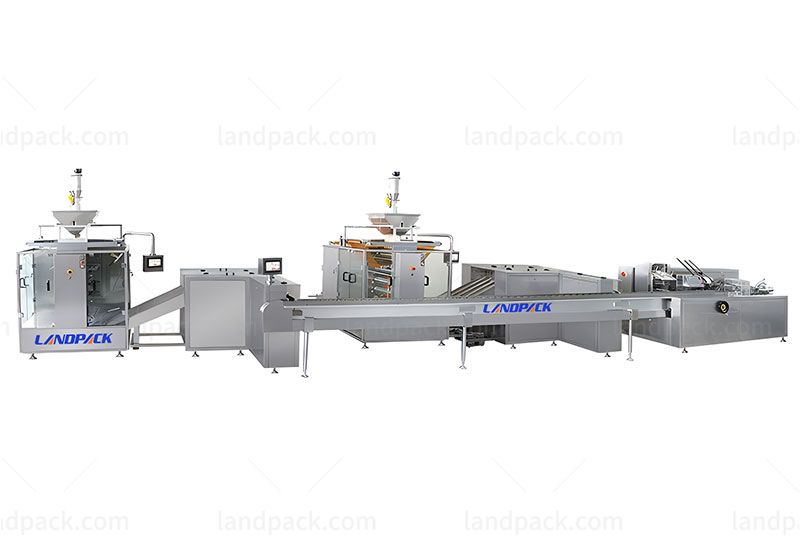

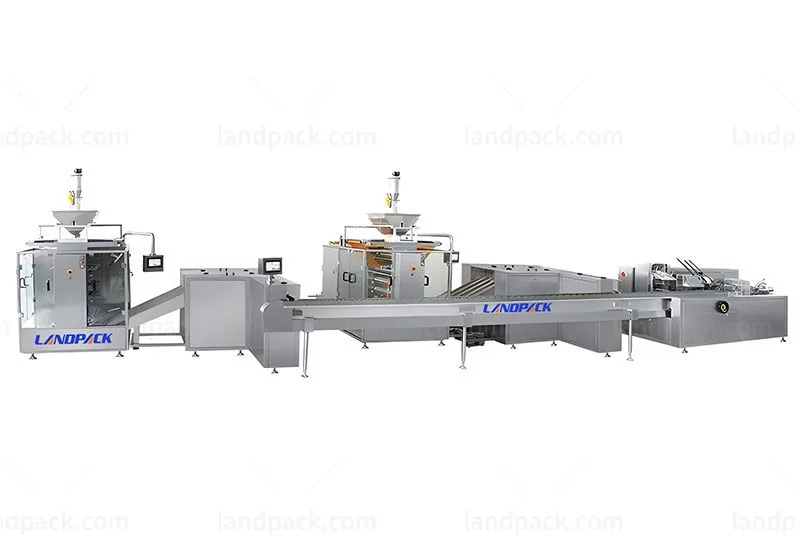

| Multilane Packing Machine | |
| Model | LD-480Y-2 |
| Pouch Length | 50-120 (adjustable) |
| Pouch Width | 50-105 mm |
| Packing Speed | 60 time/min(depend by pouch size & material) |
| Filling Capacity | 0.5-50ml |
| Application Film | PET/ AL /PE, PET/PE, NY/AL/PE, NY/PE |
| Max Film Width | 900mm |
| Max Film Diameter | φ300mm |
| Film Core Diameter | φ75mm |
| Electric Source | 380v, 50hz (do as customer's request) |
| Total Powder | 15kw |
| Overall Dimension | 2200*1700*2250mm(L*W*H) |
| Machine Weight | 1500 kg |
| Packaging size | 1650*1500*2200mm(L*W*H) |
| Cartoning Machine Parameters | |
| Encasing Speed | 30-100 cartons/min |
| Carton - Quality Requirement | 250-350 g/m³ (Base on sachet or pouch size) |
| Carton - Dimension Range (L*W*H) | (70-180)mm*(35*120)mm*(14-50)mm |
| Leaflet - Quality Requirement | 60-70 g/㎡ |
| Leaflet - Unfolded leaflet specification | (80-250)mm*(90-170)mm |
| Leaflet - Fold range | 1-4 fold |
| Compressed air - Working pressure | ≥0.6Mpa |
| Compressed air - Air consumption | 200-240 L/min |
| Power supply | 220V, 50Hz |
| Motor supply | 1.1 KW |
| Machine dimension (L*W*H) | 3100*1100*1550mm |
| Machine weight | about 1400kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
