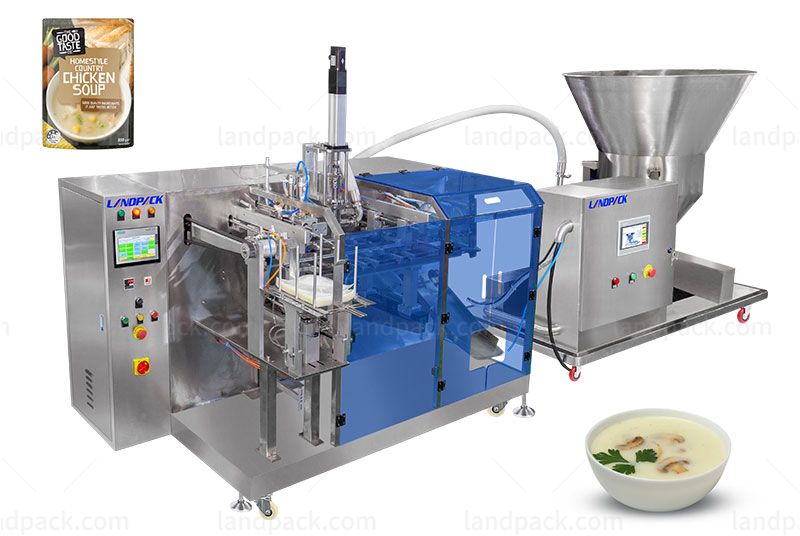

Automatic Minced Meat Tuna Fishes Paste Retort Pouch Bag Packing Machine

  • Application
  • Description
  • Parameter
  • Video

Application:
Perfect for the seafood and meat industries, our retort pouch machine is ideal for packing shrimp, prawns, fish, chicken, minced meat, tuna, and fish paste. Ensures safe, high-quality packaging with extended freshness for heat-processed products.

Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:    retort packaging equipment

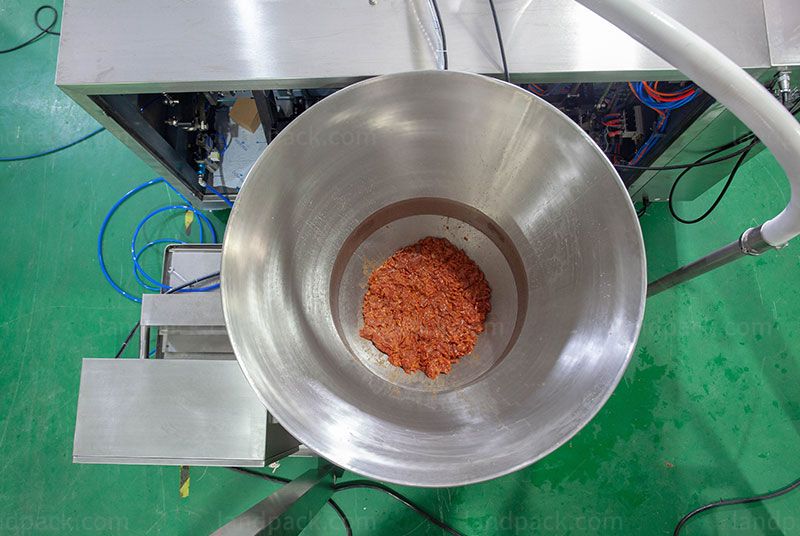

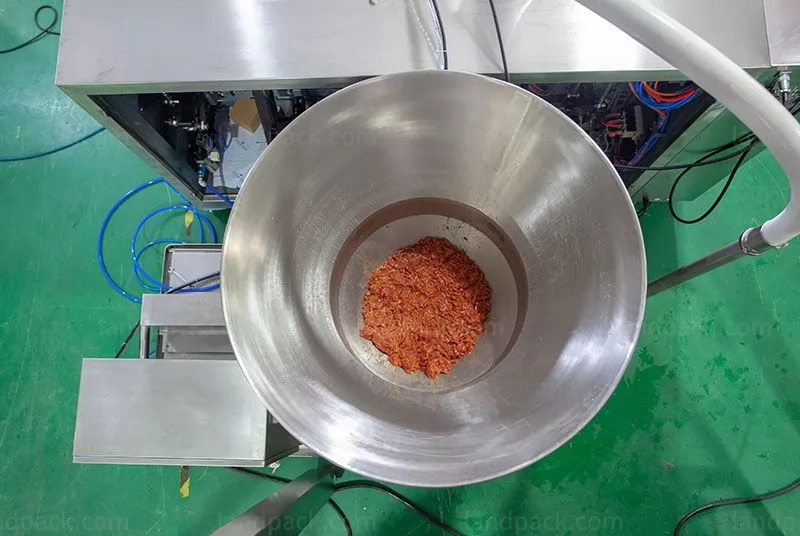

1. Large Capacity Storage Hopper: Designed for high-output enterprises, the large storage hopper supports continuous, high-volume production.

2. Servo Rotor Pump Filling System: Ideal for packaging fillings and thick sauces, ensuring smooth and accurate filling for viscous materials.

3. Compact Design: The space-saving layout allows for convenient use and easy integration into various production environments.

Workflow:
1. Large material storage hopper
2. Product measure pump
3. Feeding bag device
4. Open bag device
5. Filling material into bag
6. Sealing bag
7. Output the finished products

The Main Technical Parameters
Model
LDSP-160A
Packing material
Retort pouch, 3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc
size
W: 80-160 mm
Filling range
20-500g
Packing speed
10-45 bags/min(speed is determined by the product filling quantity)
Average precision
≤ ±1%
Total power
2.5KW
Weight
800 KG
Main standard parts
1. Code printer 2. PLC control system 3.Bag opening device 4. Vibration device 5.Cylinder 6. Electromagnetic valve 7. Temperature
controller 8.Vacuum pump 9. Inverter 10. Output system
We can customize the suitable one for you according to your requiredment.
Just Tell us : Weight or Bag Size required.


Parts of Machine
Parts
PLC
Touch Screen
Frequency Conveter
Vacuum Pump
Printer
Main Motor
emperature Controllor
Brand
SIEMENS
SIEMENS
TOSHIBA
ORION
SHENG LONG
EVERGEAR
AISET
Oringin
Germany
Germany
Japan
Japan
China
China
China
Can replace parts as needed
Work Process
Safety Measures
1.no bag feeding, no filling and no sealing.
2.no bag opening/open error, no filling and no sealing
3.no filling, no sealing
Product
Process
Station 1 Bag Feeding
Station 2 Date Printing (option)and Open zipper bag
Station 3 Open bag
Station 4 Filling Materials
Station 5,6,7 :Vibration,Air Removal,Nitrogen Filling,Close Zipper,Hole Punching,Heat Sealing
Remark:No.5.6.7.Stations are based on customer requirements for adjusting.
Station 8 Heat Sealing and Product Output
Stations are based on customer requirements for adjusting.
