Application:
Designed for vacuum packing meatballs, hotpot balls, fish balls, cuttlefish balls, and other foods requiring vacuum packaging in retort pouches, ensuring freshness and extended shelf life.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:
1. Compact and Powerful Design: The main unit is compact yet powerful, serving as an excellent production assistant.
2. High Vacuum Level: Achieves a high vacuum degree, enhancing product shelf life and quality.
3. Adjustable Bag Slot: Offers a wide range of adjustability, making it suitable for various bag specifications.
4. Horizontal Bag Loading: Designed with compatibility in mind, accommodating different bag types and thicknesses for worry-free production.
5. Versatile Feeding Options: Can be paired with electronic scales, liquid pumps, or powder dispensers, catering to diverse packaging needs for different material forms.
6. Flexible Packaging for Food Items: Ideal for packaging ready-to-eat foods, meatballs, and snacks, ensuring vacuum sealing extends shelf life while preserving flavor and texture.

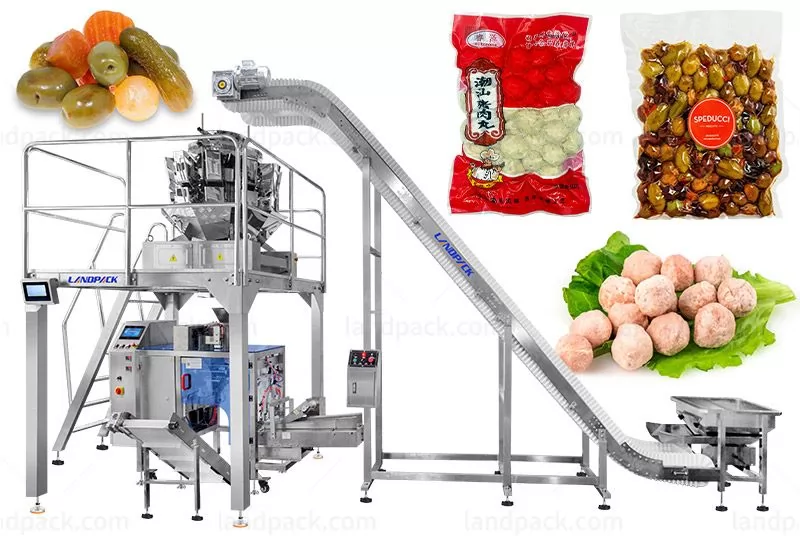

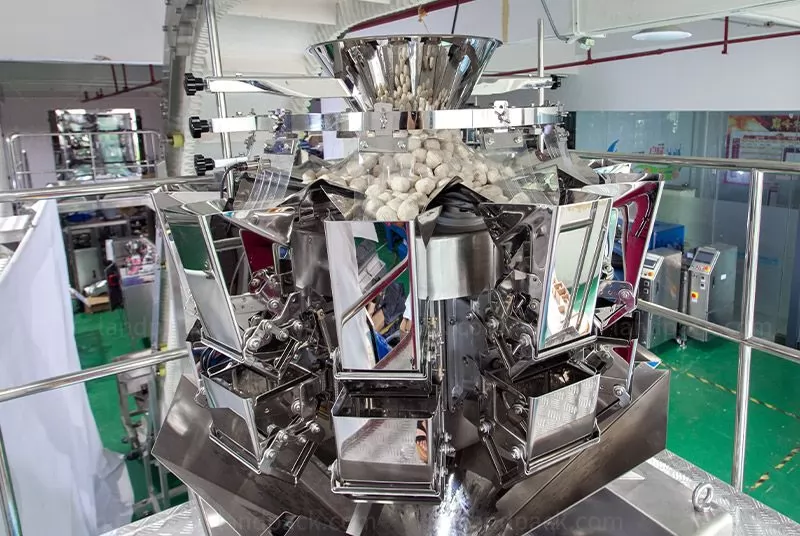

7. Integrated Vacuum Packaging System: When combined with elevators and multi-head scales, it ensures precise measurements, boosts efficiency, and increases automation levels in the packaging process.
Model | LG1-430A |
Bag Material | Multilayer Composite Premade Bag (e.g.: PET/PE) |
Pouch Type | 3 Side Seal Bag, Stand-up Bag, Vacuum pouch |
Upgradable Bag Type | Gusset Bag, Zipper Bag, Flat Bottom Pouch (Need additional purchase of functional device) |
Capacity | 0-15 bags/min |
Bag Size | Width: 80-300mm Length: 100-430mm |
Sealing Type | Straight grain, the pitch is 1mm (Optional reticulate) |
Sealing Width | 10mm (5--20mm can be customized) |
Voltage | 220V, Single-phase, 50/60HZ, 1.2KW |
Air Pressure | 0.65Mpa |
Air Consumption | 0.3m³/min (Standard machine, no additional function) |
Dimension | 1770*600*1360mm(L*W*H) |
Packing Dimension | 1860*710*1650mm (Export non-fumigation wooden case) |
After receiving your inquiry,We will send you the quotation as soon as possible.
