Application:

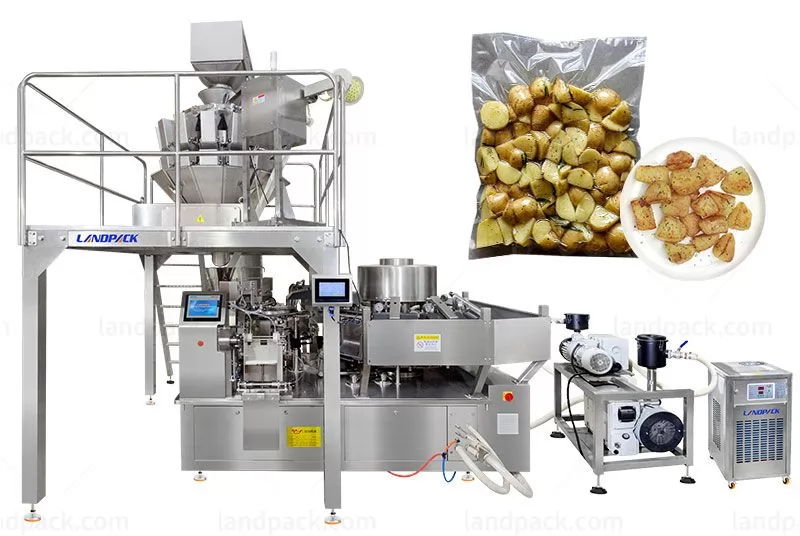

The vacuum retort pouch packaging machine is ideal for industries requiring both vacuum sealing and high-temperature sterilization. It is widely used in the food sector for packaging ready-to-eat meals, sauces, soups, and preserved meats, ensuring extended shelf life. In the pet food industry, it is perfect for vacuum-packing wet food.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristic
1. High Speed Operation: Capable of reaching speeds of 40-60 bags per minute, ensuring efficient production.
2. Wide Application Range: Can measure and package products weighing between 100g to 2kg, with the target weight easily set through the touch screen interface.
3. High Vacuum Degree: The machine ensures a high level of vacuum sealing, effectively extending the freshness and shelf life of the product.
4. Production Line Integration: Can be seamlessly connected with other production equipment, improving workflow and automation.
5. Absorber Feeder: Equipped with an absorber feeder to further enhance product freshness by maintaining the vacuum.
Workflow:

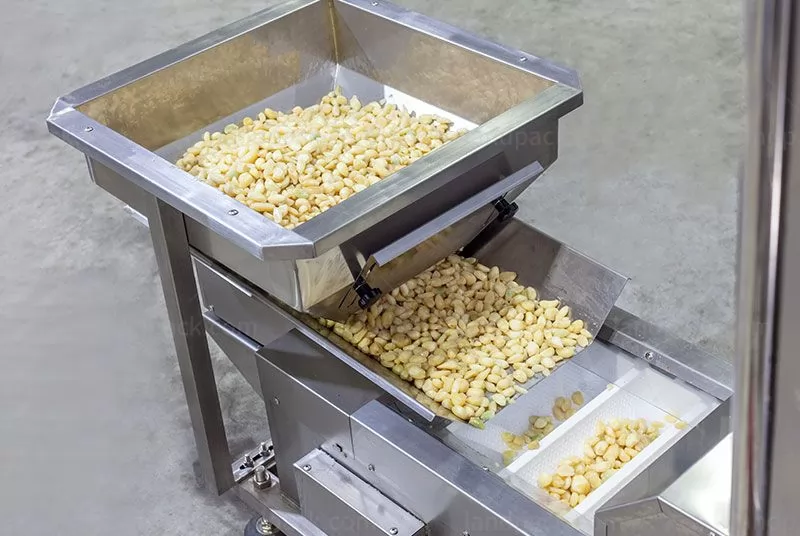

1. Z-elevator delivers the materials from ground to weigher
2. Automatically absorber feeder

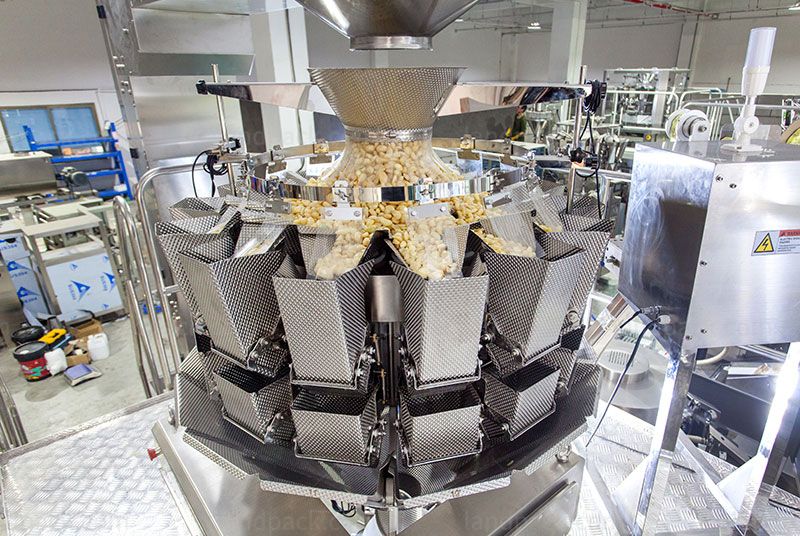

3. 14-head 2.5L weigher to measure the weight
4. Automatically bag feeding
5. Automatically bag opening
6. Automatically filling and bag bottom opening
7. Press product device
8. Bag mouth cleaning
9. Exhaust air
10. Take the bags to vacuum chamber
11. Output
12. Finished product conveyor delivers the product to outside
| The Main Technical Parameters | |
| Model | LD-8200V |
| Bag Size | Width:70-120mm/120-200mm, Length:80-160mm/150-300mm |
| Filling Volume | 10-500g (Depending on type of products) |
| Capacity | 30-100bags/min (The speed depends on type of products and packaging material used)The highest can be 100 packs / minuteZipper Bag The heghest can be 40packs/minute |
| Package Accuracy | Error≤±1% |
| Total Power | 2.5KW/5.5kw (220V/380V,3PH,50HZ) |
| Demension | 2100*1400*1700 mm/2600*1900*1700(Length*Width*Height) |
| Weight | 1600KGS/3000kgs |
| Compress Air Requirement | ≥0.8m³/min supply by user |
| Pouch Type | All type of heat sealable performed side seal bags, block bottom bags, zip-lock recloseable bags, stand-up pouch with or without spout,Portable bag, zipper bag, hand luggage, edging bag 4 sides, edging bag 3 sides, paper bagetc. |
| Application Product | 1. Any product that can pack in bag, such as fish, poultry, meat, grains and other food items. 2. Solid species: candy, peanut, green bean, pistachio, crystal candy, brown sugar, cookie, cake, daily commodities, cooked food, pickles, puffed food, etc. 3. Granule species: grain, refined monosodium glutamate, granular drug, capsule, seed, condiment, granulated sugar, chicken essence, melon seeds, nuts, pesticide, fertilizer, feed etc. 4. Liquid species: detergent, fruit juice, miller wine, soy sauce, vinegar, drinks etc. 5. Thick liquid species: chilli sauce, tomato sauce, peanut butter, jam, bean sauce etc. |
| Work Process | Station 1 Giving Bag Feed many pouches or bags in the bag magazine, our main bag magazine can move up and down, you can feed bags very easily when it moved down, and when it moved up, there are a mechanical arm with two vacuum caps will take bag up and then transmit it to the mechanical gripper on the rotary table.Station 2 Date Printing (option)Station 3 Opening BagTo open stand (flat) pouches from top and bottom with two sets vacuum caps.Station 4 Filling and consolidate 1Measured its weight or volume by scales.There are an opening detection device insertinto the open bagor pouch to expanding it and detect if it is open or not.Station 5 Filling and consolidate 2(Option)Station 6 Bufferingto make bag more straight and to prevent material out from bagStation7 Vacuum and sealingto transform to vacuum equipmentStation 8 Forming and OutputThese 8 stations can change its working function as customized design |
