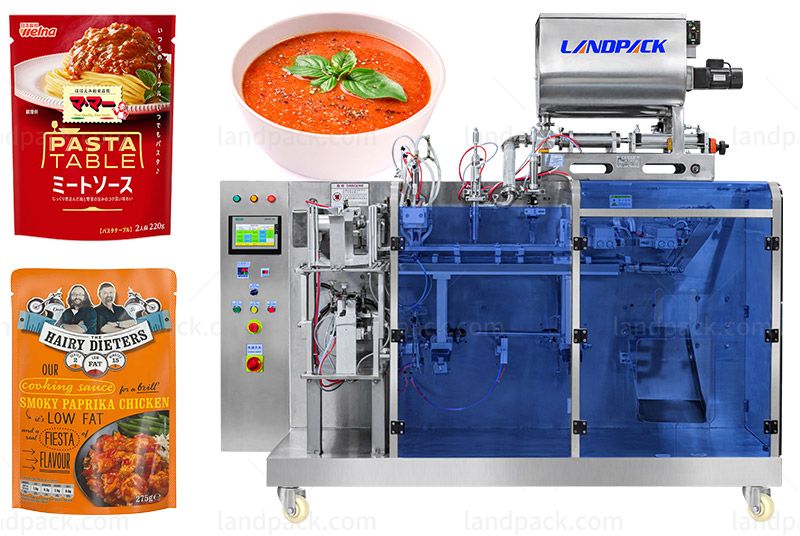

Application:
This machine is specifically designed for the automatic packing of liquids and semi-liquids in retort pouches, making it suitable for industries requiring high-temperature sterilization. It is ideal for packaging products such as sauces (soy sauce, chili sauce), rice vinegar, fruit juices, beverages, tomato paste, peanut butter, and jams. Additionally, it can handle ready-to-eat meals, soups, broths, stews, and pet food, ensuring safe and durable packaging for food products that undergo retort processing. Perfect for the food industry, this machine meets the strict demands of shelf-stable products in retort pouches.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:
1. Sauce Retort Pouch Packing Machine: Ideal for packaging various types of sauces, soups, and dipping sauces, offering versatility for different liquid-based products.
2. Double Sealing: Ensures a tighter, more secure seal, enhancing the appearance and preventing leakage.
3. Extra-Large Filling Tube: Suitable for both sticky and non-sticky sauces, accommodating a wide range of product consistencies.
4. Premade Bag Packaging: Elevates the product's presentation, providing a higher-end feel and adding more value to the packaging.
Workflow:

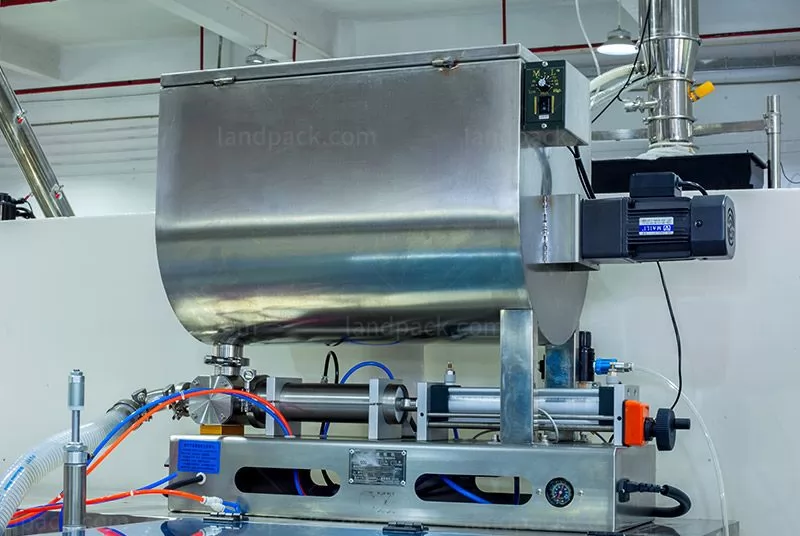

1. Horizontal storage tank

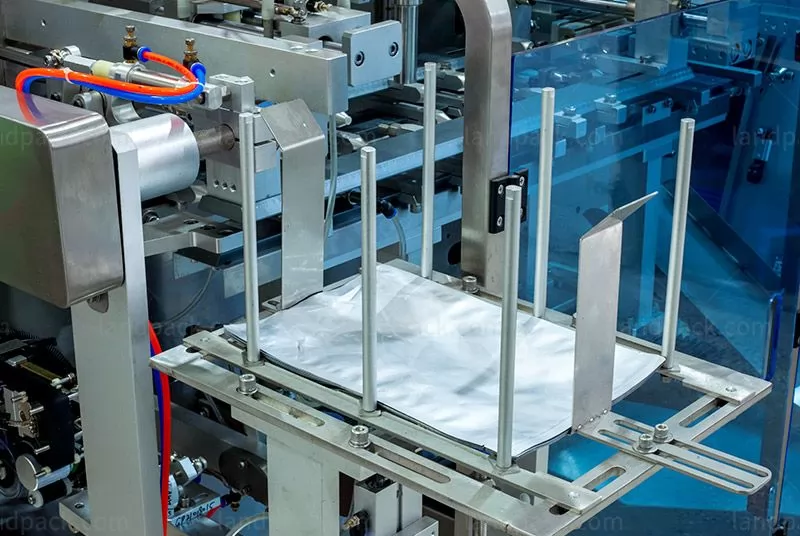

2. Vertical bag feeder
3. Ribbon code print
4. Open bag
5. Filling
6. Hot sealing
7. Output
| Model | LDSP-160 | LDSP-160Y | LDSP-210 | LDSP-260 |
| Bag Type | 3-Side, 4-Side Sealing Bag, Doypack, Box Pouch, Zipper Pouch, Stand Up Pouch, Stand Up Pouch With Hole, Kraft Paper Bag, Side Gusset Bag, etc. | |||
| Bag Size | 110-230mm(L); 80-160mm(W) | 70-100mm(L); 110-230(W) | 100-210mm(L); 110-320mm(W) | 100-260mm(L); 110-320mm(W) |
| Filling range | 10g-100g | 10g-100g | 10g-1kg | 10g-3kg |
| Packing speed | 20-45 bags/min | 25-50 bags/min | 20-50 bags/min | 20-50 bags/min |
| Machine weight | 800 kg | 800 kg | 900 kg | 1000 kg |
| Total power | 2 KW | 2 KW | 2 KW | 2 KW |
| Workflow | 1. Giving bag, 2. Pick up the bag(coding), 3. Open the bag up and down, 4. Filling, 5. Heating sealing, 6. Output of product | |||
| Dimensions | 1750*1285*1360mm(L*W*H) | 2140*1366 *1360mm(L*W*H) | 2140*1366 *1360mm(L*W*H) | |
| Collocation | Screw metering, screw elevator | |||
After receiving your inquiry,We will send you the quotation as soon as possible.
