Application:
Optimize your packaging process with our retort pouch machine, which is perfect for the meat sauce, Bolognese sauce, curry sauce, salsa, Alfredo sauce, teriyaki sauce, and Thai coconut curry sauce industries. Ideal for sealing and sterilizing in retort pouches, ensuring extended shelf life and flavor retention.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Exambers:
1. User-Friendly Operation: Designed for easy handling and operation, ensuring a smooth user experience.
2. Automatic Checking System: Prevents errors such as missing pouches, open pouches, or no fills and no seals, reducing waste effectively.
3. Safety Device: The machine automatically stops in case of abnormal air pressure, with a heater disconnection alarm for added safety.

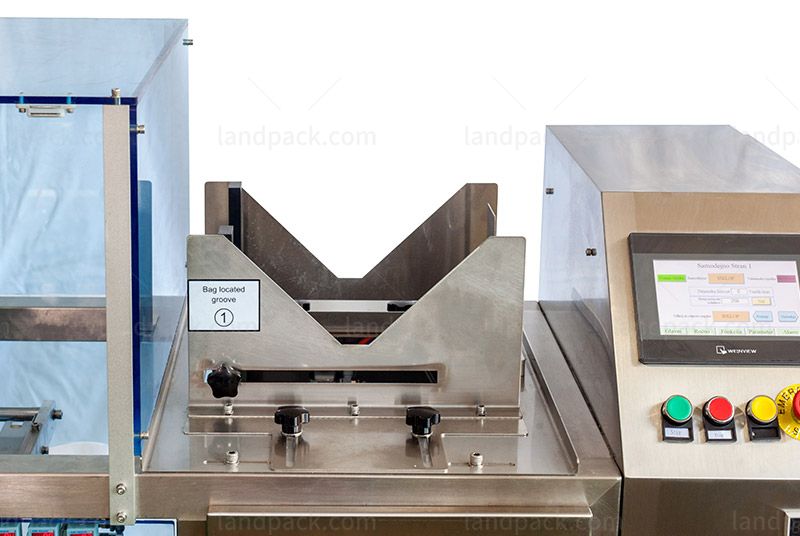

4. Adjustable Bag Width: Allows for customization to accommodate various bag sizes, enhancing versatility.
5. Glass Safety Door: The machine halts operation when the door is opened, ensuring the safety of operators during maintenance or adjustments.
6. Minimal Material Loss: High-quality sealing minimizes packing material waste, enhancing product specifications and presentation.

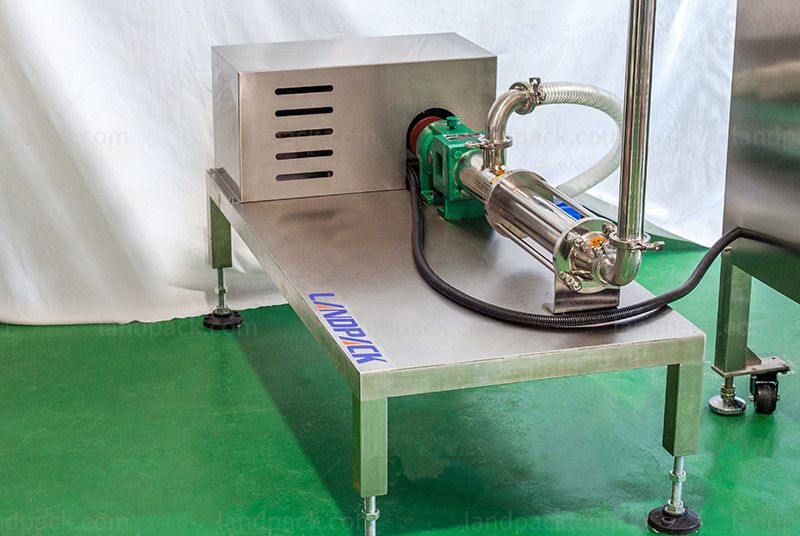

7. Versatile Feeding Hoppers: Suitable for a wide range of products, including solids, liquids, thick liquids, and powders.
8. Wide Range of Bag Materials: Compatible with a wide variety of bag materials, allowing for flexibility in packaging solutions.
| Model | LDB-200 | LDB-300 | LDB-430 |
| Bag Material | Multi-layer Composite Premade Bag（e.g.: PET/PE） | ||
| Premade bag type | 3-sides sealing bag, stand-up bag） | ||
| Upgraded Bag Type | （Need additional purchase of functional device） | Gusset Bag, Zipper Bag, box bag (Need additional purchase of functional device | |
| Bag size | 70mm≤W≤150mm | 80mm≤W≤300mm | 80mm≤W≤300mm |
| 70mm≤L≤150mm | 100mm≤L≤300mm | 100mm≤L≤430mm | |
| Speed | 0-60 bags/min | 0-15 bags/min | |
| Sealing Type | Straight grain, pitch is 1mm (Optional reticulate) | ||
| Sealing Width | 10mm（5-20mm) can be customized | ||
| Voltage | 220V, Single-phase, 50/60HZ, 1.2KW | ||
| Air Pressure | 0.65Mpa | ||
| Air Consumption | Standard machine, no additional function | ||
| Body Dimension | 1770*600*1230mm | 1770*600*1360mm | |
| Packing Dimension | 1860*710*1550mm | 1860*710*1650mm | |
| Export non-fumigation wooden case | |||
After receiving your inquiry,We will send you the quotation as soon as possible.
