Application:

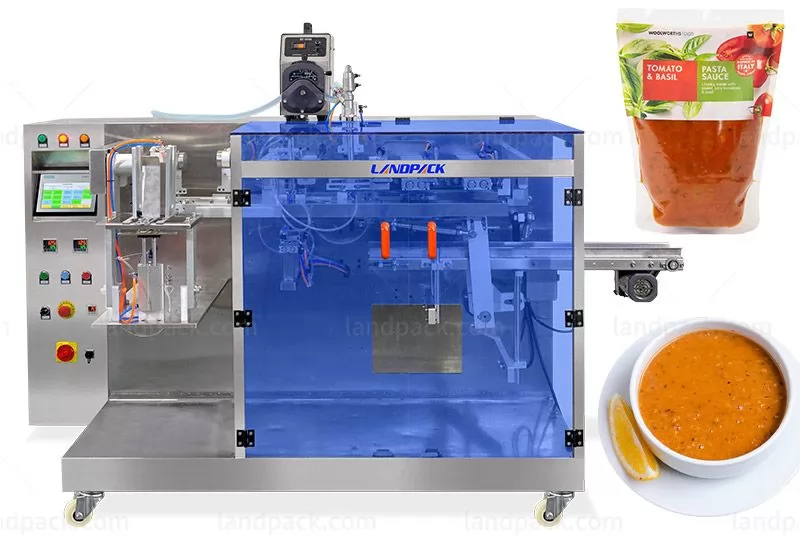

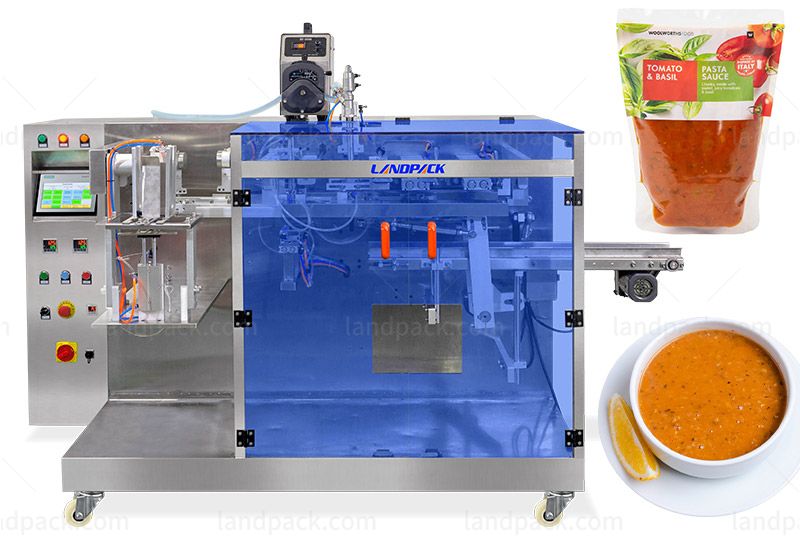

Streamline your packaging process with our retort pouch machine, tailored for the meat sauce, Bolognese sauce, curry sauce, salsa, Alfredo sauce, teriyaki sauce, and Thai coconut curry sauce sectors. Perfect for sealing and sterilizing in retort pouches, it ensures maximum flavor retention and extended shelf life.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

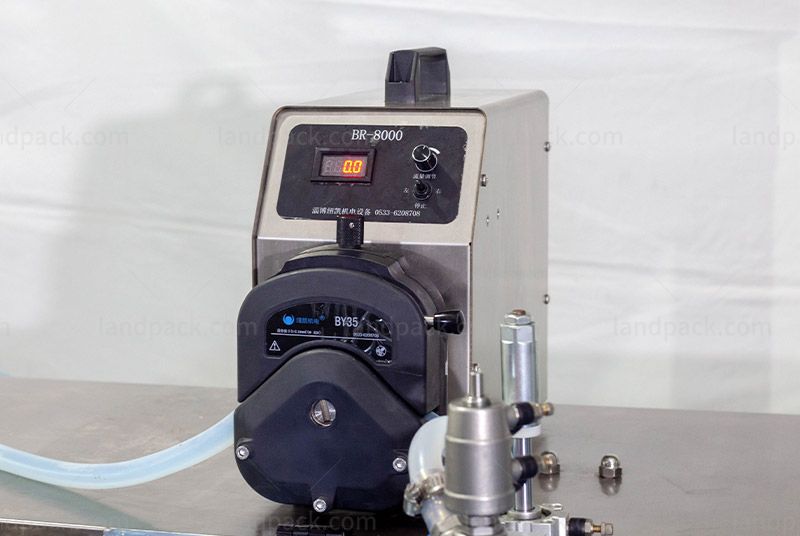

1. Equipped with Peristaltic Pump: Ensures precise measurement and dispensing for accurate filling.
2. Compact and Cost-Effective Design: The machine occupies minimal space, and its transmission components are simpler and easier to replace compared to a cam-based pouch machine.
3. Ready-to-Use Delivery: The machine is shipped fully assembled, allowing for quick setup and immediate use upon connection.
Workflow:
1. Liquid Peristaltic Pump

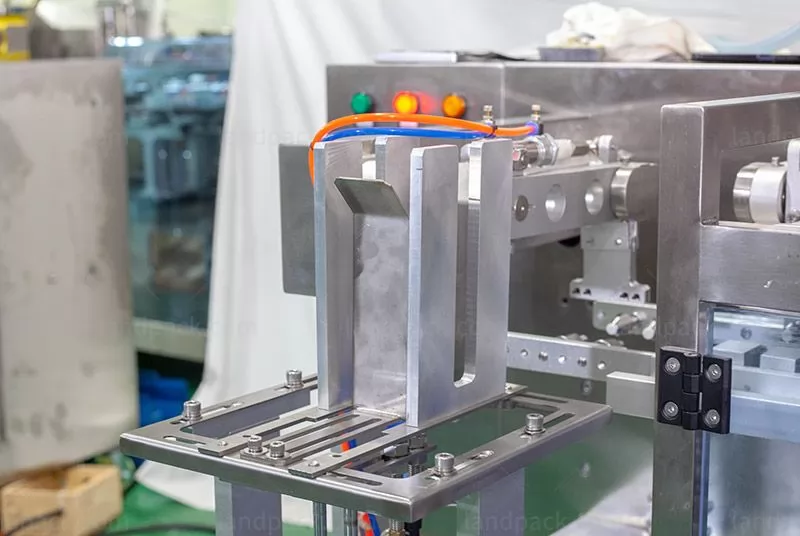

2. Feeding Bag Device

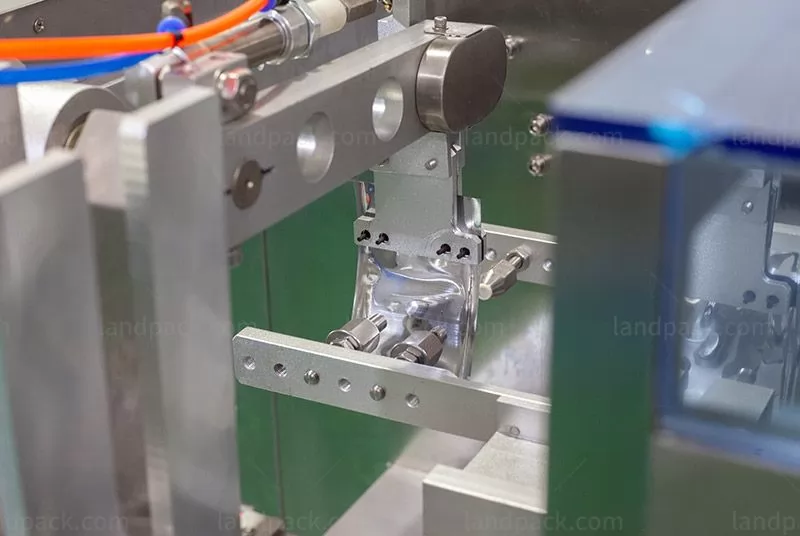

3. Open Bag Device
4. Filling Material Into Bag
5. Sealing Bag
6. Output The Finished Products
| Type | LDSP-160 | LDSP-160Y | LDSP-210 | LDSP-260 |
| Bag Type | Retort pouch, 3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc. | |||
| Bag Size | 110-230mm*80-160mm(L*W) | 70-100mm*110-230(L*W) | 100-210mm/110-320mm（L*W） | 100-260mm/110-320mm（L*W） |
| Filling Range | 10g-100g | 10g-100g | 10g-1kg | 10g-3kg |
| Packing Speed | 20-45 bags/min(speed is determined by the product filling quantity) | 25-50 bags/min(speed is determined by the product filling quantity) | 20-50 bags/min (speed is determined by the product filling quantity) | 20-50 bags/min (speed is determined by the product filling quantity) |
| Machine weight | 800KG | 800KG | 900KG | 1000KG |
| Total Power | 2.0KW | 2.0KW | 2.0KW | 2.0KW |
| Work Flow | 1. Giving bag, 2. Pick up the bag(coding), 3. Open the bag up and down, 4. Filling, 5. Heating sealing, 6. Output of product | |||
| Dimensions | 1750*1285*1360mm(L*W*H) | 2140*1366*1360mm(L*W*H) | 2140*1366*1360mm(L*W*H) | |
| Collocation | Screw metering, screw elevator | |||
After receiving your inquiry,We will send you the quotation as soon as possible.
