Application:
Suitable for automatic packing for grain and solid food, such as beans, nuts, dry fruits, candy, cereal, chocolate, biscuit, peanut, capsule, seeds, chemicals, sugar, etc.
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packing Exambers:

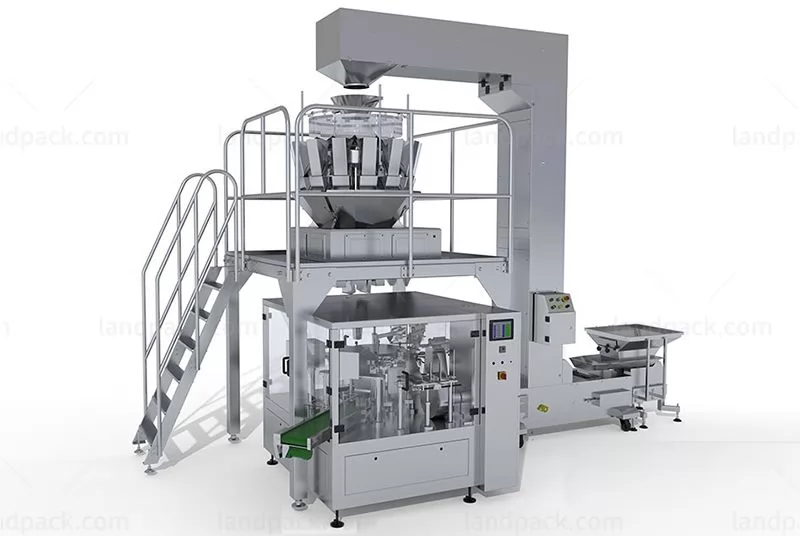

Automatic rotary packing machine adopt precision indexing device and PLC to control each action and working station to make sure the machine operates easily and does accurately.
The speed of this machine is adjusted by frequency conversion with the range, and the actual speed depends on type of products and pouch.
Automatic checking system can check bag situation, filling and sealing situation.

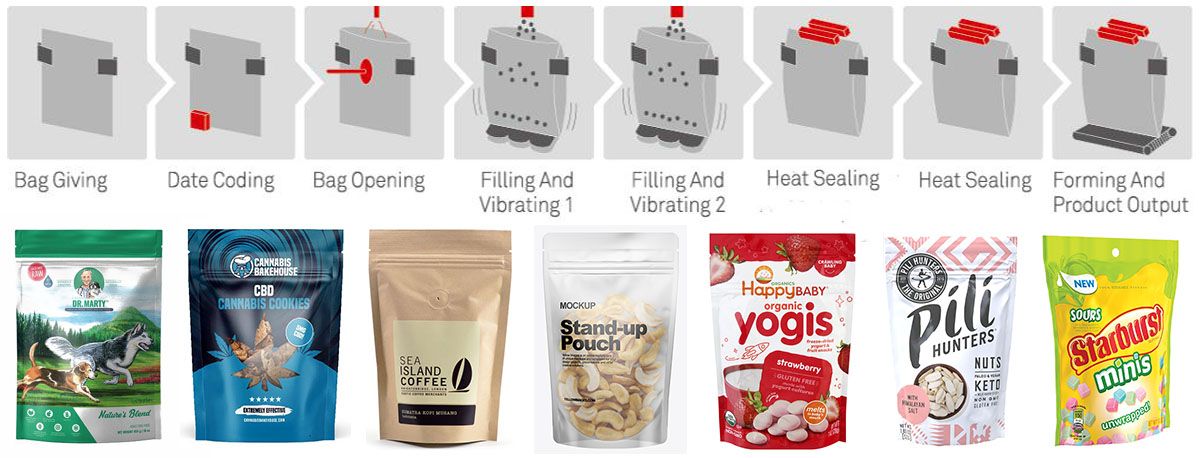

The system shows: 1.no bag feeding, no filling and no sealing; 2.no bag opening/opening error, no filling and no sealing; 3.no filling, no sealing.
| Model | LD-8200A/ 8240A/ 8300A |
| Function | Pouch Fill/Sealing Machine |
| Bag Size | W: 100-300mm L: 100-450mm |
| Filling Volume | 5-2500g (Depending on type of products) |
| Capacity | 25-60 bags/min (The speed depends on type of products and packaging material used) |
| Package Accuracy | Error≤±1% |
| Compress Air Requirement | ≥0.8m³/min supply by user |
| Weight | 2400Kg |
After receiving your inquiry,We will send you the quotation as soon as possible.
